ES-137, SAMSUNG 48H6470 LED TRAKE

LED Trake ES-137 / SAMSUNG 48H6470 (Set 12 kom)

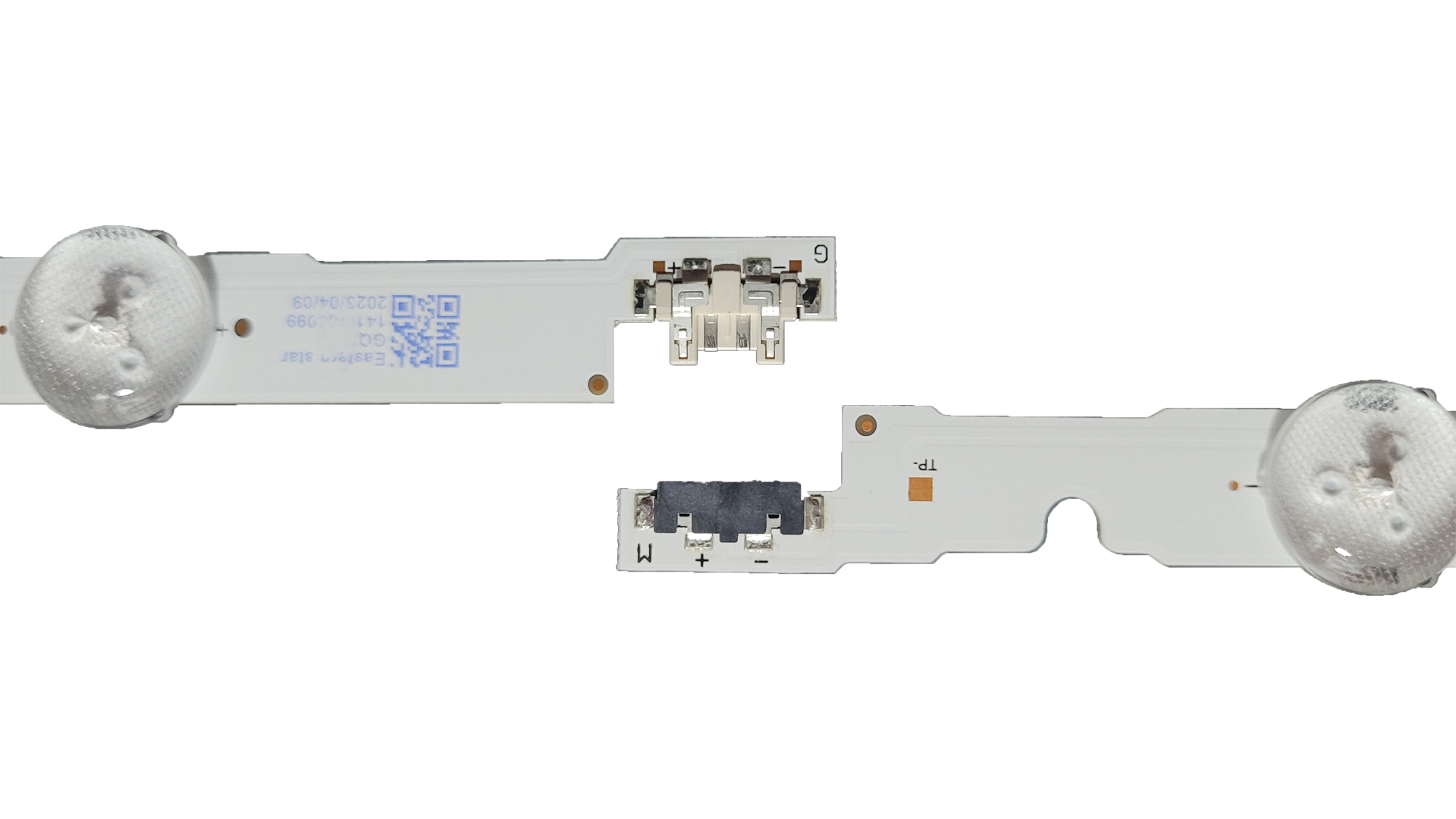

Profesionalni, kompletni set LED traka za pozadinsko osvetljenje 48" televizora brenda Samsung. Komplet sadrži ukupno 12 traka koje se ugrađuju kao 6 produženih redova (svaki red se dobija spajanjem jedne A i jedne B trake). Trake su izrađene na čvrstoj aluminijumskoj podlozi sa već nanesenom termički provodljivom dvostrano lepljivom trakom, što osigurava brzu ugradnju i maksimalno odvođenje toplote sa dioda.
Tehničke specifikacije

• Oznaka kompleta: ES-137

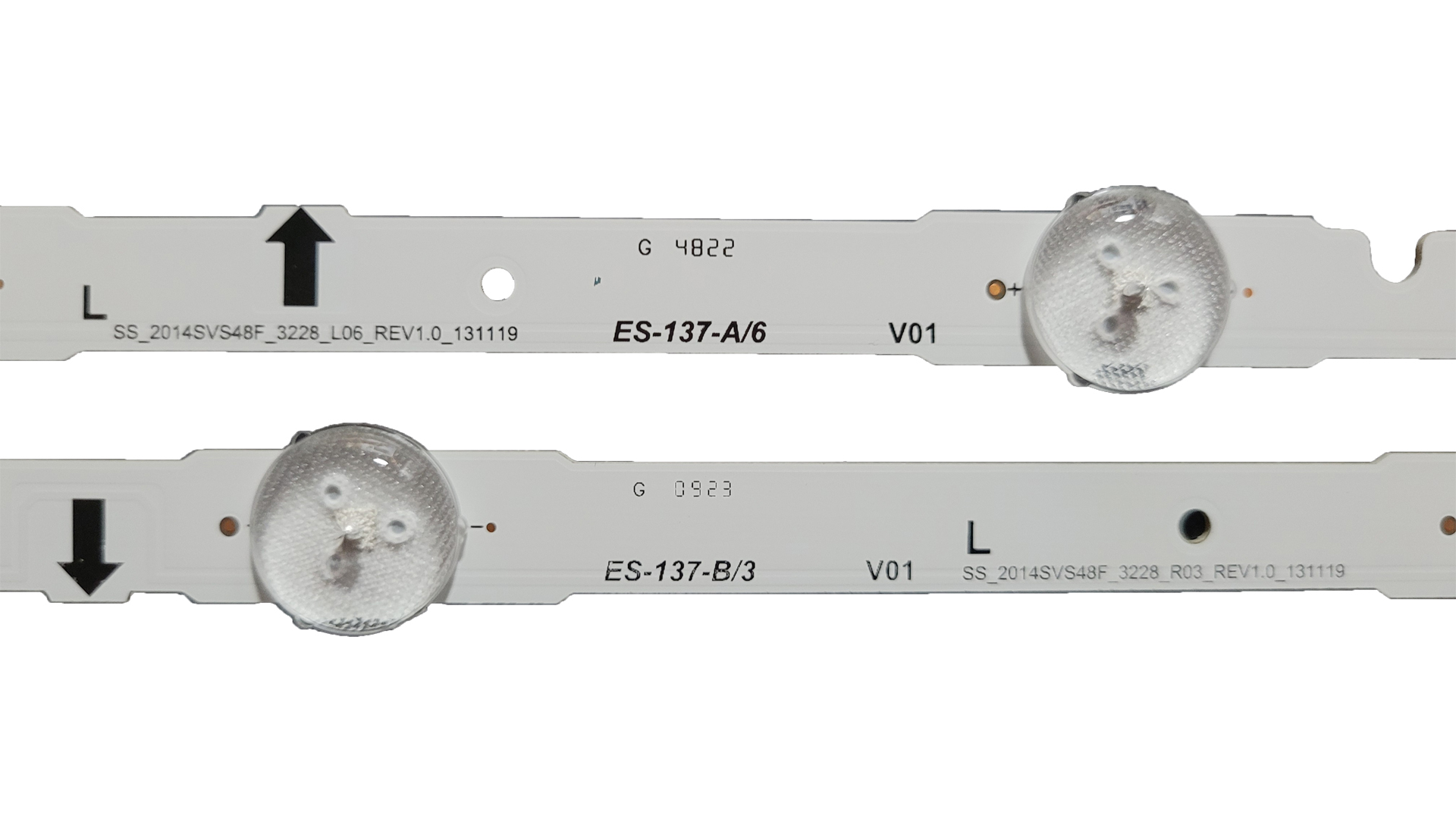

• Kodne oznake na trakama (L/R):
• Tip A (Leva): D4GE-480DCA-R3 / BN96-30453A / 2014SVS48F_3228_L06_REV.0_131119

• Tip B (Desna): D4GE-480DCB-R3 / BN96-30454A / 2014SVS48F_3228_R03_REV1.0_131119

• Broj traka u setu: 12 komada (6 $\times$ A tip + 6 $\times$ B tip)

• Broj dioda po traci: Tip A: 6 LED / Tip B: 3 LED (ukupno 9 dioda po spojenom redu)

• Ukupan broj dioda u TV-u: 54 LED

• Radni napon diode: 3V

• Dužina LED traka: Tip A: 690 mm / Tip B: 337 mm

• Tip sočiva: Okrugla

• Samolepljiva traka: Da (termo-provodljiva pozadina)

• Brend: SAMSUNG

Kompatibilnost sa panelima
Ovaj set pozadinskog osvetljenja je direktno kompatibilan sa sledećim oznakama Samsung ekrana i matrica (bez ponavljanja):

• CY-GH048BGLV2H / CYGH048BGLV2H

• CY-GJ048BGLV9H / CYGJ048BGLV9H

• CYGH048BGLV3H, CYGH048BGLV4H

• CYGH048CSLV1H, CYGH048CSLV2H, CYGH048CSLV3H, CYGH048CSLV4H, CYGH048CSLV5H, CYGH048CSLV6H, CYGH048CSLV7H, CYGH048CSLV8H

• CYGH480BGLV1H, CYGH480BGLV3H, CYGH480BGLV5H, CYGH480BGLV6H, CYGH480BGLV7H, CYGH480BGLV8H

• CYGJ048BGEV6H

• CYGJ048BGLV1H, CYGJ048BGLV2H, CYGJ048BGLV3H, CYGJ048BGLV4H, CYGJ048BGLV5H, CYGJ048BGLV6H, CYGJ048BGLV7H, CYGJ048BGLV8H

• GH048BGAB2

Podržani modeli televizora
Komplet pokriva široku paletu Samsung 48" televizora iz H, J i UN američkih serija:
H Serija

• Samsung UE48H3270 / UE48H3270SS

• Samsung UE48H5000 / UE48H5000AKX / UE48H5000AKXBT / UE48H5000AKXKZ / UE48H5000AKXMS / UE48H5000AKXRU / UE48H5000AKXUZ / UE48H5000AKXXH / UE48H5000AKXXU / UE48H5000AKXZT / UE48H5000ASXBT / UE48H5000ASXUA / UE48H5000AWXBT / UE48H5000AWXXC / UE48H5000AWXXH / UE48H5000AWXXN / UE48H5000AWXZF / UE48H5000AWXZG

• Samsung UE48H5005 / UE48H5005AKXXE

• Samsung UE48H5020 / UE48H5020AKX

• Samsung UE48H5030 / UE48H5030AKXKZ / UE48H5030AKXMS / UE48H5030AKXRU / UE48H5030AKXUZ / UE48H5030AKXXH / UE48H5030AKXXU / UE48H5030AKXZT / UE48H5030ASXBT / UE48H5030ASXUA / UE48H5030AWXBT / UE48H5030AWXXC / UE48H5030AWXXH / UE48H5030AWXXN / UE48H5030AWXZF / UE48H5030AWXZG

• Samsung UE48H5035 / UE48H5035AKXXE

• Samsung UE48H5040

• Samsung UE48H5048 / UE48H5048AKXXU / UE48H5048AWXZF

• Samsung UE48H5070 / UE48H5070ASXTK / UE48H5070ASXXH / UE48H5070ASXZG

• Samsung UE48H5080 / UE48H5080AS / UE48H5080ASXZG

• Samsung UE48H5090 / UE48H5090ASXZG

• Samsung UE48H5100

• Samsung UE48H5270 / UE48H5270AUXMS / UE48H5270AUXRU / UE48H5270AUXUZ

• Samsung UE48H5500 / UE48H5500AKX / UE48H5500AKXKZ / UE48H5500AKXMS / UE48H5500AKXRU / UE48H5500AKXUZ / UE48H5500AKXXH / UE48H5500AKXXU / UE48H5500AWXXC / UE48H5500AWXXH / UE48H5500AWXXN / UE48H5500AWXZF / UE48H5500AYXZT

• Samsung UE48H5505 / UE48H5505AKXXE

• Samsung UE48H5510 / UE48H5510AKX / UE48H5510AKXRU / UE48H5510AKXXU / UE48H5510SSXXH / UE48H5510SSXXN / UE48H5510SSXZF / UE48H5510SSXZG

• Samsung UE48H5515 / UE48H5515AKXXE

• Samsung UE48H5570 / UE48H5570ASXTK / UE48H5570SSXXC / UE48H5570SSXXH / UE48H5570SSXXN / UE48H5570SSXZG

• Samsung UE48H6200 / UE48H6200AKX / UE48H6200AKXKZ / UE48H6200AKXMS / UE48H6200AKXRU / UE48H6200AKXUZ / UE48H6200AKXXH / UE48H6200AKXXU / UE48H6200AKXZT / UE48H6200ASXBT / UE48H6200ASXUA / UE48H6200AWXBT / UE48H6200AWXXC / UE48H6200AWXXH / UE48H6200AWXXN / UE48H6200AWXZF / UE48H6200AWXZG / UE48H6200AYXZT

• Samsung UE48H6230 / UE48H6230AKXRU

• Samsung UE48H6240 / UE48H6240AW

• Samsung UE48H6248 / UE48H6248AKXRU / UE48H6248AKXXU / UE48H6248AWXXC / UE48H6248AWXXH / UE48H6248AWXXN / UE48H6248AWXZF / UE48H6248AYXZT

• Samsung UE48H6260 / UE48H6260SUXZG

• Samsung UE48H6270 / UE48H6270ASXTK / UE48H6270SSXXH / UE48H6270SSXZG

• Samsung UE48H6275 / UE48H6275SUXXE

• Samsung UE48H6280 / UE48H6280SUXZG

• Samsung UE48H6290 / UE48H6290ASXTK / UE48H6290SSXZG

• Samsung UE48H6350 / UE48H6350AKX / UE48H6350AKXKZ / UE48H6350AKXMS / UE48H6350AKXRU / UE48H6350AKXUZ / UE48H6350AKXXH / UE48H6350ASXBT / UE48H6350ASXUA / UE48H6350AWXBT / UE48H6350AWXXC / UE48H6350AWXXH / UE48H6350AWXXN / UE48H6350AWXZF / UE48H6350AWXZG

• Samsung UE48H6400 / UE48H6400AK / UE48H6400AKXXU / UE48H6400AWXXH

• Samsung UE48H6410 / UE48H6410AKXKZ / UE48H6410AKXMS / UE48H6410AKXRU / UE48H6410AKXUZ / UE48H6410AKXXH / UE48H6410AKXXU / UE48H6410AKXZT / UE48H6410ASXBT / UE48H6410ASXTK / UE48H6410ASXUA / UE48H6410AUX / UE48H6410AUXKZ / UE48H6410AUXMS / UE48H6410AUXRU / UE48H6410AWXBT / UE48H6410AWXXC / UE48H6410AWXXH / UE48H6410AWXXN / UE48H6410AWXZF / UE48H6410AWXZG / UE48H6410SDXZT / UE48H6410SS / UE48H6410SSXXC / UE48H6410SSXXH / UE48H6410SSXXN / UE48H6410SSXZF / UE48H6410SSXZG / UE48H6410SUXXH / UE48H6410SUXXU

• Samsung UE48H6415 / UE48H6415SUXXE

• Samsung UE48H6470 / UE48H6470ASXTK / UE48H6470SS / UE48H6470SSXXC / UE48H6470SSXXH / UE48H6470SSXZG

• Samsung UE48H6475 / UE48H6475SUXXE

• Samsung UE48H6480 / UE48H6480AKX / UE48H6480AKXKZ / UE48H6480AKXMS / UE48H6480AKXRU / UE48H6480AKXUZ / UE48H6480AKXXH / UE48H6480AKXXU / UE48H6480AKXZT / UE48H6480ASXBT / UE48H6480ASXUA / UE48H6480AWXBT / UE48H6480AWXXC / UE48H6480AWXXH / UE48H6480AWXXN / UE48H6480AWXZF / UE48H6480AWXZG / UE48H6480AYXZT

• Samsung UE48H6500 / UE48H6500AKXKZ / UE48H6500AKXMS / UE48H6500AKXRU / UE48H6500AKXUZ / UE48H6500AKXXH / UE48H6500AKXXU / UE48H6500AKXZT / UE48H6500ALXTK / UE48H6500ASXBT / UE48H6500ASXUA / UE48H6500ATX / UE48H6500ATXKZ / UE48H6500ATXMS / UE48H6500ATXRU / UE48H6500ATXUZ / UE48H6500AWXBT / UE48H6500AWXXC / UE48H6500AWXXH / UE48H6500AWXXN / UE48H6500AWXZF / UE48H6500AWXZG / UE48H6500SBXXU / UE48H6500SL / UE48H6500SLXXC / UE48H6500SLXXH / UE48H6500SLXXN / UE48H6500SLXZF / UE48H6500STXXH / UE48H6500STXXU / UE48H6500SZXZT

• Samsung UE48H6505 / UE48H6505STXXE

• Samsung UE48H6510 / UE48H6510SBXXU / UE48H6510SSXZG

• Samsung UE48H6580 / UE48H6580SVXZG

• Samsung UE48H6590 / UE48H6590SVXZG

• Samsung UE48H6600 / UE48H6600SVXZG

• Samsung UE48H6620 / UE48H6620SVXZG

• Samsung UE48H6640

• Samsung UE48H6648 / UE48H6648SLXXC / UE48H6648SLXXH / UE48H6648SLXXN / UE48H6648SLXZF / UE48H6648SSXXN / UE48H6648SSXZG / UE48H6648STXXH / UE48H6648SZXZT

• Samsung UE48H6650 / UE48H6650ALXTK / UE48H6650AT / UE48H6650ATX / UE48H6650ATXKZ / UE48H6650ATXMS / UE48H6650ATXRU / UE48H6650SL / UE48H6650SLXXH / UE48H6650SLXXN / UE48H6650SLXZF / UE48H6650STXXH

• Samsung UE48H6655 / UE48H6655STXXE

• Samsung UE48H6670 / UE48H6670SBXXU / UE48H6670SL / UE48H6670SLXXH / UE48H6670SLXXN / UE48H6670SLXZF / UE48H6670ST / UE48H6670STXXH / UE48H6670STXXU / UE48H6670SZ / UE48H6670SZXZT

• Samsung UE48H6675 / UE48H6675STXXE

• Samsung UE48H6690 / UE48H6690SVXZG

• Samsung UE48H6700 / UE48H6700SLXXC / UE48H6700SLXXH / UE48H6700SLXXN / UE48H6700STXXH / UE48H6700STXXU

• Samsung UE48H6705 / UE48H6705STXXE

• Samsung UE48H6740 / UE48H6748SBXXU / UE48H6748SVXZG

• Samsung UE48H6750 / UE48H6750SVXZG

• Samsung UE48H6770 / UE48H6770SV / UE48H6770SVXZG

J / UN Serija

• Samsung UE48J5000 / UE48J5000AK / UE48J5000AUX / UE48J5000AUXKZ / UE48J5000AUXRU

• Samsung UE48J5100 / UE48J5100AK / UE48J5100AKXXU / UE48J5100AKXZT / UE48J5100AUX / UE48J5100AUXKZ / UE48J5100AUXMS / UE48J5100AUXRU / UE48J5100AUXUZ / UE48J5100AWXBT / UE48J5100AWXXC / UE48J5100AWXXH / UE48J5100AWXXN / UE48J5100AWXXU / UE48J5100AWXZF

• Samsung UE48J5105 / UE48J5105AKXXE

• Samsung UE48J5150 / UE48J5150ASXZG

• Samsung UE48J5170 / UE48J5170ASXTK / UE48J5170ASXZG

• Samsung UE48J5200 / UE48J5200AKXXU / UE48J5200AWXXU

• Samsung UE48J5373 / UE48J5373ASXTK

• Samsung UE48J5500 / UE48J5500AK / UE48J5500AKXXC / UE48J5500AKXXU / UN48J5500AFXZA

• Samsung UE48J5502 / UE48J5502AKXXH

• Samsung UE48J5550 / UE48J5550SUXZG

• Samsung UE48J5580 / UE48J5580SU

• Samsung UE48J5600 / UE48J5600AKXXU

• Samsung UE48J5670

• Samsung UE48J6200 / UE48J6200AKXXU

• Samsung UE48J6202 / UE48J6202AK

• Samsung UE48J6250 / UE48J6250SU

• Samsung UE48J6270

• Samsung UE48J6272 / UE48J6272SU

• Samsung UE48J6275 / UE48J6275SU

• Samsung UE48J6300

• Samsung UN48H5500 / UN48H5500AFXZA
