ES-136, SAMSUNG 40H6400 LED TRAKE

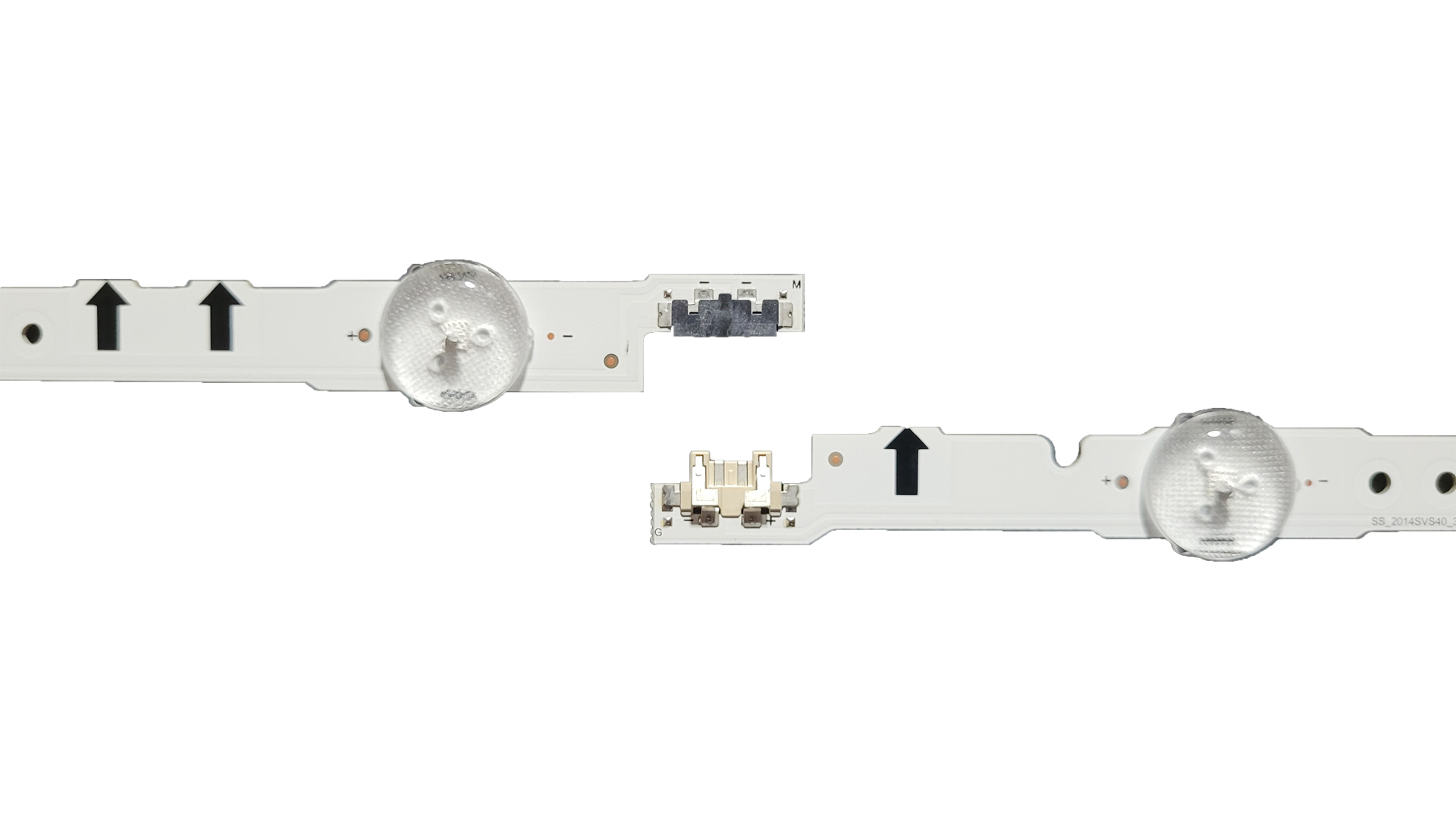

LED Trake ES-136 / SAMSUNG 40H6400 (Set 10 kom)Profesionalni, kompletni set LED traka za pozadinsko osvetljenje 40" televizora brenda Samsung. Ovaj izuzetno rasprostranjeni komplet sadrži ukupno 10 traka koje se ugrađuju kao 5 produženih redova (svaki red se sastoji od spajanja jedne A i jedne B trake). Trake su izrađene na kvalitetnoj podlozi sa već nanesenom termički provodljivom dvostrano lepljivom trakom, što osigurava pouzdanu montažu u servisu i stabilno hlađenje dioda tokom rada.
Tehničke specifikacije

• Oznaka kompleta: ES-136

• Kodne oznake na trakama (L/R):

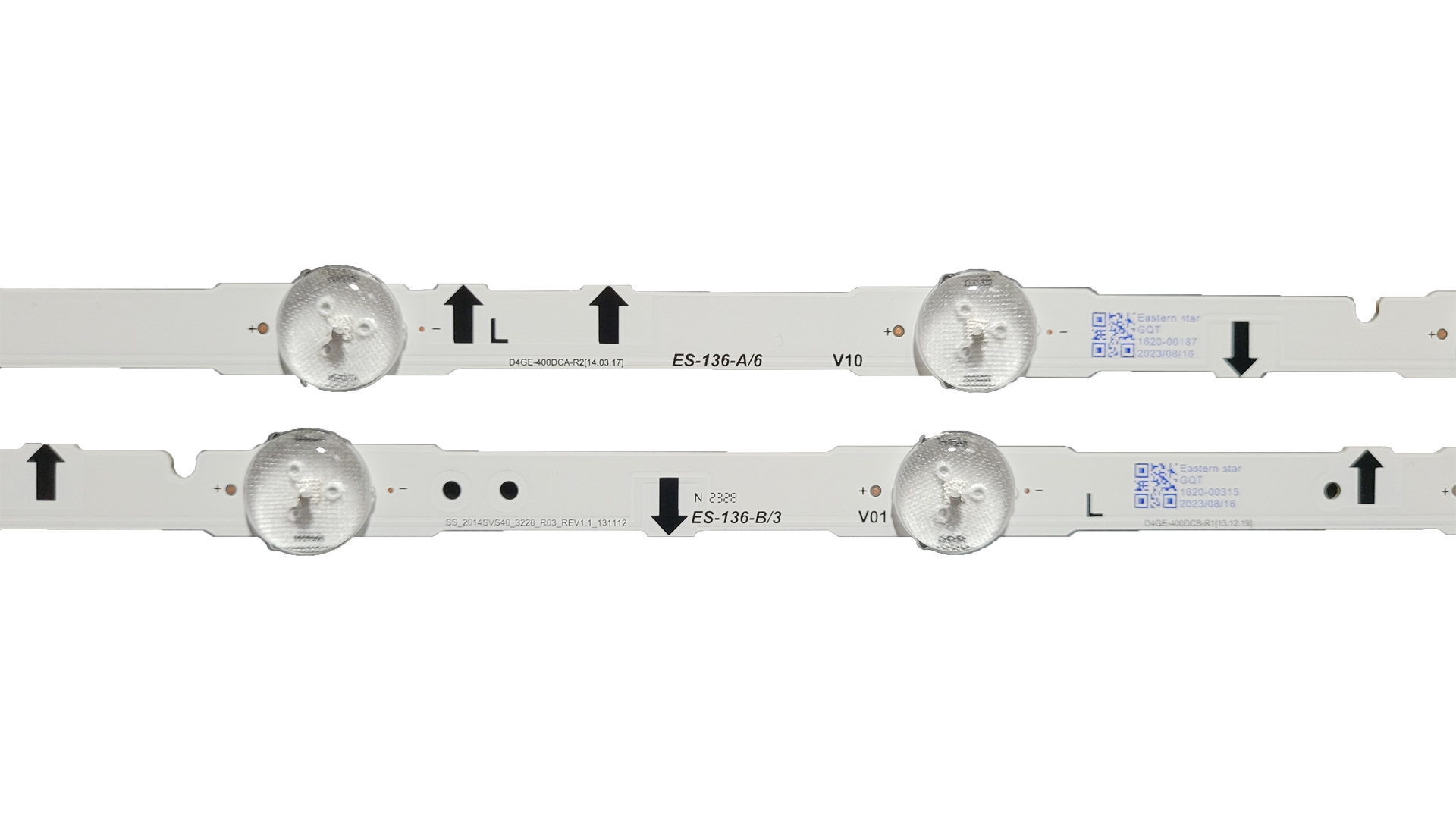

• Tip A (Leva): D4GE-400DCA-R2 / BN96-30449A

• Tip B (Desna): D4GE-400DCB-R2 / BN96-30450A

• Broj traka u setu: 10 komada (5 $\times$ A tip + 5 $\times$ B tip)

• Broj dioda po traci: Tip A: 6 LED / Tip B: 3 LED (ukupno 9 dioda po spojenom redu)

• Ukupan broj dioda u TV-u: 45 LED

• Radni napon diode: 3V

• Dužina LED traka: Tip A: 553 mm / Tip B: 303 mm

• Tip sočiva: Okrugla

• Samolepljiva traka: Da (termo-provodljiva pozadina)

• Brend: SAMSUNG

Kompatibilnost sa panelima
Ovaj set pozadinskog osvetljenja je direktno kompatibilan sa sledećim fabričkim oznakama Samsung ekrana i matrica:

• CY-GH040BGSR1V

• CY-GH040CSLV1H, CY-GH040CSLV5H, CY-GH040CSLV8H

• CY-GH040HGLV2H, CY-GH040HGLV3H

• CY-JGJ040BGLV9H

• CYGH040BGLV2H, CYGH040BGLV3H, CYGH040BGLV4H

• CYGH040BGSV1H, CYGH040BGSV2H, CYGH040BGSV3H, CYGH040BGSV4H

• CYGH040CSLV1H, CYGH040CSLV2H, CYGH040CSLV3H, CYGH040CSLV4H, CYGH040CSLV5H

• CYGH400BGLV1H

• GH040BGAB2

Podržani modeli televizora
Komplet pokriva široku paletu Samsung 40" televizora iz F, H, J i komercijalnih serija:
H Serija

• Samsung UE40H5000 / UE40H5000AWXBT / UE40H5000AWXZF / UE40H5000AWXZG

• Samsung UE40H5030 / UE40H5030AWXXC / UE40H5030AWXXH / UE40H5030AWXXN / UE40H5030AWXZF / UE40H5030AWXZG

• Samsung UE40H5040 / UE40H5070 / UE40H5090

• Samsung UE40H5500 / UE40H5500AKXKZ / UE40H5500AKXMS / UE40H5500AKXRU / UE40H5500AKXUZ / UE40H5500AKXXH / UE40H5500AKXXU / UE40H5500AKXZT / UE40H5500ASXBT / UE40H5500ASXUA / UE40H5500AWXBT / UE40H5500AWXXC / UE40H5500AWXXH / UE40H5500AWXXN / UE40H5500AWXZF / UE40H5500AWXZG / UE40H5500AYXZT

• Samsung UE40H5570

• Samsung UE40H6200 / UE40H6200AKXKZ / UE40H6200AKXMS / UE40H6200AKXRU / UE40H6200AKXUZ / UE40H6200AKXXH / UE40H6200AKXXU / UE40H6200AKXZT / UE40H6200ASXBT / UE40H6200ASXUA / UE40H6200AWXBT / UE40H6200AWXXC / UE40H6200AWXXH / UE40H6200AWXXN / UE40H6200AWXZF / UE40H6200AWXZG / UE40H6200AYXZT

• Samsung UE40H6240 / UE40H6240AY / UE40H6270 / UE40H6290

• Samsung UE40H6350 / UE40H6350AKXKZ / UE40H6350AKXMS / UE40H6350AKXRU / UE40H6350AKXUZ / UE40H6350AKXXH / UE40H6350AKXXU / UE40H6350AKXZT / UE40H6350ASXBT / UE40H6350ASXUA / UE40H6350AWXBT / UE40H6350AWXXC / UE40H6350AWXXH / UE40H6350AWXXN / UE40H6350AWXZF / UE40H6350AWXZG

• Samsung UE40H6400 / UE40H6400AKXKZ / UE40H6400AKXMS / UE40H6400AKXRU / UE40H6400AKXUZ / UE40H6400AKXXH / UE40H6400AKXXU / UE40H6400AKXZT / UE40H6400ASXBT / UE40H6400ASXUA / UE40H6400AWXBT / UE40H6400AWXXC / UE40H6400AWXXH / UE40H6400AWXXN / UE40H6400AWXZF / UE40H6400AWXZG / UE40H6470

• Samsung UE40H6410 / UE40H6410AKXKZ / UE40H6410AKXMS / UE40H6410AKXRU / UE40H6410AKXUZ / UE40H6410AKXXH / UE40H6410AKXXU / UE40H6410AKXZT / UE40H6410ASXBT / UE40H6410ASXUA / UE40H6410AWXBT / UE40H6410AWXXC / UE40H6410AWXXH / UE40H6410AWXXN / UE40H6410AWXZF / UE40H6410AWXZG / UE40H6410SS / UE40H6410SU

• Samsung UE40H6500 / UE40H6500SBXXU / UE40H6500ST / UE40H6510SBXXU / UE40H6510SSXZG

• Samsung UE40H6600 / UE40H6600ST

• Samsung UE40H6640 / UE40H6640SSXXN / UE40H6640SSXZG

• Samsung UE40H6650 / UE40H6655 / UE40H6660

• Samsung UE40H6670 / UE40H6670SBXXU / UE40H6670ST / UE40H6670SZXZT

• Samsung UE40H6700 / UE40H6700ST / UE40H6740SBXXU / UE40H6770

• Samsung UE40H6800SBXXU

• Samsung UE40H7000 / UE40H7000SLXZF / UE40H7000STXXH / UE40H7090

J / UN Serija

• Samsung UE40J5000AK

• Samsung UE40J5100 / UE40J5100AK / UE40J5100AKXXU / UE40J5100AW / UE40J5100AWXXU / UE40J5100AWXZF / UE40J5150

• Samsung UE40J5200AW / UE40J5200AWXXU

• Samsung UE40J5373ASXTK

• Samsung UE40J5500 / UN40J5500 / UE40J5510AK / UE40J5515AK / UE40J5580 / UE40J5580SU

• Samsung UE40J5600 / UE40J5600AKXXU / UUE40J5600AK

• Samsung UE40J6200 / UE40J6200AK / UE40J6200AKXXU / UE40J6200AKXZT / UE40J6202AKXXH / UE40J6240 / UE40J6250 / UE40J6250SU

• Samsung UE40J6300 / UE40J6300AK / UN40J6300
