Zoom V3 - Multi Eeffects Vocal Processor
SLIČNI PROIZVODI

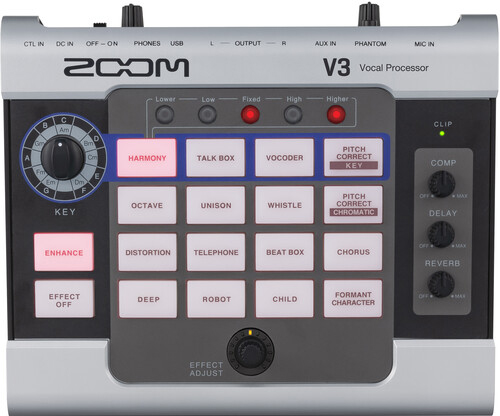

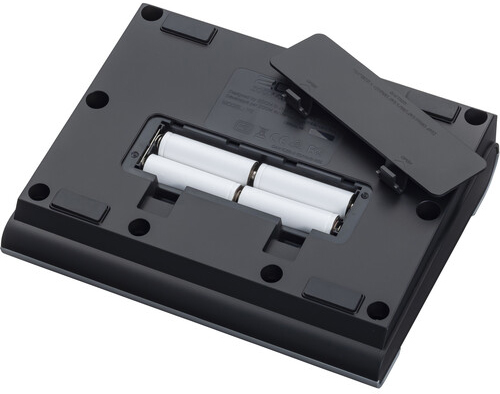

V3 offers 16 creative voice effects plus compression, reverb, delay and enhance Add up to two voices to create 3-part harmonies across a full octave Independent compression, reverb and delay controls Built-in Enhancer for increased sound clarity 48V phantom power for condenser microphones USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz Line outputs for connecting to PA systems or mixing consoles Headphone output with dedicated volume control Auxiliary input Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter SPECS
EFFECTS: 16 types CONCURRENT EFFECTS: 5 SAMPLING FREQUENCY: 44.1 kHz A/D CONVERSION: 24-bit 128× oversampling D/A CONVERSION: 24-bit 128× oversampling SIGNAL PROCESSING: 32-bit FREQUENCY RESPONSE: 20 Hz–20 kHz (+1 dB/-3 dB) (10 k? load) INPUTS

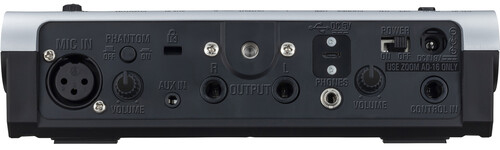

MIC IN: XLR jack INPUT GAIN: +3 – +40 dB MAXIMUM INPUT LEVEL: +4 dBu INPUT IMPEDANCE: 3 k? or higher (1 kHz) PHANTOM POWER: +48 V AUX IN: Stereo mini jack RATED INPUT LEVEL: -10 dBu INPUT IMPEDANCE (LINE): 22 k? OUTPUTS
L/R OUT: Unbalanced TS jacks MAXIMUM OUTPUT LEVEL: +6 dBu OUTPUT IMPEDANCE: 100 ? PHONES: Stereo mini jack MAXIMUM OUTPUT LEVEL: 20 mW + 20 mW (into 32 ? load) EQUIVALENT INPUT NOISE (WHEN PHANTOM POWER OFF): –125 dBu or less (A-weighted, 150 ? input, +40 dB input gain) NOISE FLOOR (RESIDUAL NOISE): –75 dBu CONTROL INPUT: FS01/FP02M input POWER
POWER: AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries) USB: CONNECTOR: Micro USB AUDIO INTERFACE OPERATION: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit Power can also be supplied through the USB port. When using a cable designed only for power, other USB functions cannot be used. WEIGHTS AND DIMENSIONS
EXTERNAL DIMENSIONS: 150 mm (D) × 190 mm (W) × 50 mm (H) WEIGHT: 0.59 kg (excluding batteries)
