Klark Teknik DN32-MADI | MADI Expansion Module for Midas M32

Name: Klark Teknik DN32-MADI | MADI Expansion Module for Midas M32
Brand: KLARK
SKU: 9115386

Kretanje cena

LOKACIJE PRODAVNICA

Connectivity and Redundancy DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. KLARK TEKNIK has test... Pročitaj ceo opis

22.680,00 DIN

Više o ponudi

Parametri proizvoda

Klark Teknik DN32-MADI | MADI Expansion Module for Midas M32

Glavni parametri

Važna informacija

Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .

Brzo do ponude

Proizvođač

Cuin

CX008B16FA

Prijavi grešku

SLIČNI PROIZVODI

Više o proizvodu

M-Audio Keystation Mini 32 MK3

u SKYMUSIC center

5.900,00 DIN

Više o proizvodu

Logitech table mount for rally mic pod black ( 952-000002 )

u Kliklak WebShop

11.499,00 DIN

Više o proizvodu

Beyerdynamic DT-770 PRO 32

u SKYMUSIC center

18.500,00 DIN

Više o proizvodu

Dukane ConVA Student Response System za 32 studenta

Više o proizvodu

Više o proizvodu

Audio-Technica Slusalice ATH-M20XBT (ATH-M20XBT)

Više o proizvodu

Više o proizvodu

Beyerdynamic DT-770 M

u SKYMUSIC center

19.900,00 DIN

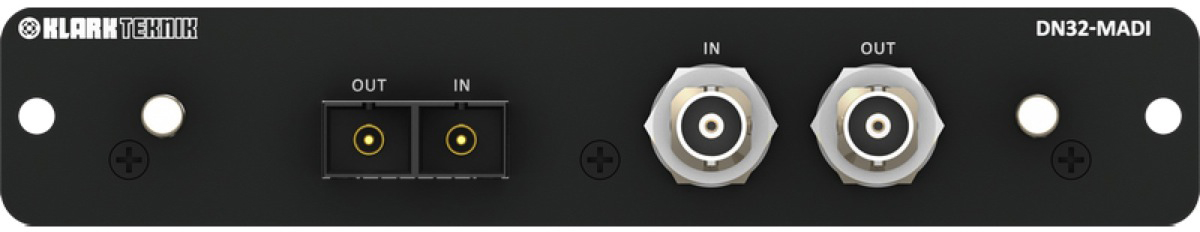

Connectivity and Redundancy DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. KLARK TEKNIK has tested multimode cable connections of 500 metres in length successfully, and distances of up to 2 km may be possible. Dual BNC connectors are also provided for transmission on standard 75-Ohm coaxial cables up to 100 metres in length. When both the optical and coaxial interfaces are utilised, the coaxial I/O serves as a redundant connection, and is automatically activated should the optical connection become unavailable. Clock Synchronisation and Routing Both the BNC coaxial and optical-fibre inputs can also function as the word clock source for your mixing console. Alternately, the coaxial and optical outputs can transmit the console’s internal word clock to external devices. The DN32-MADI card’s input stream can accommodate up to 64 channels, 32 of which can be used inside your console. Likewise, 32 of these internal signals can be transmitted on the MADI output stream, replacing those of the corresponding input channels. This also means the MADI output channels not allocated to the console signals simply pass their corresponding input channels through. This convenient feature allows two consoles to be easily combined via their DN32-MADI cards to provide a total of 64 channels for live sound or recording.

Features:

MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles Up to 32 bidirectional channels @ 48 kHz sample rate Operates up to 500 m over optical fibre link and 100 m over coaxial copper link Optical transmission on SC-Duplex* connector Copper transmission on 75 ohm coaxial BNC connectors Dual-redundant operation with failover from optical to copper connections Operates as either MADI clock master or MADI clock slave Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels 10-Year Warranty Program* Designed and engineered in the U.K.
