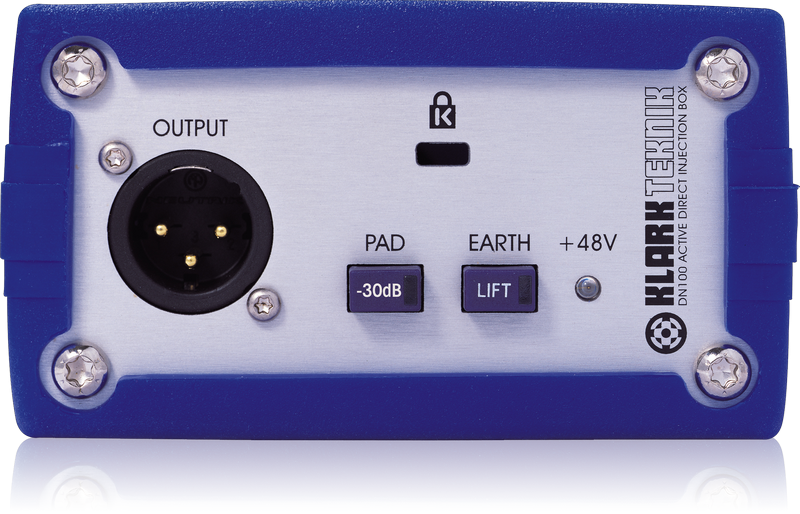

Klark Teknik DN100 aktivni direct box

Tehnička specifikacija

* Input
o Type: active electronic, balanced or unbalanced
o Impedance: 1M ohms nominal, balanced or unbalanced (jack connectors) 20K ohms (XLR input only)
o Connectors: 2 quarter inch jacks and 3-pin XLR linked in parallel
o Max. Level: 30dBu
o Attenuator: 20dB, switchable
* Output
o Type: Transformer Isolated, balanced
o Impedance: 300 ohms
o Connector: 3 pin XLR
o Max. Level: 10dBu with load >2k ohms
o Min. load: 600 ohms
* Performance
o Noise: -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor
o Frequency response: +0.5/-1dB 20Hz to 20kHz
o Distortion (THD+N):
* Power Requirement
o Voltage: +48V Phantom
o Current consumption:
* Weight:
* Dimensions
o Length: 142mm (5.6 inch)
o Width: 106mm (4.2 inch)
o Height: 60mm (2.35 inch)

Dodatne informacije

The new Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100.

A ground-up redesign provides an extended dynamic range, lower noise floor and all the world-class audio performance you-d expect from Klark Teknik. DN100 is also designed to handle the rigours of life on the road: a thick aluminium shell protects the electronics, and this in turn is protected by a tough silicone rubber casing, which is replaceable and available as a spare part.

We-ve also fitted a Kensington security slot in one of the end panels to allow the unit to be made secure using a Kensington MicroSaver security cable.
