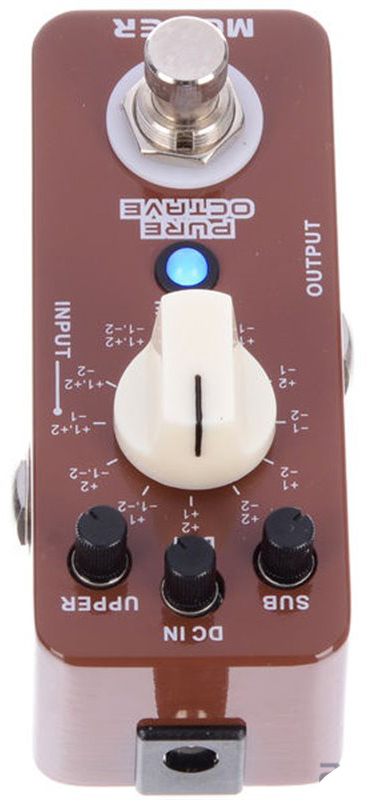

Mooer MOC1 Pure Octave

The Mooer Pure Octave is a pitch shifter that blends sub octaves and upper octaves with your original guitar signal to thicken and widen your sound. Conceptually the pedal is easy to understand. There are 11 octave modes. Each mode blends a combination of the various -2, -1, original signal, +1, +2 octaves. For example the first mode is -1, +1 which allows you to add the one octave lower and one octave higher to your signal. The last mode is -2, -1, +1, +2 which adds 4 octave worth of pitch for a huge effect! The Sub knob controls the amount of lower octave mix, while the Upper knob controls the higher octave mix. With the addition of the Dry know, you can really fine tune the exact octave effect you want.

Features:

Precise polyphonic octave effects with no distorted sound
11 different octave modes
Full metal shell
Very small and exquisite
True bypass

Specs:

Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 100 Ohms)
Power Requirements: AC adapter 9V DC (center minus plug)
Current Draw: 128 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight:160g
