ESI Neva Uno | 2-channel Usb Audio Interface With Usb-c 3.1 Connection
SLIČNI PROIZVODI
Features
2 input / 2 output 24-bit / 192kHz USB 3.1 audio interface with USB-C connector
XLR combo microphone preamp with +48V phantom power support
Hi-Z instrument input with 1/4" connector
USB bus powered (no additional power adapter needed)
line output with unbalanced RCA connectors
headphone output with 1/4" connector
ADC with 97dB(a) dynamic range
DAC with 107dB(a) dynamic range
zero latency hardware direct input monitoring activated by switch
master output volume control
supports Windows 10, Windows 11 with ASIO 2.0, MME, WDM and DirectSound
supports macOS via the native CoreAudio USB audio driver from Apple
stereo hardware loopback channel for internal recording
includes Bitwig Studio 8-Track DAW
includes Steinberg WaveLab LE audio editor license
works with Cubasis LE from Steinberg for iPhone / iPad
includes 3 month (up to 9000 minute) subscription to JackTrip Virtual Studio
dimensions: 10.5cm x 9cm x 4cm
Connectors & Functions
+48V PHANTOM POWER SWITCH to provide power for a condenser microphone.
LINE HI-Z SWITCH for input 2 to switch between Line level and Hi-Z guitar signals.
DIRECT MONITORING SWITCH to enable or disable input monitoring to listen to the input signals.
GAIN KNOB 1 to change the input gain / input level for input 1. The LED ring indicates the signal level.
GAIN KNOB 2 to change the gain / input level for input 2. The LED ring indicates the signal level.
VOLUME KNOB to change the main output volume for connected headphones and speakers.
XLR / TRS COMBO INPUT 1 to connect a microphone via XLR cable or a line signal via 1/4" TRS connector.
TRS INPUT 2 to connect a line via 1/4" TS connector.
HEADPHONE OUTPUT to connect headphones.

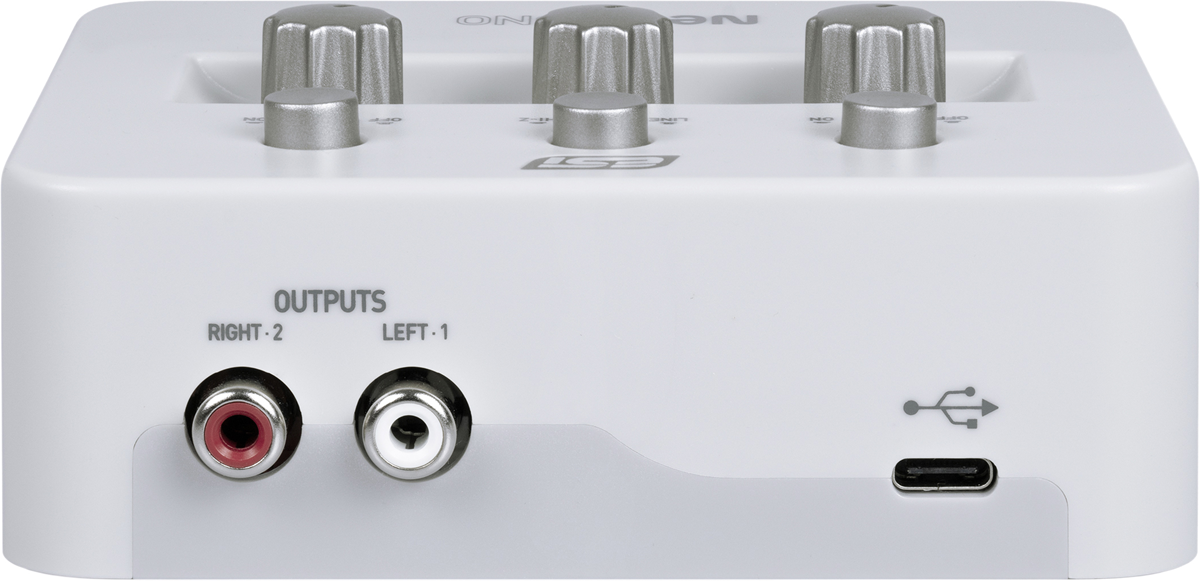

LINE OUTPUT 1/2 to connect the stereo master line level output signal via RCA cables for left and right channels.
USB-C CONNECTOR to connect the audio interface to a PC, Mac, tablet or mobile phone.
Small, portable and perfect for your podcasting or live streaming applications This stylish 24-bit / 192 kHz USB-C audio interface is so small, it will instantly become your new companion on the go and in your studio. Neva Uno is USB bus powered and Plug & Play, just plug it in and start working! It works with any modern Mac (Intel or M1 CPU or better), PC (Windows 10 and higher) and with many portable devices (iPhone, iPad, etc.). One XLR/jack combo input will take either your microphone or line signal, while the second 1/4" jack input accepts line or Hi-Z guitar signals. The inputs feature a mic preamp with up to 50dB gain and 48V phantom power support and the analog-to-digital converter provides 97db(a) dynamic range. On the output side, there is an integrated headphone amplifier and stereo line RCA outputs with a digital-to-analog converter with 107dB(a) dynamic range, allowing you to connect a mixer, amplifier or active speakers. You can monitor incoming audio signals with zero latency, just push the direct monitor button.
