ESI Neva Duo | 2-channel Usb Audio Interface With Usb-c Connector
SLIČNI PROIZVODI
Features
2 input / 2 output 24-bit / 192kHz USB 3.1 audio interface with USB-C connector
2x XLR microphone preamp with +48V phantom power support
2x Hi-Z inputs with 1/4" connector
USB bus powered (no additional power adapter needed)
line output with balanced/unbalanced 1/4" TRS connectors
headphone output with 1/4" Stereo connector and separate volume control
ADC with 97dB(a) dynamic range
DAC with 107dB(a) dynamic range
zero latency hardware direct input monitoring activated by switch
master output volume control
supports Windows 10, Windows 11 with ASIO 2.0, MME, WDM and DirectSound
supports macOS via the native CoreAudio USB audio driver from Apple
stereo hardware loopback channel for internal recording
includes Bitwig Studio 8-Track DAW
includes Steinberg WaveLab LE audio editor license
works with Cubasis LE from Steinberg for iPhone / iPad
includes 3 month (up to 9000 minute) subscription to JackTrip Virtual Studio
dimensions: 13cm x 9cm x 4cm
Connectors & Functions

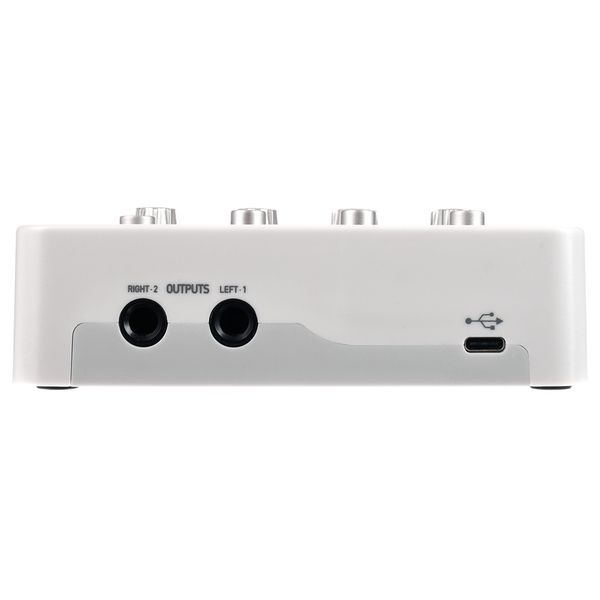

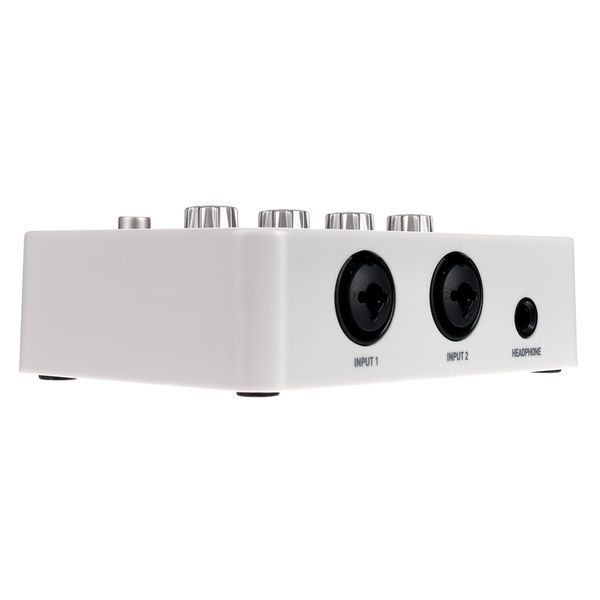

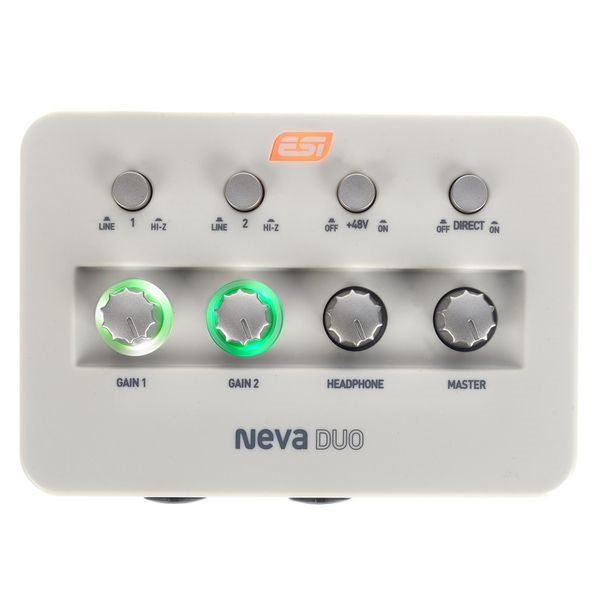

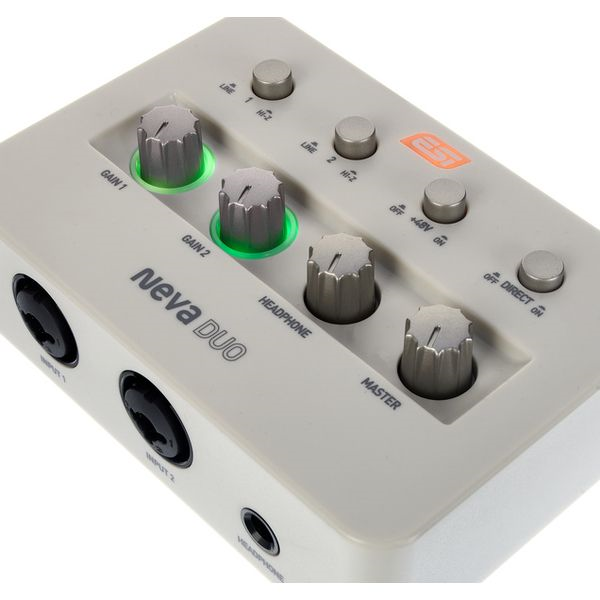

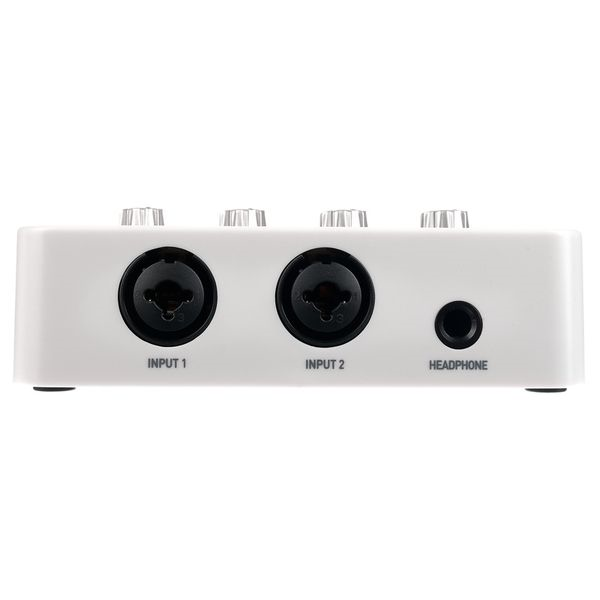

LINE HI-Z SWITCH 1 for input 1 to switch between Line / Microphone signals and Hi-Z guitar signals. LINE HI-Z SWITCH 2 for input 2 to switch between Line / Microphone signals and Hi-Z guitar signals. +48V PHANTOM POWER SWITCH to provide power for condenser microphones. DIRECT MONITORING SWITCH to enable or disable input monitoring to listen to the input signals. GAIN KNOB 1 to change the input gain / input level for input 1. The LED ring indicates the signal level. GAIN KNOB 2 to change the input gain / input level for input 2. The LED ring indicates the signal level. HEADPHONE VOLUME KNOB to change the output volume for connected headphones. MASTER VOLUME KNOB to control the master output volume of the main line output signal. XLR / TRS COMBO INPUT 1 to connect a microphone via XLR cable, a line signal via 1/4" TRS connector or an electric guitar with 1/4". XLR / TRS COMBO INPUT 2 to connect a microphone via XLR cable, a line signal via 1/4" TRS connector or an electric guitar with 1/4". HEADPHONE OUTPUT to connect headphones. OUTPUT LINE 1/2 to connect the stereo master line level output signal via 1/4" TRS cables for left and right channels. USB-C CONNECTOR to connect the audio interface to a PC, Mac, tablet or mobile phone. Small, flexible and ideal for entering the world of digital audio recording This stylish 24-bit / 192 kHz USB-C audio interface is so small, it will instantly become your new companion on the go and in your studio. Neva Duo is USB bus powered and Plug & Play, just plug it in and start working! It works with any modern Mac (Intel or M1 CPU or better), PC (Windows 10 and higher) and with many portable devices (iPhone, iPad, etc.). No additional AC adapter is needed. You can use the integrated 2 preamps with 48V phantom power for condenser or dynamic microphones with up to 50dB gain using XLR inputs or connect an electric guitars via 1/4" Hi-Z inputs. On the output side, there is an integrated headphone amplifier and there are stereo TRS outputs with master volume control allowing you to connect a mixer, amplifier or active speakers. You can monitor incoming audio signals with zero latency, just push the direct monitor button. The total of 2 inputs with 97dB(a) dynamic range and 2 outputs with 107dB(a) dynamic range can be used for line level signals as well.
