| Model Name | Diamond Studio 5-BT | Diamond Studio 7-BT |
| System Type | Active 5” 2-way Bi-Amplified | Active 6.5” 2-way Bi-Amplified |
| Freq. Range (-10 dB) Analog Input | 45 Hz-25 KHz | 38 Hz-25 KHz |
| Maximum SPL (peak @1 m) | 110 dB | 113 dB |

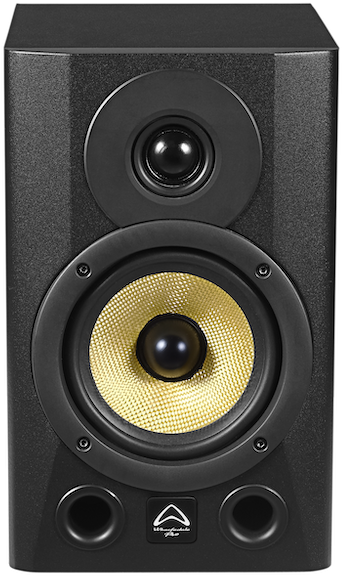

| LF Transducer | 5” Fiberglass composite woofer | 6.5” Fiberglass composite woofer |
| HF Transducer | Silk Soft dome tweeter | Silk Soft dome tweeter |
| Coil Size (mm / inches) | 25.4 mm / 1” | 25.4 mm / 1” |
| High Frequency Coverage (H x V) | 135° x 110° | 135° x 110° |
| Total Power Amplifiers | 140 W | 150 W |
| Low-Frequency Power Amplifier (Class D) | 80 W Continuous / 160 W Peak | 90 W Continuous / 180 W Peak |
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak | 60 W Continuous / 120 W Peak |
| Electronic Crossover: |
| Crossover Frequency | 2.2 KHz | 2.2 KHz |

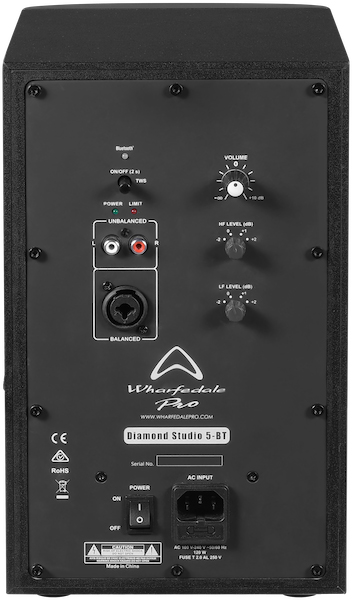

| Controls |
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| System Volume | -? to +10 dB | -? to +10 dB |
| Amplifier Protection | Yes | Yes |
| Power On Protection | Power switch on / off mute | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes | Yes |
| Limiter Indicator | Red LED | Red LED |
| Power Indicator | Green LED/white LED (LOGO) | Green LED/white LED (LOGO) |
| Input type | Balanced / Unbalanced / Bluetooth | Balanced / Unbalanced / Bluetooth |
| Input Connectors | TRS JACK / FEMALE XLR/RCA | TRS JACK / FEMALE XLR/RCA |
| AC Power Options | 100 V-240 V | 100 V-240 V |
| Power On Indicator | LED | LED |
| Cabinet Material | MDF | MDF |
| Cabinet Colour | black | black |
| Dimensions (Unpacked): |
| Height | 290 mm /11.42 in | 340 mm /13.39 in |
| Width | 180 mm /7.1 in | 210 mm /8.27” |
| Depth | 240 mm /9.45 in | 260 mm /10.24” |
| Dimensions (packed): |
| Height | 350 mm / 13.78 in | 400 mm/15.75 in |
| Width | 242.5 mm / 9.55 in | 272 mm/ 10.71 in |
| Depth | 303 mm / 11.93 in | 325 mm / 12.80 in |
| Weight |
| Net Weight | 5.62 kg /12.4 lbs | 6.84 kg / 15.1 lbs |
| Gross Weight | 6.47 kg / 14.2 lbs | 7.82 kg / 17.20 lbs |
