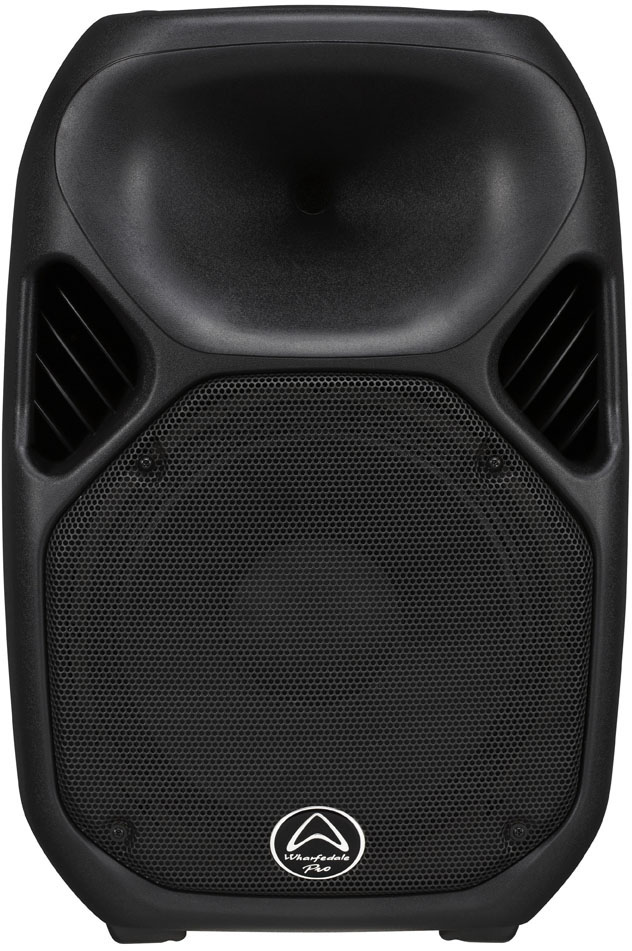

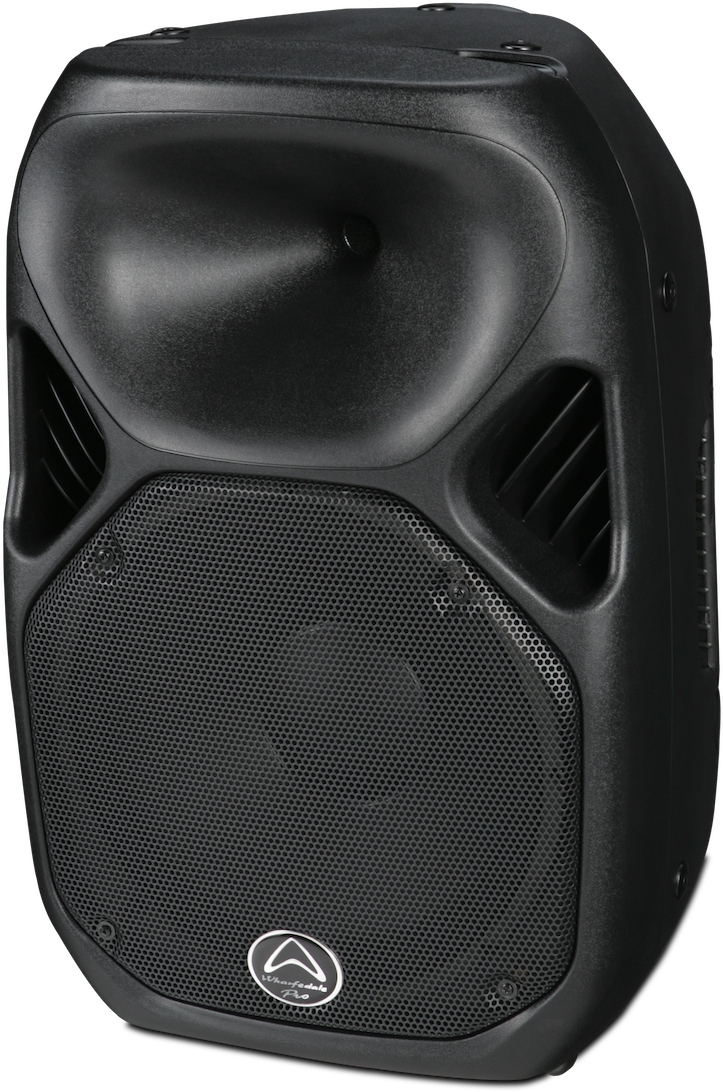

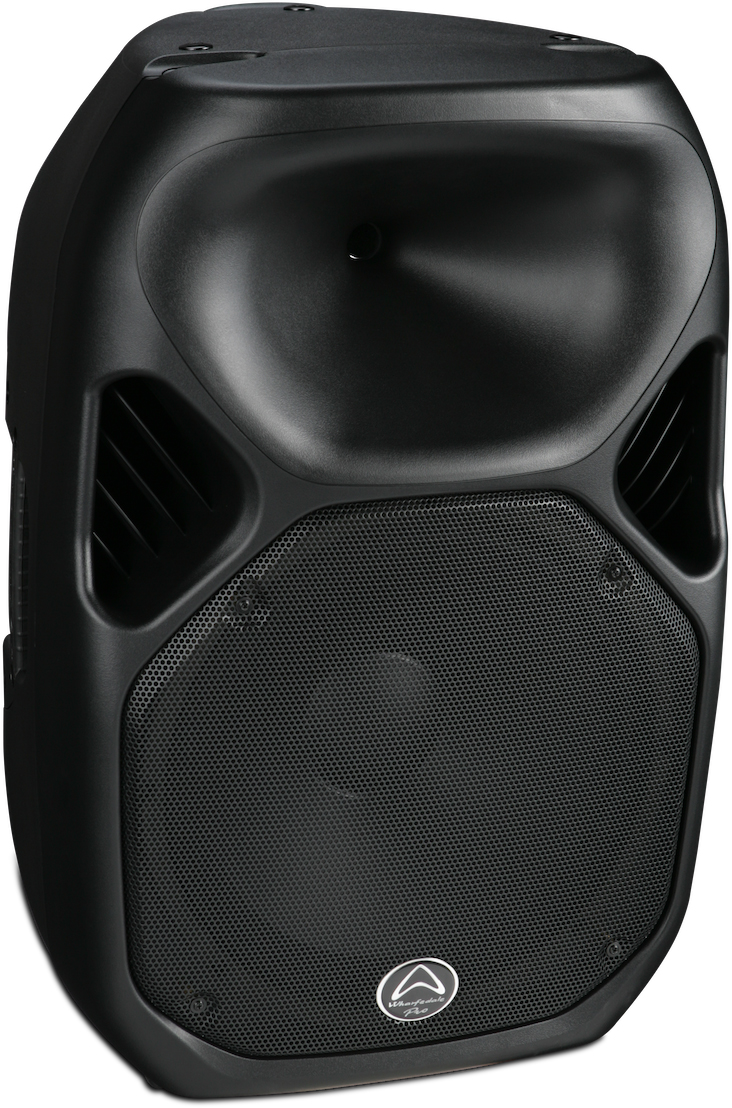

Model Name | TITAN AX12 |
System Type | Active 12" 2-way Bi-amplified |
Frequency Response (+/-3dB) | 55Hz-20kHz |
Frequency Range (-10dB) | 50Hz-20kHz |
Calculated Max SPL @ 1m | 128dB |
Transducers |
Low Frequency Transducer |
Size (mm / inches) | 305mm / 12" |
Coil Size (mm / inches) | 64.26mm / 2.5" |
High Frequency Transducer |
Type | Compression Driver |
Coil size (mm / inches) | 44mm / 1.75" |
Exit size (mm / inches) | 25mm / 1" |
Diaphragm Material | Titanium |
Nominal coverage (H * V) | Hybrid Symmetry Horn 100° * 80° |
Electronics |
Amplifiers |
Power amp LF RMS/Peak Watts | 250 / 500w (Class D) |
Power amp HF RMS/Peak Watts | 50 / 100w (Class D) |
Controls - EQ | Note - EQ changed by DSP knob |
DSP | Advanced user selectable presets. 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE |
Hi Pass switch | 90Hz |
Amplifier Protection | Yes |
Thermal Protection | Yes |
Low line voltage shut down | 60% Nominal line voltage |
Driver Protection | Independant LF and HF limiters |
DC Protection | Yes |
Short Protection | Yes |
Clip Limiter | Turns on ~250w output |
Limiter indicator | Red LED |
Power indicator | Green LED |

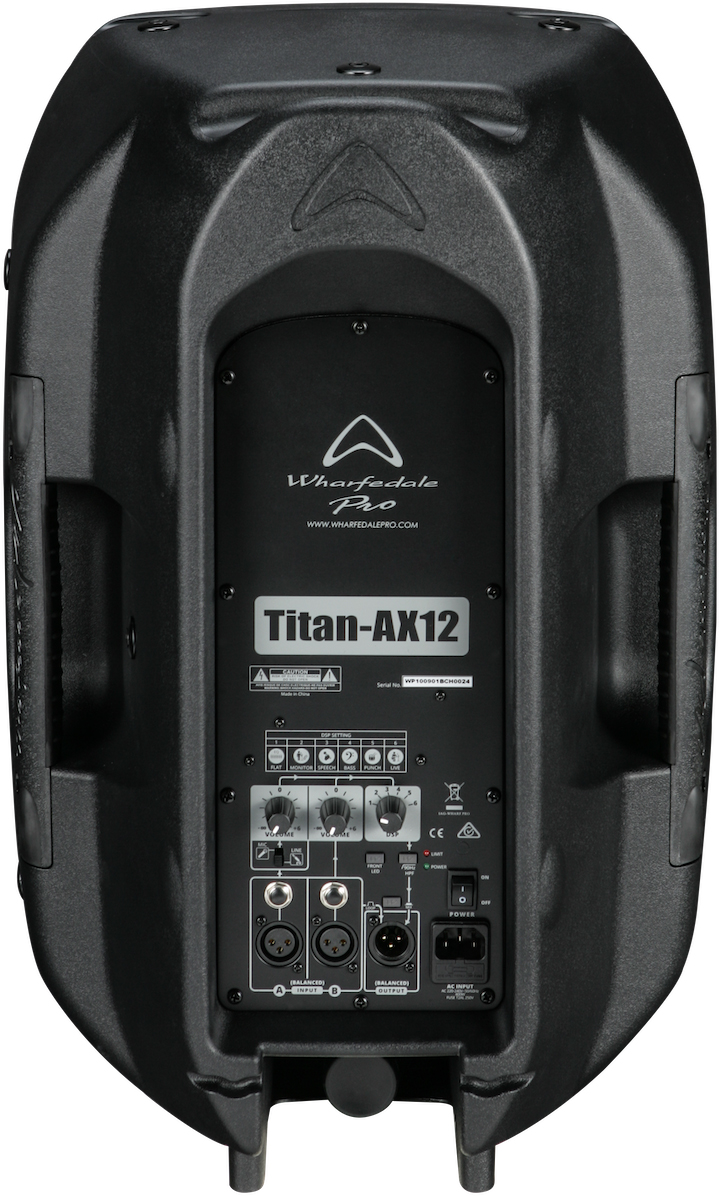

Connectors |
Inputs |
Input type | Switchable balanced mic or line level (Chan 1) |
Input connector | 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC) |
Line Output |
Line output connector | Switchable LOOP/MIX Balanced Female XLR |
AC Power |
Power Supply | SMPS |
AC Power options | AC100-120V/220-240V~ 50/60Hz |
Power on indicator | Rear LED |
Hardware |
Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint |
35mm receptacle with lock screw |
2 carry handles (one on each side) |
Optional wall-mount bracket |
LED Horn lighting (On/Off switch) | Yes |
Enclosure |
Enclosure Material and finish | Injection Moulded Polypropylene |
Colour options | Black / White |
Grille Material & Finish | 1.2mm steel |
Dimensions and Weight |
Dimensions - Unpacked |
Height | 582.7mm / 22.9" |
Width Front | 384.6mm / 15.1" |
Width Rear | 384.6mm / 15.1" |
Depth | 318.6mm / 12.5" |
Dimensions - Packed |
Height | 663mm / 26.1" |
Width Front | 435mm / 17.1" |
Width Rear | 435mm / 17.1" |
Depth | 408mm / 16.1" |
Net Weight (kg / lbs) | 12.4kg / 27.28lbs |
Gross Weight (kg / lbs) | 15.5kg / 34.1lbs |
