Bettermaker Mastering Equalizer

SPECIFIKACIJE:

100% analog audio signal path
USB connectivity with MAC/PC
all parameters are digitally controlled via touchscreen and/or DAW (with dedicated plugin)
399 presets with unique names, total recall, A/B comparison
5-inch capacitive touchscreen with backlight, four encoders with push-button action for ease of control
stereo, dual-mono and mid/side operation modes with focus function
stereo 12 or 24dB/oct high-pass filter with adjustable cutoff frequency (10Hz – 240 Hz; extended to 6Hz with the resonance enabled)

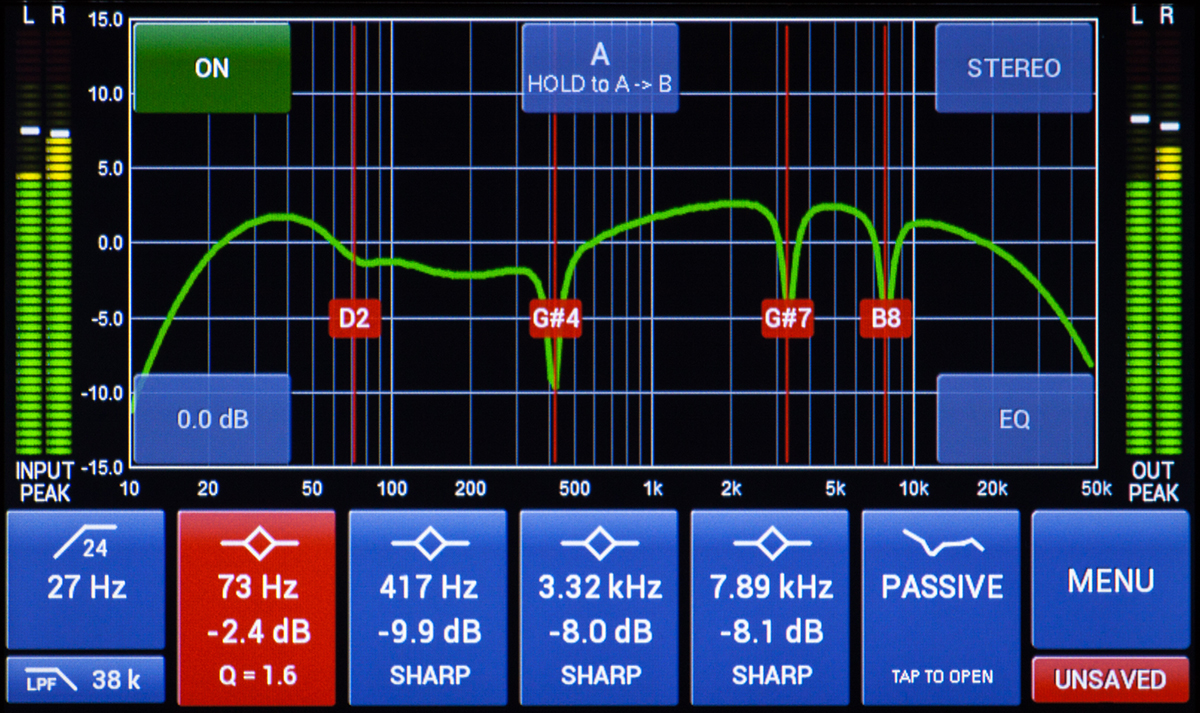

four stereo parametric filters with 15dB boost/cut range, variable Q (0.2 – 7):
EQ1: 22Hz – 470Hz (bell/shelf)
EQ2: 90Hz – 2kHz (bell)
EQ3: 480Hz – 10kHz (bell)
EQ4: 1kHz – 23kHz (bell/shelf)
stereo passive equalizer with extended hi-boost section (air bands: 20 and 28 kHz)
stereo, 12dB/oct low-pass filter with adjustable cutoff frequency (2 – 38 kHz)
adjustable output level (+/- 10dB)

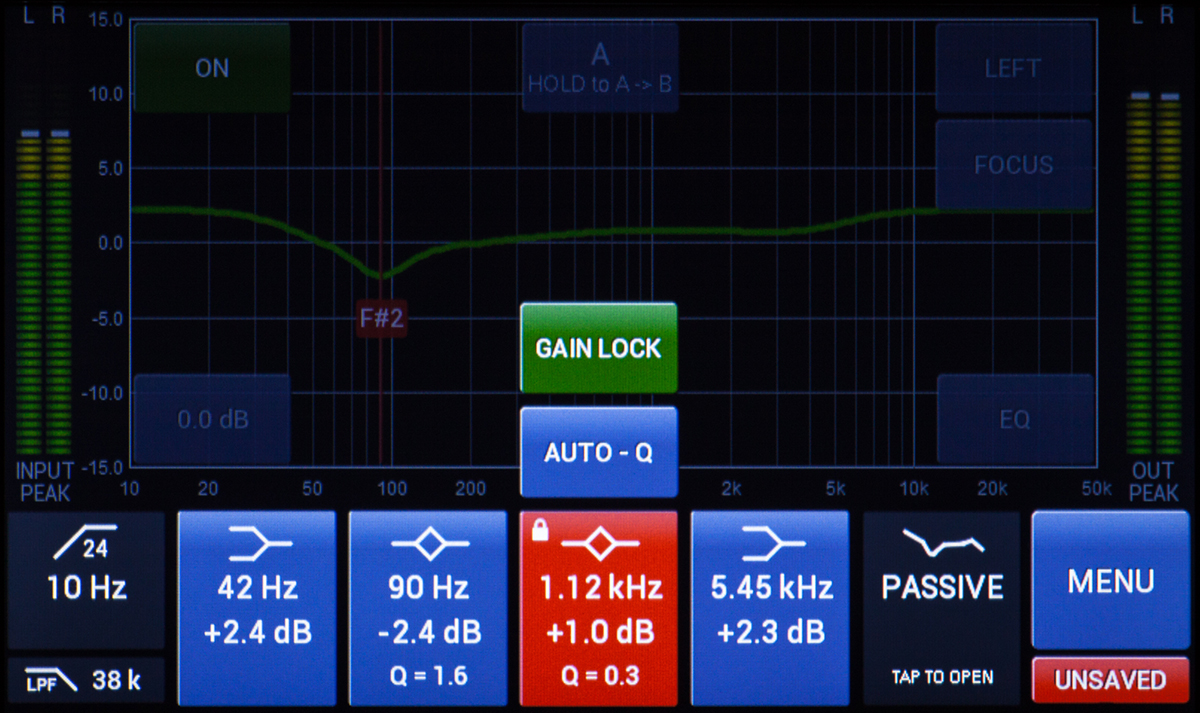

Frequency Search, Gain Lock, Note and Auto-Q functions

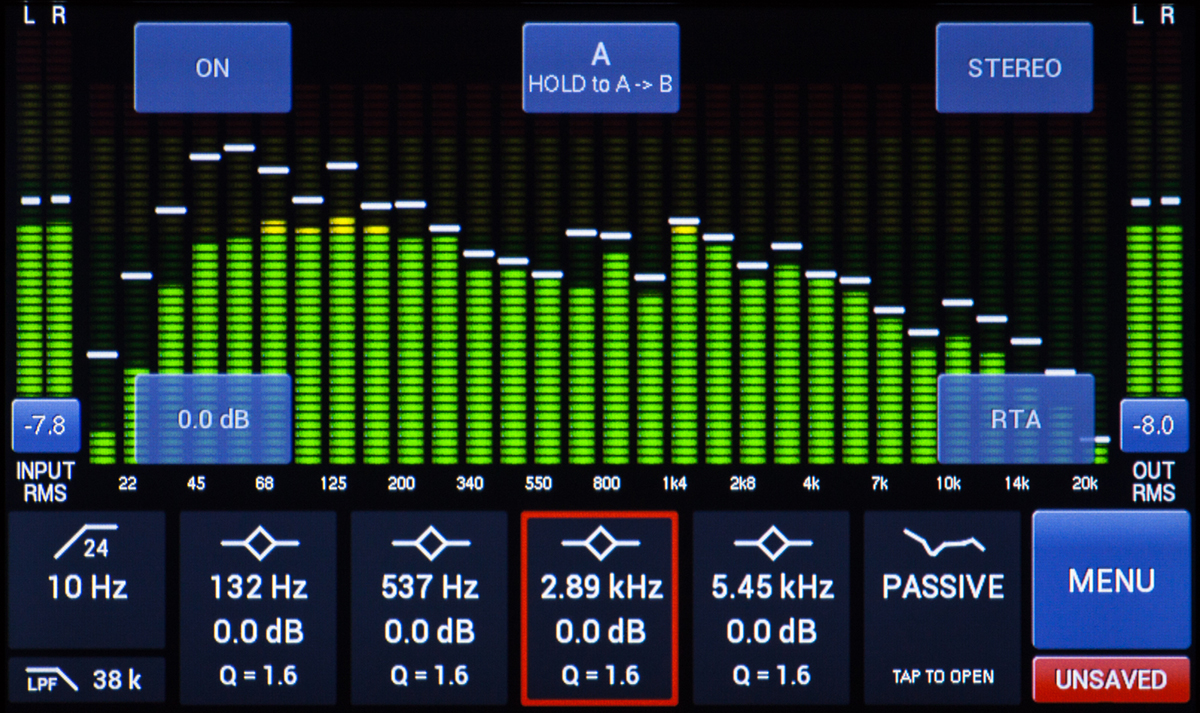

on-board measurement of PEAK/RMS levels and RTA analyzer

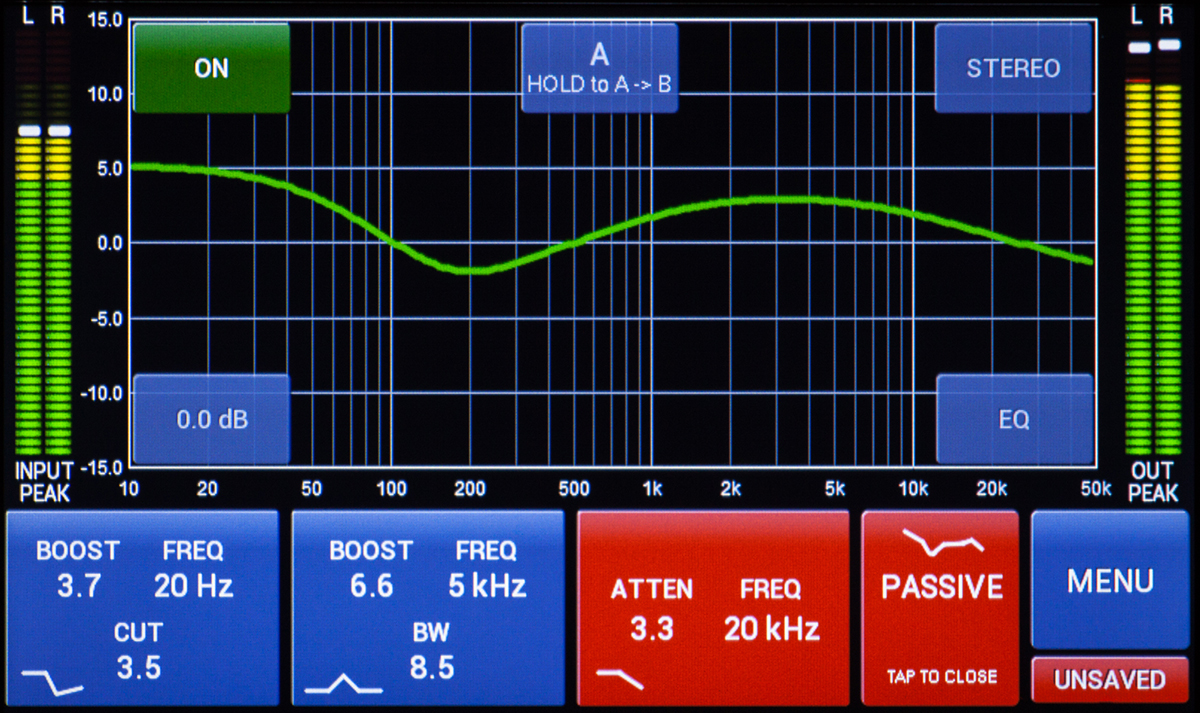

on-screen live representation of the equalization curve
Frequency response 20Hz to 20kHz (+/- 0.2 dB)
Dynamic range: 102dB (+23dBu, 22kHz BW)
THD+N: 0.03% @ +4 dBu, 0.06% @ +18 dBu, 20 kHz BW
CMRR: max 85 dB @ 3 kHz, min 52 dB @ 20Hz, 20 kHz BW
Crosstalk: min -100 dB @ 30Hz, max -65 dB @ 20kHz, +18 dBu, 20 kHz BW

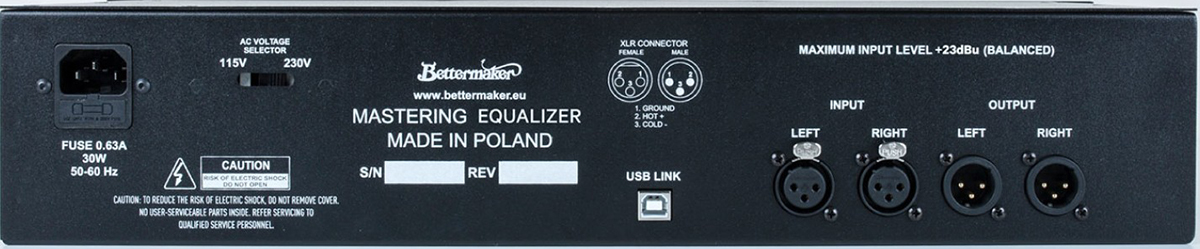

balanced stereo input (XLR), 23dBu max input level (THD
balanced stereo output (XLR), 23dBu max output level (THD
Operating Level: +4dBu
Input impedance (differential): 48k? (for balanced signal)
Output Impedance: 50? + 50? (electronically balanced)
2U enclosure, 230mm deep
115/230V switch
advanced linear power supply with toroidal AC mains transformer
Maximum power consumption: 20W
Shipping weight: 5.5 kg, 62x37x21 cm
