Bettermaker Bus Compressor

SPECIFIKACIJE:

advanced analog stereo VCA compressor with PEAK/RMS detection
all parameters are digitally controlled via front panel and/or DAW (with dedicated plugin)
dry/wet MIX control for parallel compression
sidechain high pass filter with hardware insert and preview function
adjustable THD for harmonically rich sound
on-board measurement of PEAK/RMS levels
100% analog audio signal path
total recall and A/B comparison from your favourite DAW

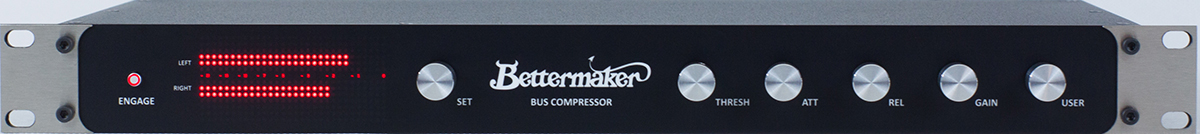

LED matrix display and six encoders with push-button action for ease of control
USB connectivity with MAC/PC
Frequency response 10Hz to 22kHz (+/- 0.2 dB)
Dynamic range: 106dB (+23dBu, 22kHz BW)
S/N ratio: 87dB (A-weighted, +4dBu, 22kHz BW, unity gain)
Crosstalk: -83dB @ 1kHz, +18dBu, channel-to-channel
CMRR: max 85 dB @ 3 kHz, min 52 dB @ 20Hz, 20 kHz BW
THD: 2nd:

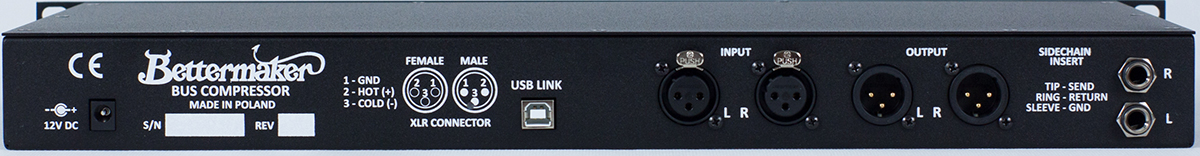

balanced stereo input (XLR), 23dBu max input level (THD
balanced stereo output (XLR), 23dBu max output level (THD 2kohm)
Input impedance (differential): 48k? (for balanced signal)
Output Impedance: 50? + 50? (electronically balanced)
2U enclosure, 230mm deep (Mastering Compressor)
1U enclosure, 230mm deep (Bus Compressor)
universal 100 – 240V power supply designed by Bettermaker (with Auto-on function)
Maximum power consumption: 25W
Shipping weight: 5.5 kg (Mastering Compressor), 5 kg (Bus Compressor)?
Threshold: -35dB / +5dB (40dB range)
Attack: 0.1 – 60 ms
Release: 10 – 2000 ms
Ratio: 1.5, 2, 4, 6, 10:1
Knee: 20dB
Output: -5dB to +15dB
Sidechain HPF: off – 370Hz
Sidechain Feed: Forward
Sidechain Type: PEAK/RMS
