IK Multimedia AXE I/O Solo Audio Interfejs

Specs :

2-in / 3-out USB audio interface
ACTIVE/PASSIVE pick-up selector
PURE and JFET input stages
Z-Tone™ impedance-adapting circuit
Amp Out with ground loop interrupter
High-resolution, Class A mic preamp

24-bit, 192 kHz sound quality
Wide frequency response ideal for instruments
Best-in-class analog/digital conversion
Ultra-low noise floor for high-gain recording
Designed and made in Italy

Common

Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Power: USB
Device Connection: USB B-Type 2.0
Enclosure: metal sheet

Line Outputs 1-2 (Monitor)

Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.

Output 3 (Amp output)

Configuration: Unbalanced, floating, with selectable ground lift

Headphones Out

Output impedance: Virtually ideal source (zero Ohms) until clipping

Mic Input

Configuration: Class-A discrete differential microphone preamp, pin 2 hot

Line Input

Configuration: Class-A discrete differential line receiver, tip hot

Instrument Input

Configuration: Multiple topology instrument preamp
Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
Input impedance, ACTIVE mode: 10 kOhms

Connections and Controls

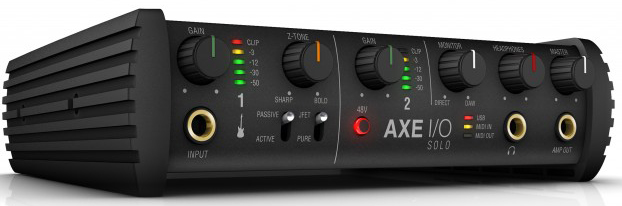

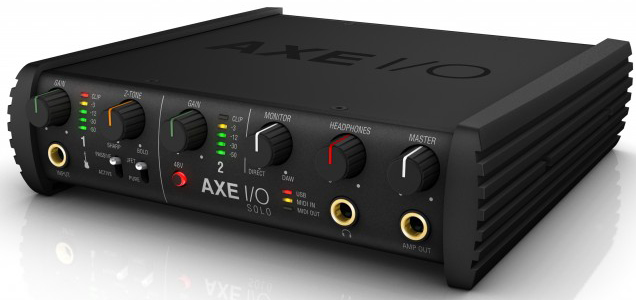

Front Panel

One 1/4" instrument input jacks
Two analog potentiometers for Input GAIN
Two 5 segments input level meter (peak)
Analog potentiometers for Z-Tone control
Pick-Up selector (PASSIVE/ACTIVE)
Preamp topology selector (JFET/PURE)
+48V phantom power switch
USB LEDS
MIDI IN/OUT LEDs
Monitor knob
1/4" headphones output jack
Master potentiometer for main output control
1/4" Amp output jack

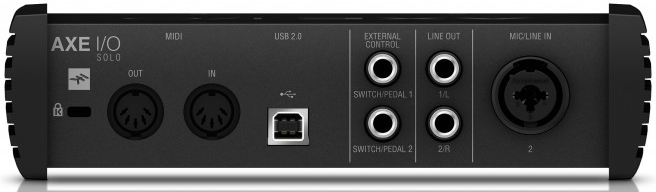

Rear Panel

MIDI I/O 5-pin DIN connectors
B-Type USB socket for connecting a computer (Mac/PC)
2 x 1/4" TRS External controllers sockets
2 x 1/4" TRS Balanced floating line outputs
1 Combo socket for MIC input and Line input (auto selecting)

Package includes

AXE I/O SOLO
USB A-Type to USB B-Type connection cable (1.5m/4.32ft)

Dimensions

Size: 19.5cm x 19.5cm x 5.3cm
Weight: 1.0kg

Compatibility

Computers

64-bit application. Requires a 64 bit CPU and Operating System.

Mac® (64-bits)

Minimal: macOS 10.11 or later. One free USB port.

Windows® (64-bits)

Minimal: Windows 7 or later. One free USB port.
