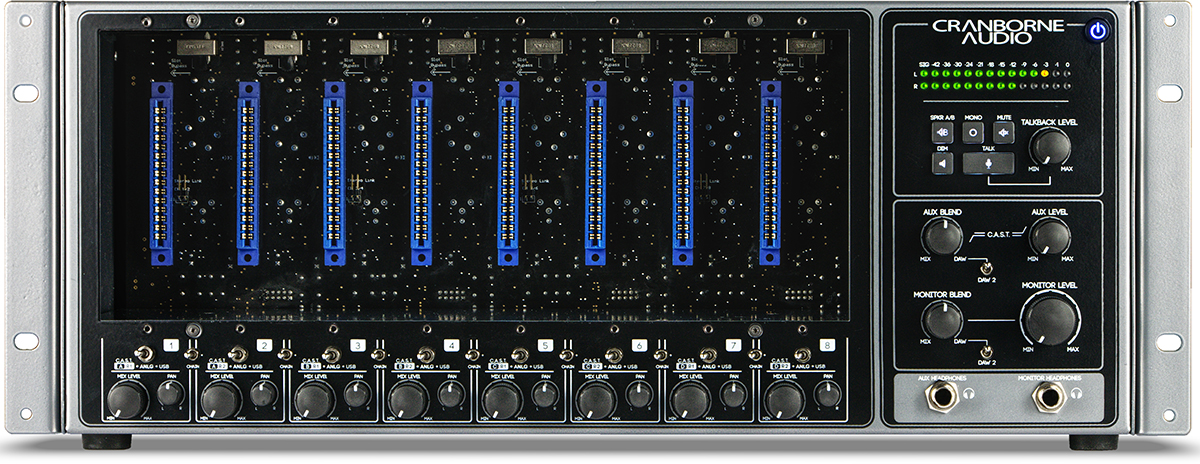

Cranborne Audio 500R8 Modularno Kućište sa Audio Interfejsom

Specs :

28-in/30-out USB interface, Summing Mixer, Artist Mixer, and Monitor Controller
Low-latency USB 2.0 interface:
Compatible with macOS and Windows computers
ADAT I/O (16x16 channels @ 44.1/48kHz, 8x8 channels @ 88.2/96kHz)
S/PDIF I/O; 5-pin MIDI I/O
High-performance A/D conversion:
Dynamic range: 121dB A-weighted dynamic range, 20Hz–20kHz
Frequency response: 2.2Hz to >80kHz (-1dB)
THD+N:
Max input level: +24dBu
High-performance D/A conversion:
Dynamic range: 121dB A-weighted, 20Hz–20kHz
Frequency response: 61kHz (-1dB)
THD+N:
Max Output Level: +24dBu
Reference-quality internal Master Clock:
Sample rates: 44.1, 48, 88.2, 96, 176.4, and 192kHz;
Dedicated word clock I/O via BNC
External sync options using word clock BNC, S/PDIF, or ADAT
Monitor Controller with talkback:
Speaker A/B switching, Mono check, Dim, Mute, and 28-segment peak meter
Dedicated talkback input with phantom power, push-to-talk activation, and automatic routing to all headphone and C.A.S.T. facilities
Easy-access illuminated front panel controls for all Monitor Controller functions
Analog Summing Mixer:
8x2 analog Summing Mixer with +26.5dBu of headroom and dedicated ADC
Balanced 1/4" jack outputs
C.A.S.T. link port for increasing Summing Mixer to 16x2 using Cranborne Audio 500ADAT
Zero-latency Artist Mixer:
Analog Artist Mixer with per-channel physical level/pan controls and DAW return blend controls
2 high-power headphone outputs with independent blend and level controls
Reference-grade Headphone Amplifier:
THD+N:
Output wattage (1kHz): 250mW x 2 @ 600 ohms, 650mW x 2 @ 220 ohms, 1.21W x 2 @ 100 ohms, 500mW x 2 @ 32 ohms
Frequency Response: 70kHz (1dB)
High-current 8-slot 500 Series rack:
Per-slot current: 250mA , 2A total for all slots
XLR inputs, XLR line outputs, and TRS Inserts (pre-ADC) per 500 Series slot
Module source switching options to send Analog, USB or external C.A.S.T. signals through 500 Series modules
Per-slot module bypass switches allowing 500R8 to be used without 500 Series modules installed
C.A.S.T. compatible:
C.A.S.T. ports per channel for routing analog I/O using passive or active C.A.S.T. breakout boxes via standard Cat 5 cable
External power supply:
24V, 5A external locking power supply for improved analog audio performance and heat dissipation
Designed, engineered, and manufactured in the UK:
Each 500R8 is extensively tested by a team of dedicated engineers to ensure reliability and consistency
