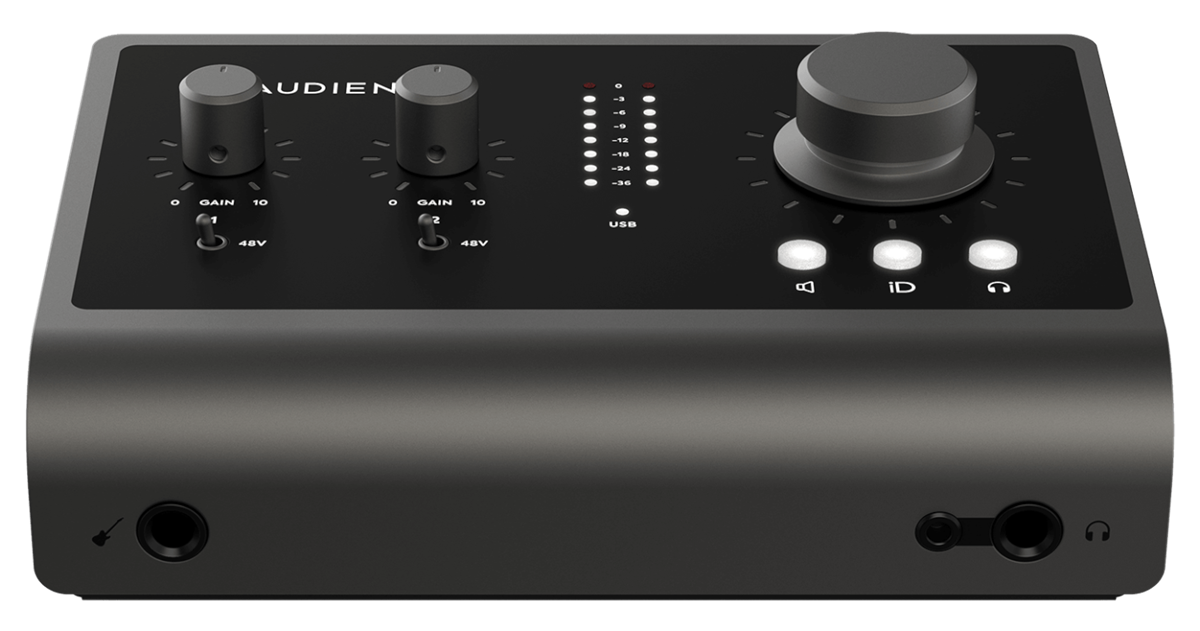

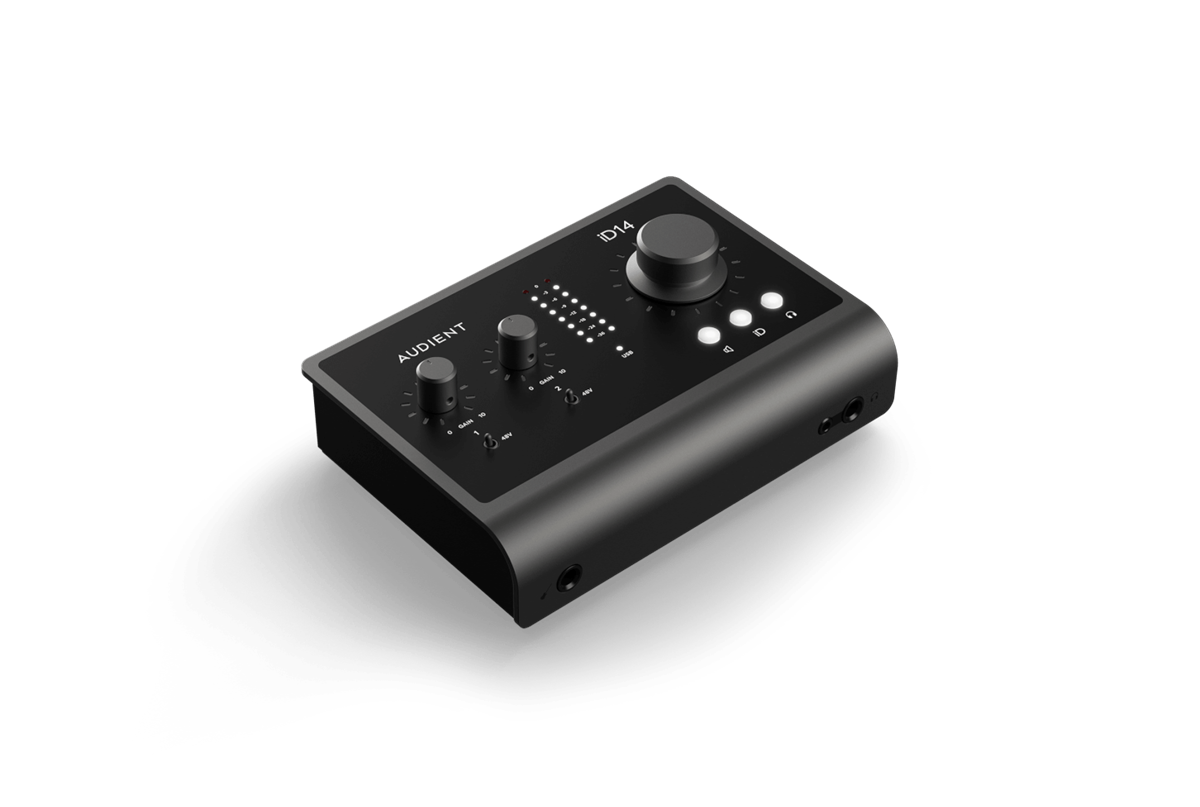

10in | 6out Audio Interface Designed to take your recordings to the next level in every way, the iD14 (MKII) delivers professional audio performance in a compact and modern desktop package, giving you everything you need to make studio quality recordings at home. Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD14’s two Audient mic pre’s will give you the professional sound you deserve. Its all in the details iD14’s converters make sure you hear every nuance, every detail of your audio, enabling you to take your recordings to the next level. Offering an incredible 120dB of dynamic range you will hear your audio more accurately, make better creative decisions and experience stunning clarity directly from your desktop. Be immersed Connect and listen to your mixes through two sets of speakers with iD14’s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists. Dual Headphone Outputs Powerful performance Equipped with both a jack and mini jack connection and a powerful headphone amp capable of driving headphones up to 600Ohms, iD14 is ready to take on the most demanding recording sessions. JFET Instrument Input Plug and play Designed to replicate the input stage of a classic valve amplifier, iD14’s harmonically rich JFET Instrument Input is the perfect sonic foundation for your guitar or bass and amp sims. More channels, more possibilities Plan for the future with iD14’s digital input. Supporting both ADAT and SPDIF, iD14 gives you the option to add up to eight extra mic pre inputs letting you expand your rig and take on larger sessions. Specs: 24 bit / 44.1 - 96 kHz
ADC dynamic range: 121 dB
DAC dynamic range: 126 dB
2 x Audient Class A console microphone preamps
2 Combined mic / line inputs: XLR / jack combination socket
Mic Gain 58 dB,
48 Volt phantom power (only with power pack operation)

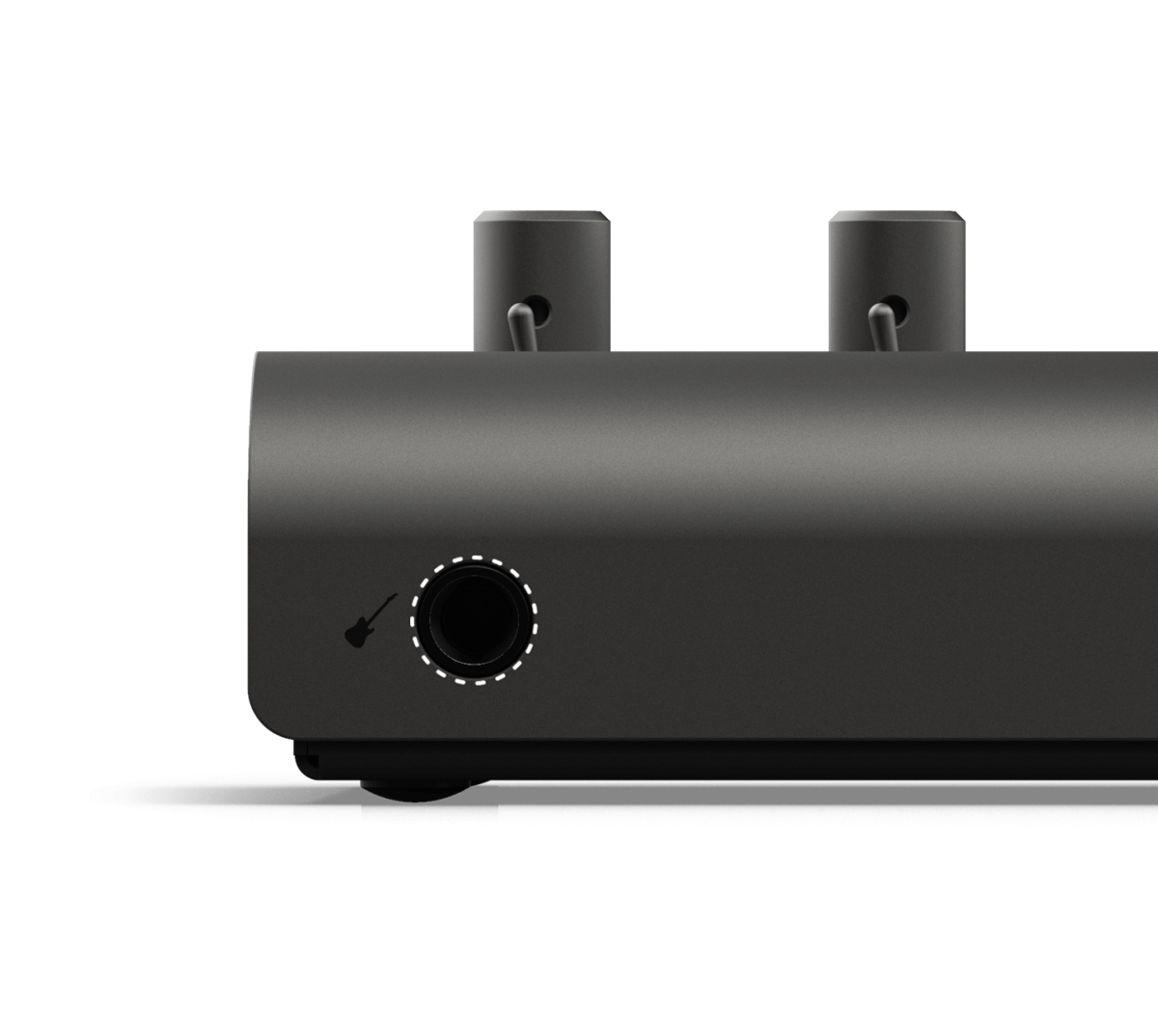

Discrete JFET instrument input on the front
D.I. Gain: -5 to 45 dB (incl. +10 dB software boost)

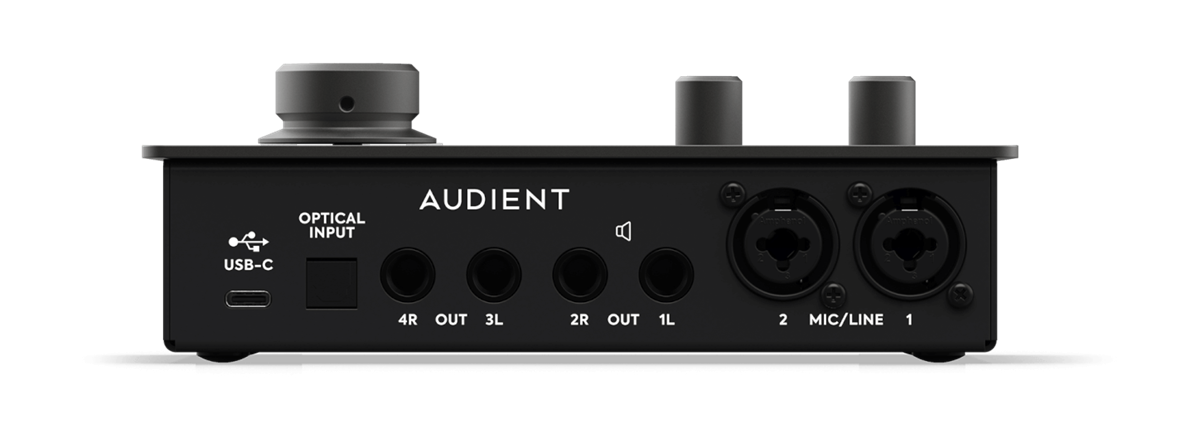

Combined ADAT and S / PDIF input (TOSLINK)
4 Line outputs: 6.3 mm jack
Speaker mute button
Powerful headphone amplifier with independent DAC
Headphone outputs: 1x 6.3 mm jack, 1x 3.5 mm jack
iD Control regulator with ScrollControl for DAW integration
Desktop housing made entirely of metal
Dimensions: 173 x 120 x 62 mm
Weight: 1.25 kg
