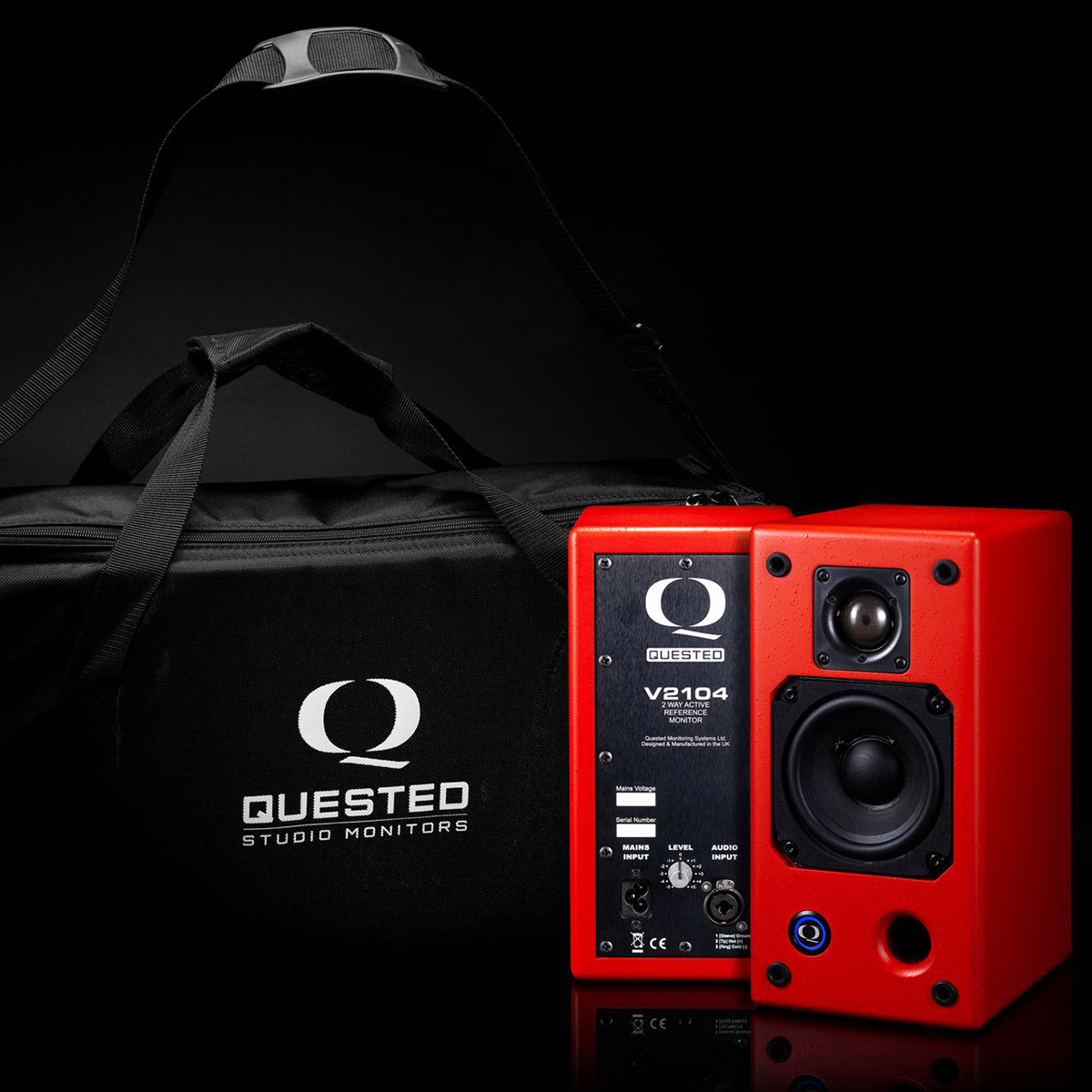

Quested MiniRedz - Aktivni Monitori - Par

Specs :

Dimensions:132(w) x 262(h) x 160(d) mm / 5.1”(w) x 10.3”(h) x 6.2”(d)

Weight:3.5kg / 7.7lb

Drivers:Low Frequency 1 x 100mm(4”) LF

High Frequency: soft dome – 1 x 28mm (1. 1/8”)

Maximum SPL: 100 dB continuous pink noise @ 1m Leq 1 minute. 106 dB per pair continuous pink noise @ 1m Leq 1 minute

Frequency Response: 100 Hz – 19 kHz ± 2dB / 88 Hz -6 dB

Input

Connector: XLR and 1 inch Jack combo socket

Impedance: 10k ohm Electronically balanced

Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold

Filters

Protective Lower Filter: -3dB @ 45Hz, 24dB/oct

Protective upper filter : -3dB @30kHz, 24dB/oct

Crossover Point: 1k67H

Power Amplifiers

HF output power: > 70W rms continuous (Note 1)

LF output power:
> 70W rms continuous (Note 1)

THD: Typ 0.01% @ 1kHz

Note 1: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (>100mm clearance) around the amplifier rear panel and ambient temperatures is

Indication

Power On: Front mounted switch with ring mounted LED.

Blue LED indicates power, Red LED 2 dB before amplifier clip.

Power Requirements

Voltage: Set by internal plugs - nominal 115V or 230V @ 45-63Hz AC.

230V setting: Min 180V (restricted output power): Max 264V

115V setting: Min 90V (restricted output power): Max 132V

Consumption

Max: 10W at 230 Vac

This product is built to conform to the requirements for CE marking.
