Schecter Sunset Strip BR BLK (TRAD) 6107

Sunset Strip BR BLK(TRAD) 6107

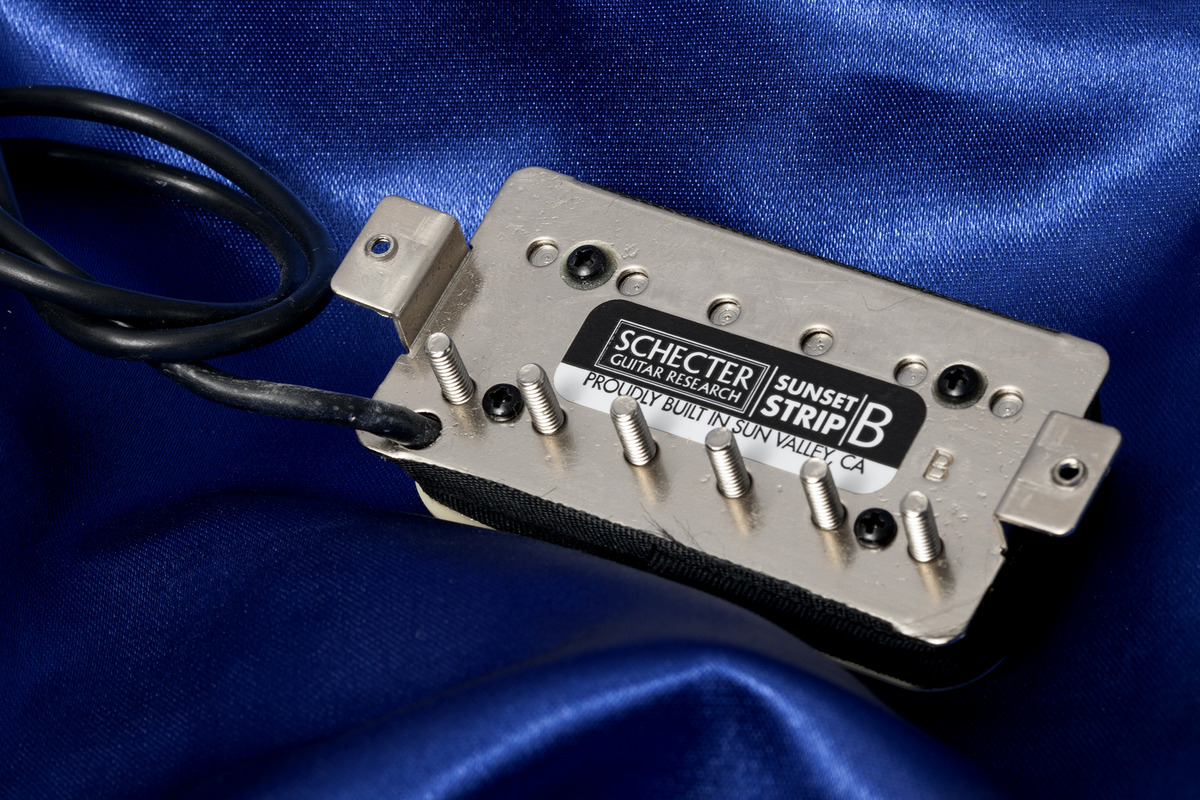

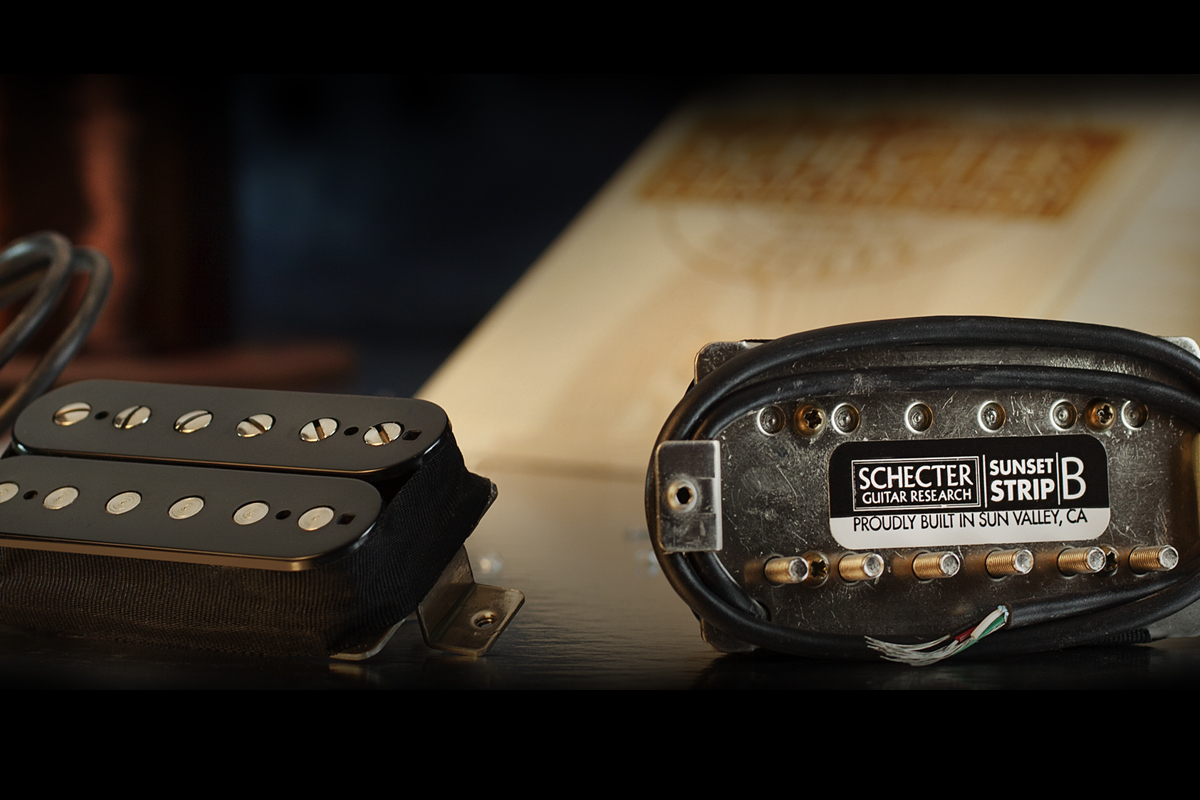

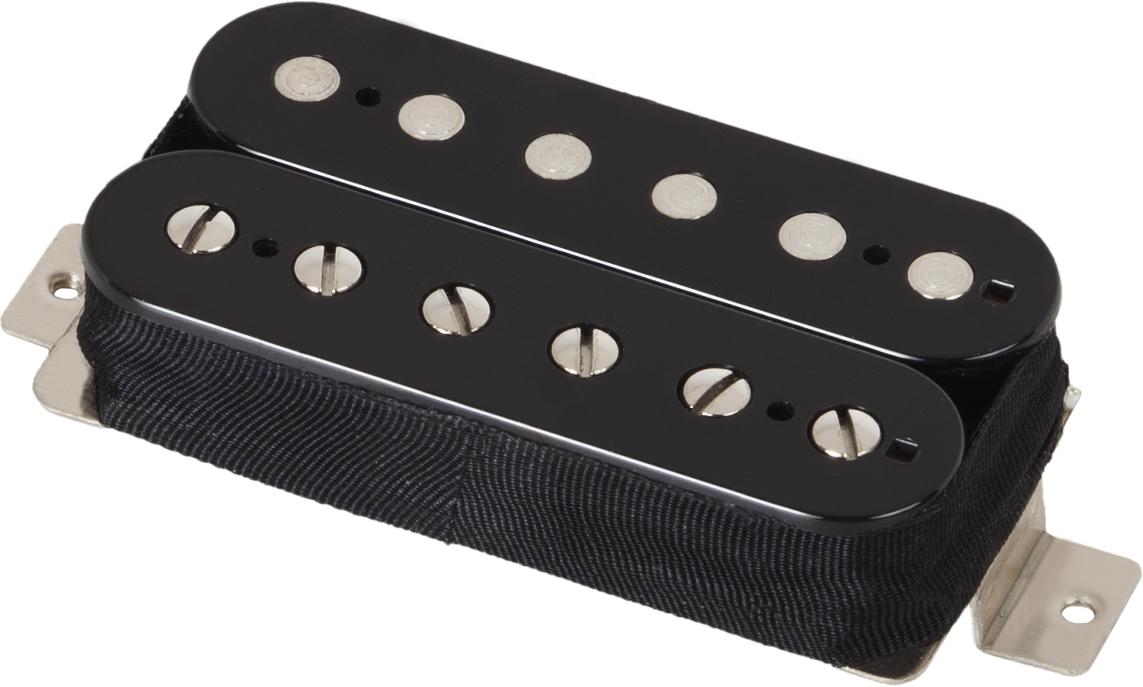

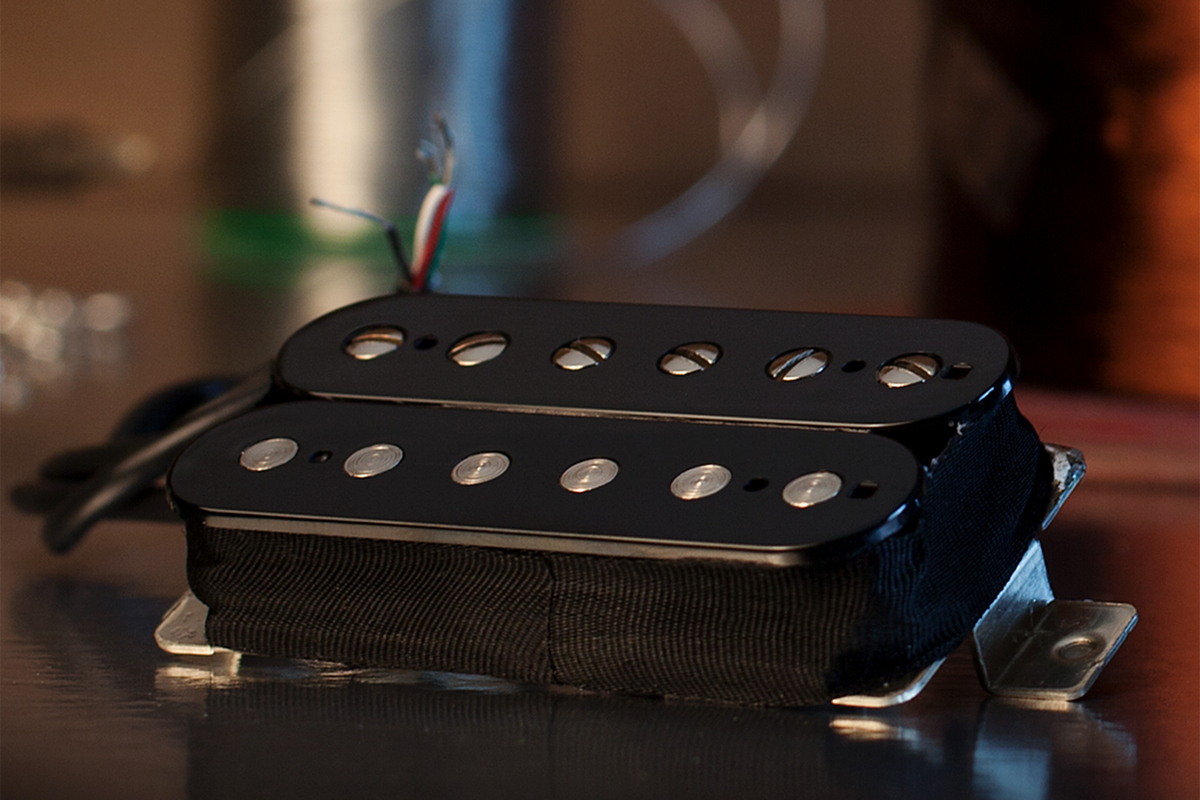

SUNSET STRIP Bridge TRADITIONAL SPACING Agile and hostile, the Sunset Strip delivers a barely street legal mixture of power, gain and sustain. Its ceramic magnet provides increased tonal dynamics and natural compression that allows your guitar to cut through any mix. In addition, the four conductor wiring lets you to split the coils, thus giving you a vast array of tonal options. Design Bridge Position Traditional Spacing (49mm) Tapped Design 4 Conductor Harness Solid Nickel silver base plate DC Resistance Primary wind 6.3 K ohms 12.6 K ohms at full power Gauss Field Ceramic 8 direct couple construction Pole Pieces 6 @ .1875" nickel plated carbpn steel 6 #5 slot pan head philips, nickel plated carbon steel

Specifications:

Spacing: 49mm Traditional Spacing
Wiring/Design: 4 Conductor Harness / Split Coil Design
Baseplate: Solid nickel/silver baseplate
Pole Pieces: 6 @ .1875" nickel plated carbon steel / 6 #5 slot pan head Philips nickel plated carbon steel
Magnet: Ceramic 8 direct couple construction
Output at full power: 12.6k ohms
