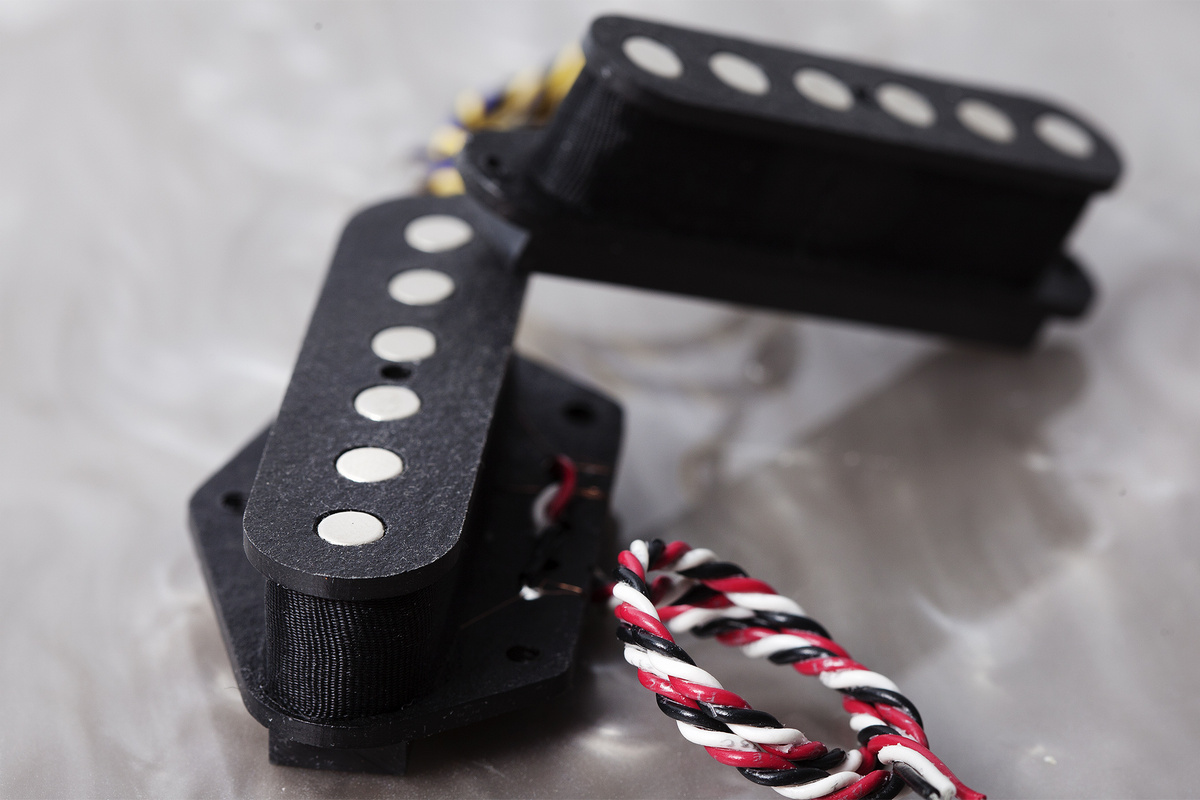

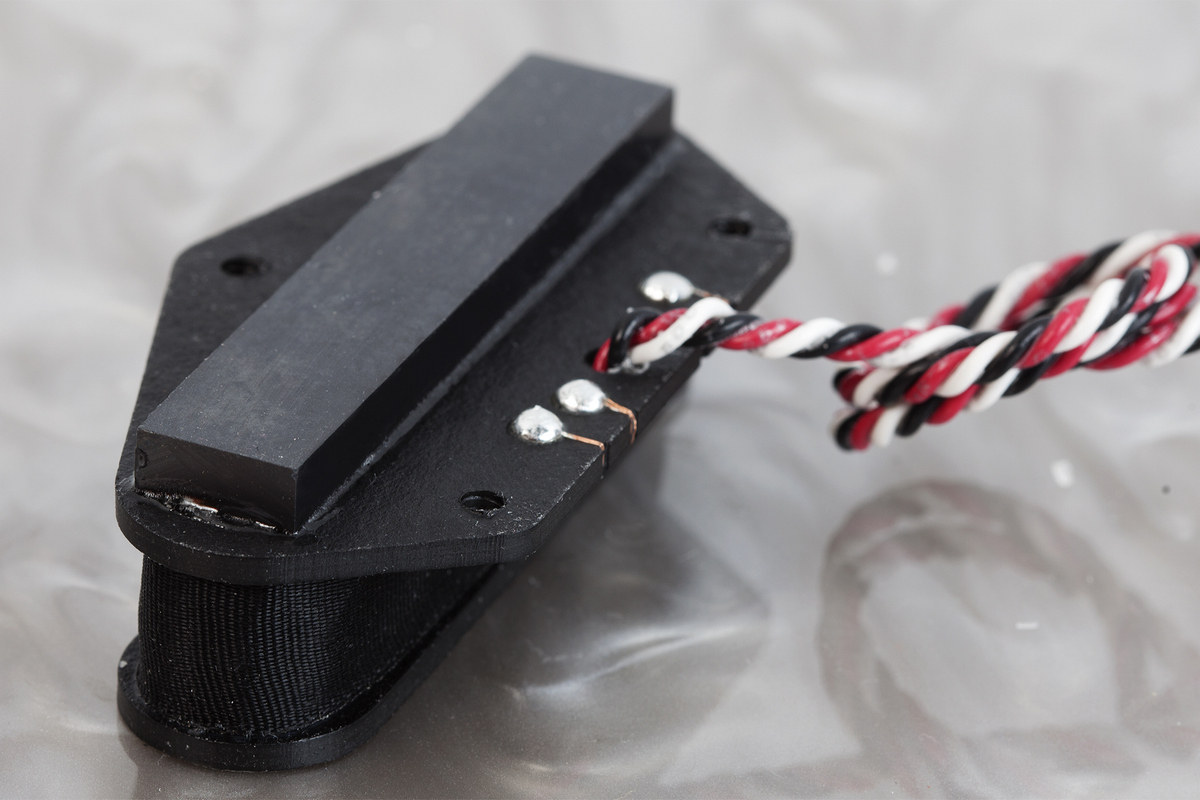

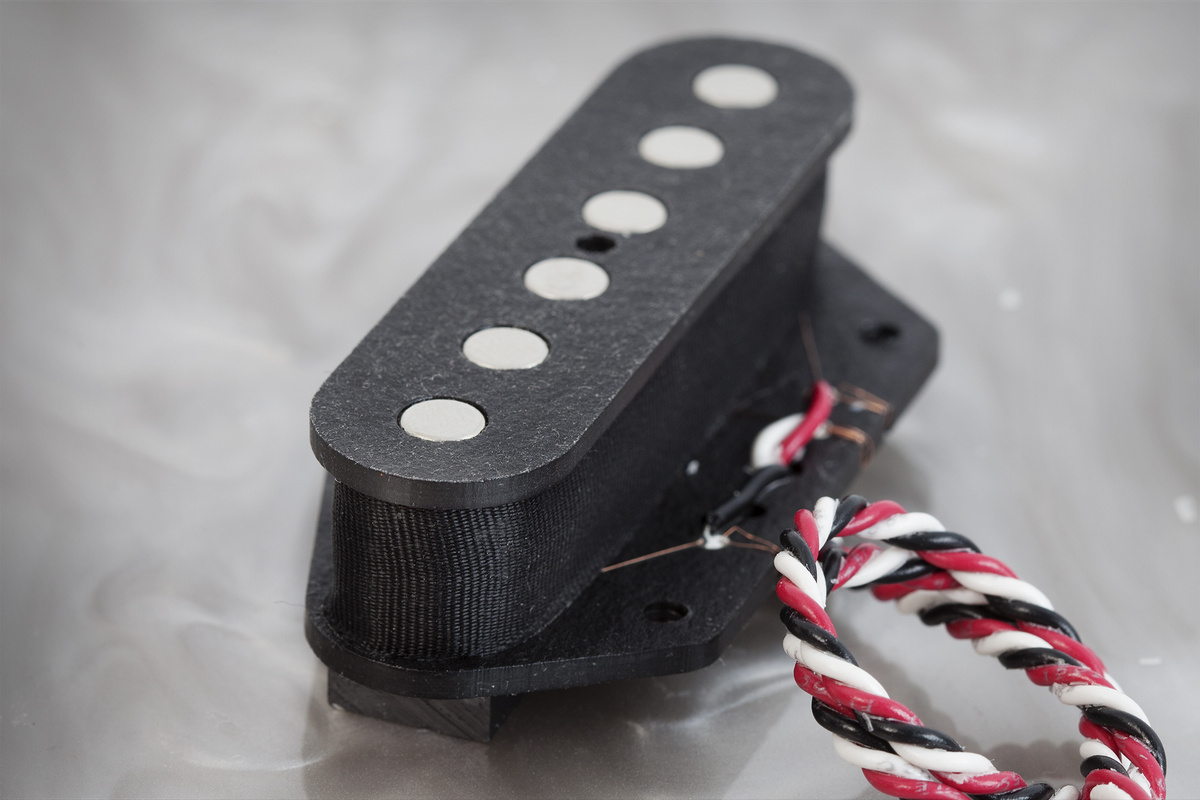

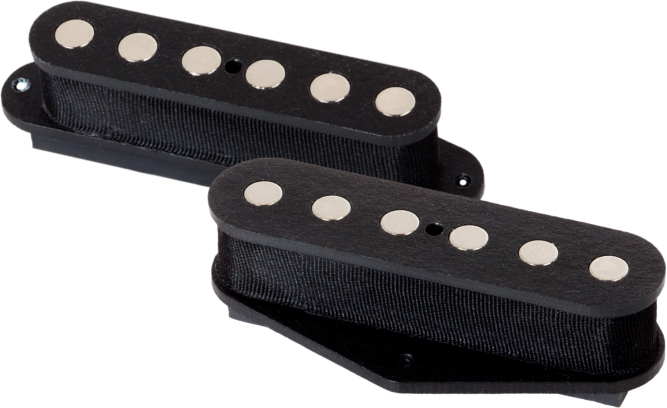

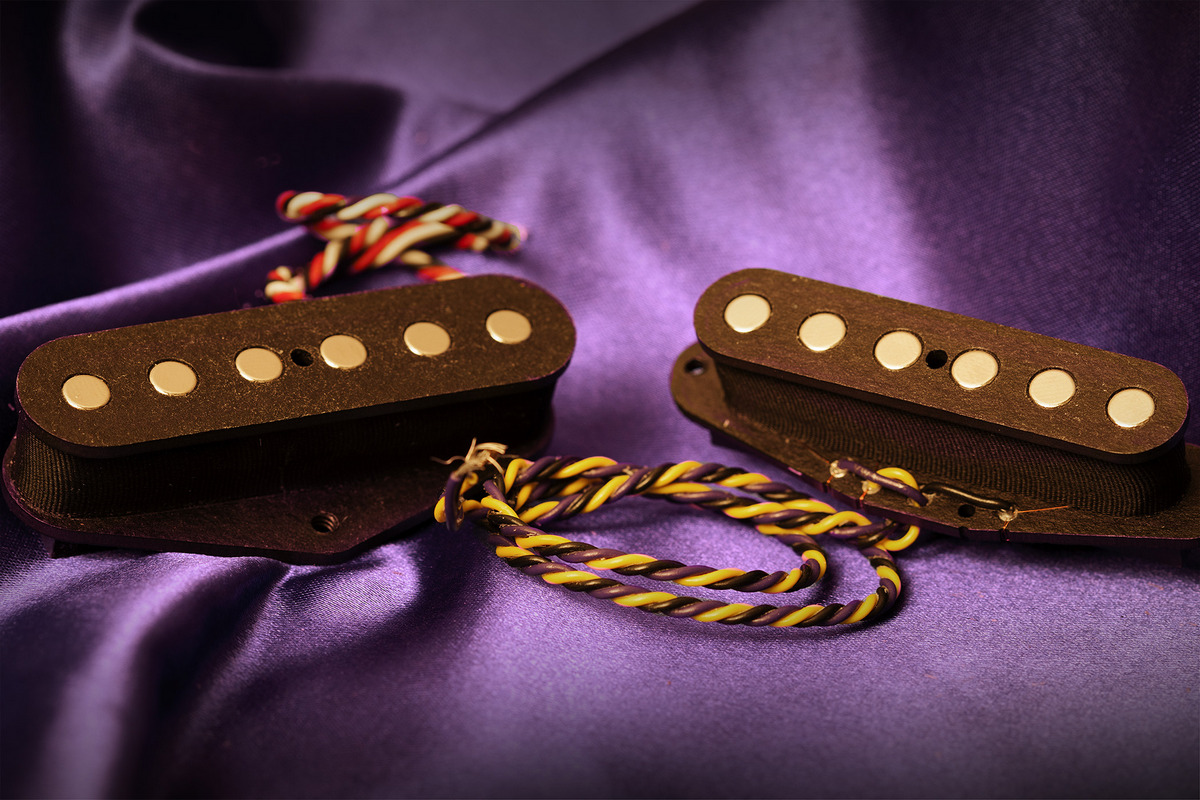

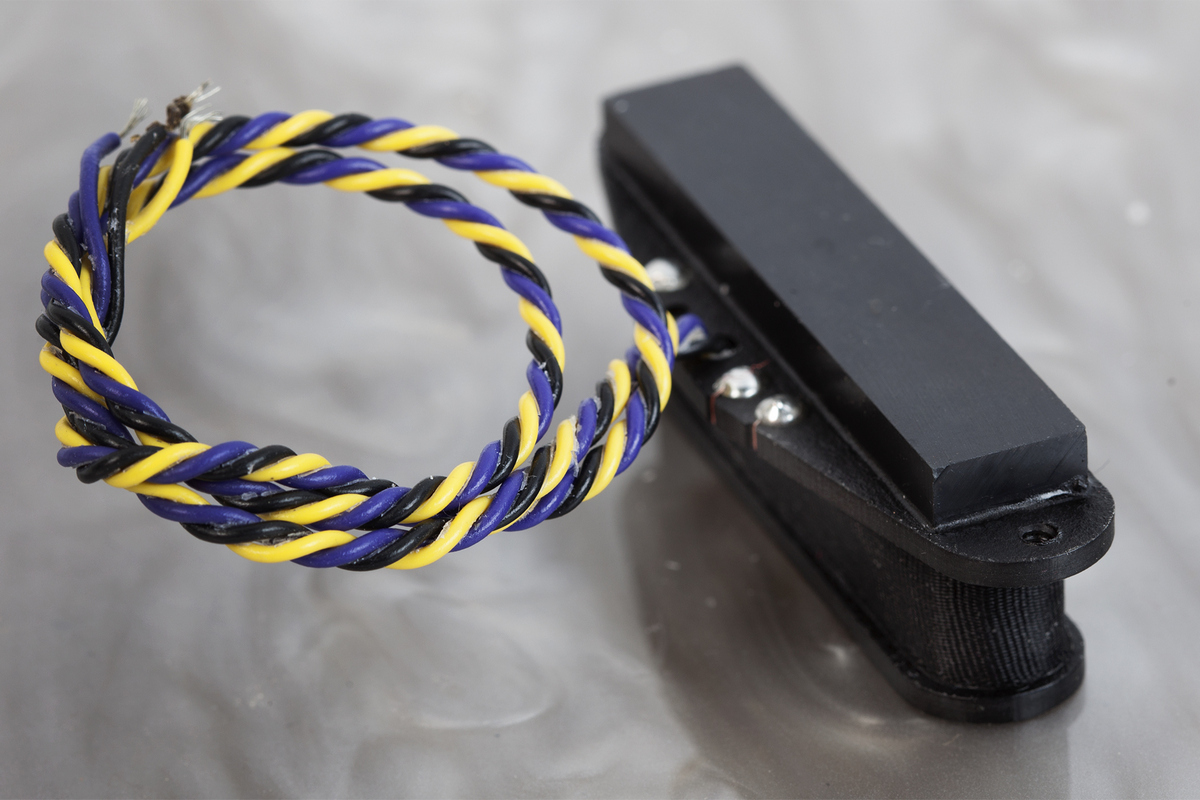

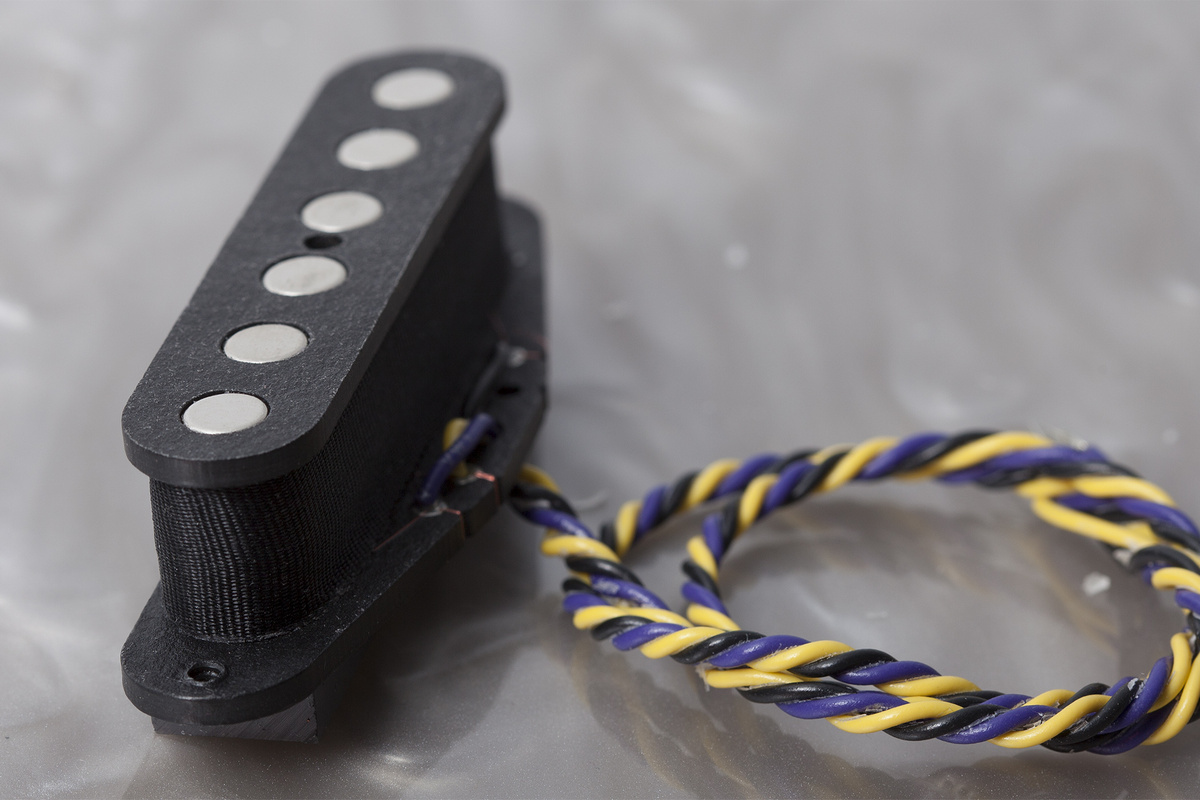

Schecter MonsterTone PT SET 6473

Schecter MonsterTone PT SET 6473

MonsterTone Calibrated Set UNIVERSAL SPACING Design Bridge Position Universal Spacing (53mm) Tapped Design 3 Conductor Teflon coated wire Harness DC Resistance Primary wind 3.07 K ohms 5.7 K ohms at full power Gauss Field Ceramic direct coupled construction Pole Pieces 6 @ .25" nickel plater carbon steel Traitional VFB bobbin construction Design Middle Position Universal Spacing (53mm) Tapped Design 3 Conductor Teflon coated wire Harness Reverse wound/Reverse polarity DC Resistance Primary wind 3.07 K ohms 5.7 K ohms at full power Gauss Field Ceramic direct coupled construction Pole Pieces 6 @ .25" nickel plater carbon steel Traitional VFB bobbin construction Design Neck Position Universal Spacing (53mm) Tapped Design 3 Conductor Teflon coated wire Harness DC Resistance Primary wind 3.07 K ohms 5.7 K ohms at full power Gauss Field Ceramic direct coupled construction Pole Pieces 6 @ .25" nickel plater carbon steel Traitional VFB bobbin construction

Specifications:

Output at full power Bridge -7.7k ohms / Neck 6.6k ohms
Spacing-Bridge 56mm Universal Spacing / Neck 51mm Universal Spacing
Wiring/Design-3 Conductor Teflon Coated Wire Harness / Tapped Design
Baseplate- Traditional VFB bobbin construction
Pole Pieces-6 @ .25" nickel plated carbon steel
Magnet-Ceramic direct coupled construction
