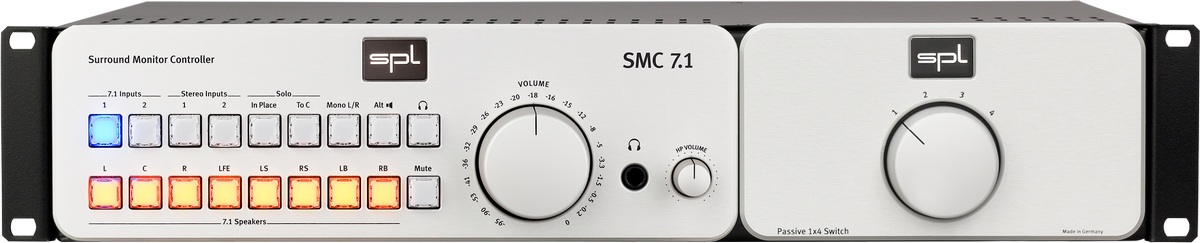

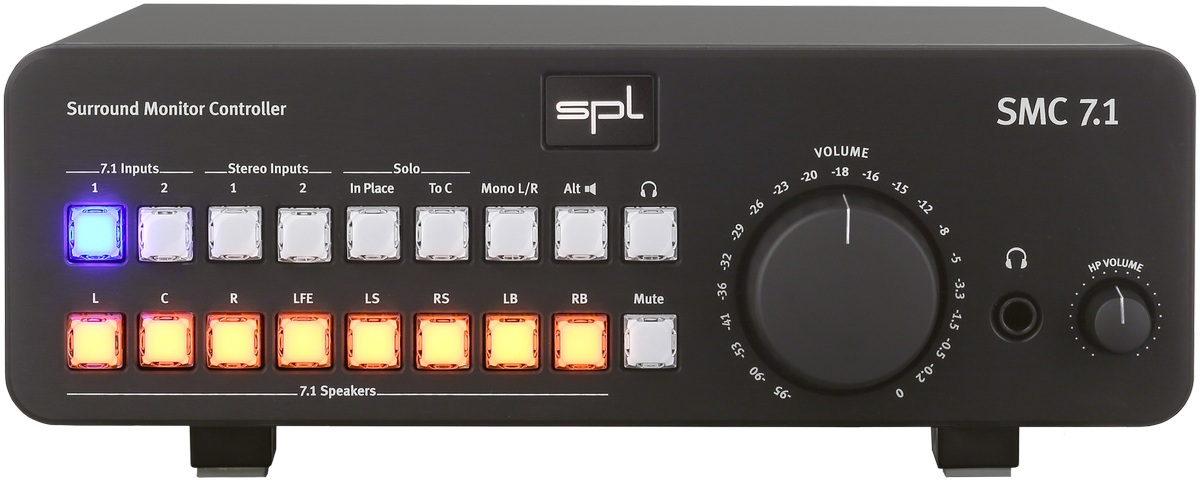

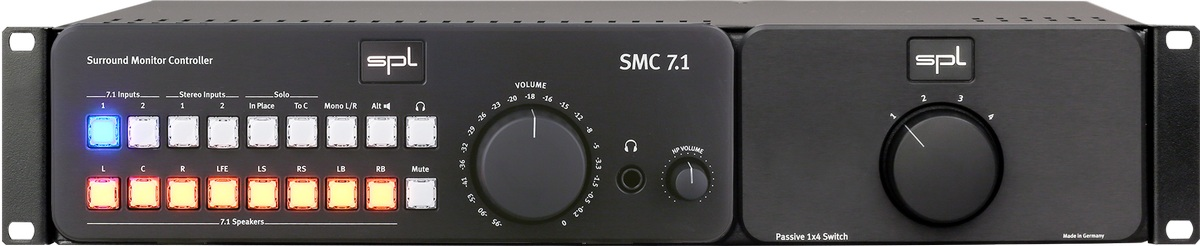

SPL SMC 7.1 distribucija slušanja za surround 7.1

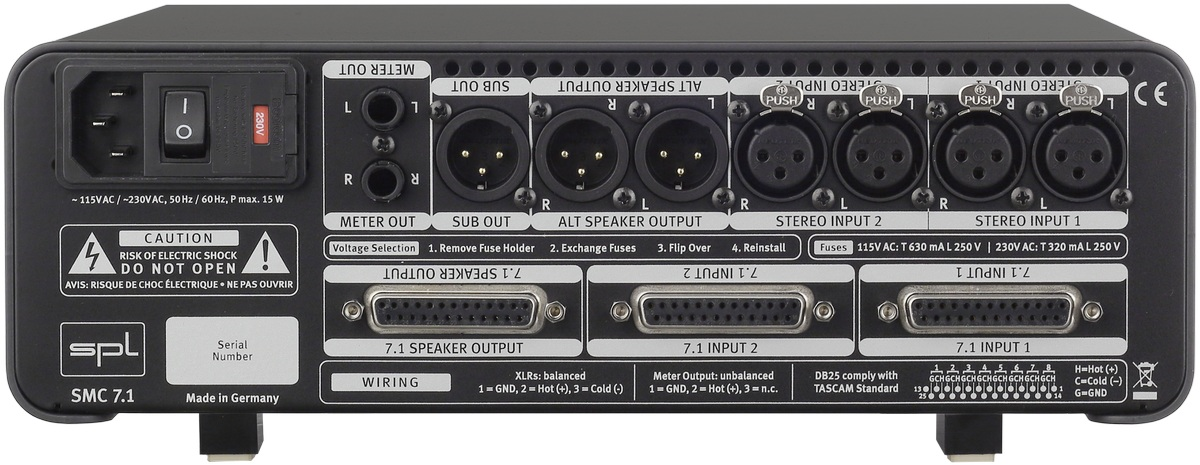

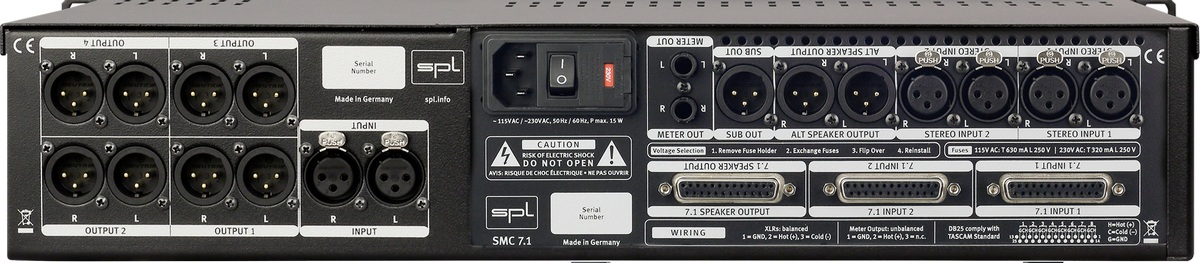

Sub-D-25-Input Sub-D-25 (TASCAM-Standard) Impedance: 20 kOhms CMR: -82 dB Max. Input level: +22 dB XLR-Input

Neutrik XLR, symmetrisch, Pin 2 = (+) Impedance: 20 kOhms CMR: -82 dB Max. Input level: +22 dB IZLAZI:

Sub-D-25-Output Sub-D-25 (TASCAM-Standard) Frequency range: 10 Hz to 150 kHz ( -3 dB) Crosstalk at 1 kHz: -92 dB THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load) Noise (A-weighted): -93 dB Dynamic range: 115 dB XLR-Output

Neutrik XLR, balanced, Pin 2 = (+) Frequency range: 10 Hz to 150 kHz ( -3 dB) Crosstalk at 1 kHz: -92 dB THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load) Noise (A-weighted): -93 dB Dynamic range: 115 dB Headphone Output

6,35 mm TRS connector Pin wiring: Tip = Left, ring = right, sleeve = GND Impedance: 22 kOhms Frequency range: 10 Hz to 80 kHz ( -3 dB) Crosstalk at 1 kHz: -70 dB THD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load) Noise (A-weighted): -93 dB Dynamic range: 113 dB INTERNI RADNI NAPONI:

Analog: +/- 18 V Power supply Mains voltage (switchable): 230 V AC / 50Hz or 115 V AC / 60Hz Fuses: 230 V = T 500 mA; 115 V = T 1 A Power consumption: max 25 VA DIMENZIJE I TEŽINA:

(WxHxD) 10.95 x 4.6 x 13.1 in (278 x 103 x 333 mm) 9.04 lbs (4.1 kg), unit only 11.02 lbs (5.0 kg), shipping
