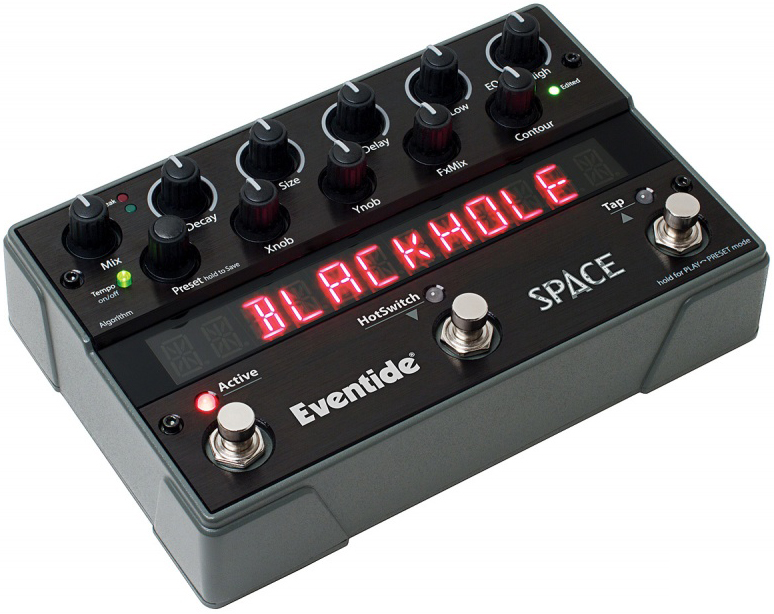

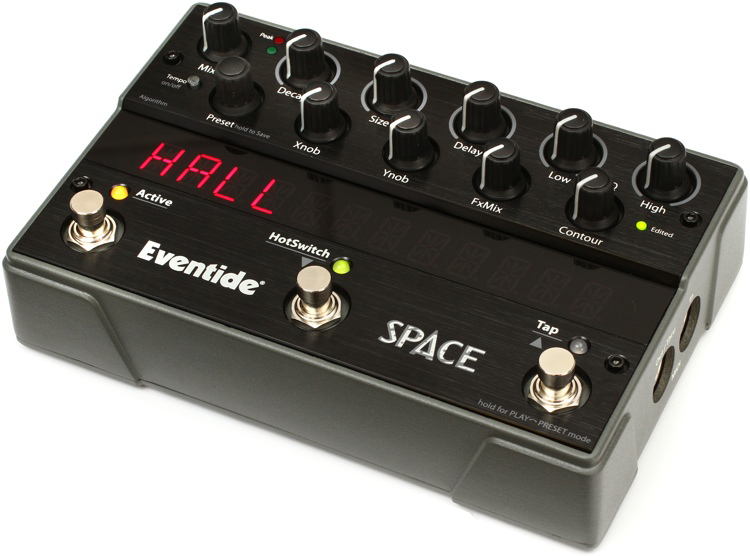

Eventide Space Reverb pedala

Reverb 2016 sadrži Legendarne reverb algoritme preuzete sa Eventide SP2016. Stereo Room, Room Reverb i High Density Plate. Svaki aspekt originalnog efekta je preslikan, uključivši svaki detalj korisničkih parametara.

Digital Input/Output Digital Input Digital S/PDIF Input sempl Rate: 44.1kHz - 48kHz (downsempld to 40kHz) Connector: Coaxial, RCA type Digital Input is selected via front panel switch. Digital Output Digital S/PDIF output sempl Rate: 44.1kHz or 48kHz with ext clock Connector: Coaxial, RCA type Digital output is always active at 44.1 kHz when not using digital input audio Input Connectors 1/4" T/R/S phone jacks (2) XLR 3-wire balanced (2) Impedance +4dB/Bal switch position: 100kOhm -10dB/Unbal switch position: 50K Ohms Levels +4dB/Bal switch position: 2dBu min for full scale +20dBu max -10dB/Unbal switch position: -14dBu min for full scale +8dBu max audio Output Connectors 1/4" T/R/S phone jacks (2) XLR 3-wire balanced (2) Impedance 125 Ohms, each side, balanced Levels +18dBm max, full scale, balanced/unbalanced General audio Frequency Response Dry 20Hz-20kHz, +/-1dB Wet 20Hz-16kHz, +-1dB Dynamic Range >90dB 20 Hz - 20 kHz, Non A-weighted sempl Rate 40.0 kHz Conversion 24 Bits A/D, 24 Bits D/A Environment Operating temperature: 32° to 104°F (0° to 40°C) Storage: –20° to 170°F (-30 to 75°C) Relative humidity: 95% non-condensing Throughput delay Less than 2 ms. THD
