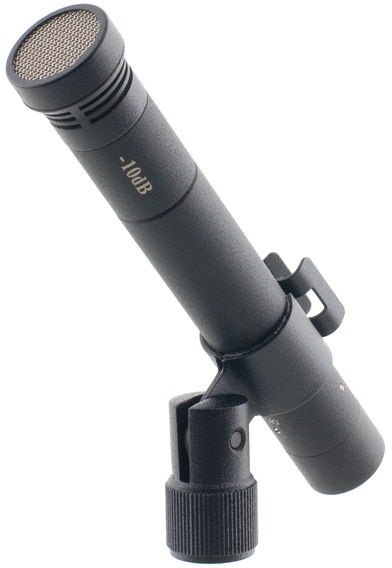

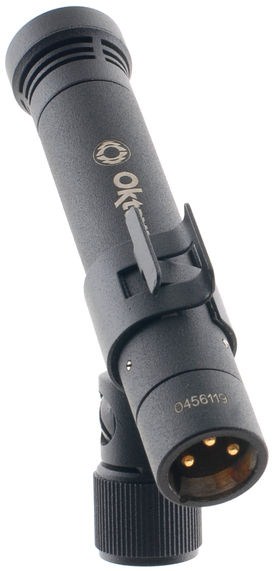

Oktava MK-012-01 MSP2 Black

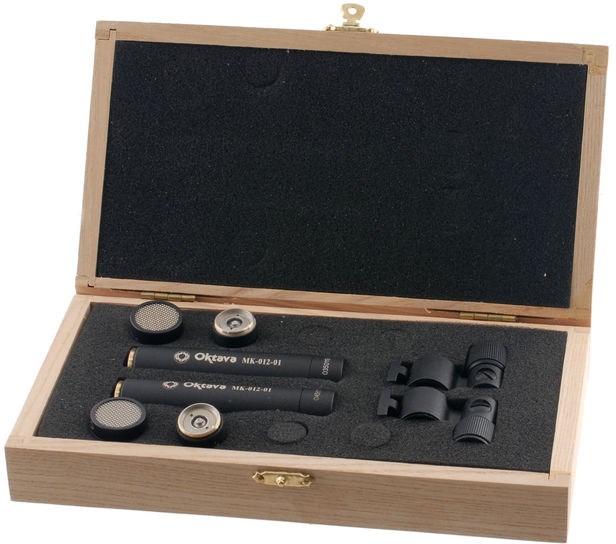

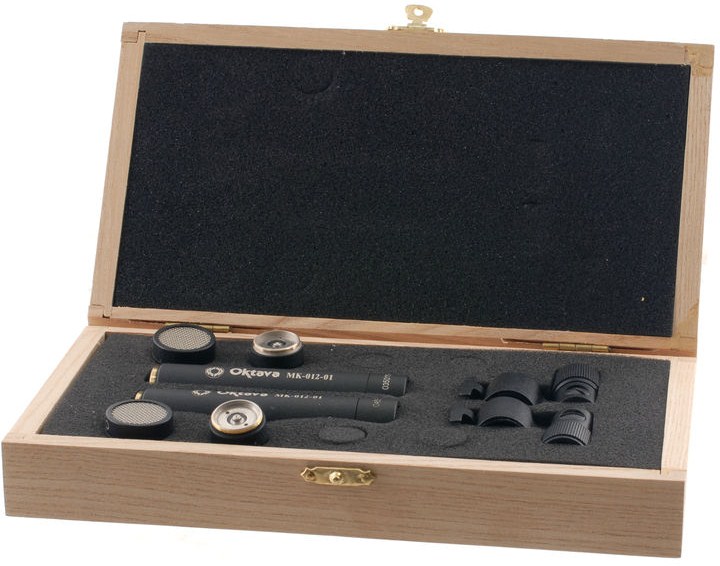

Oktava MK-012-01 MSP2 Black in Wood Box Description

The MK-012-01 is a compact, high quality capacitor microphone. The wide, flat response ensures that all sounds are captured with a high degree of accuracy.

The MK-012-01 is suitable for use in any situation where an accurate sound is required, the size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio.

Oktava MK-012-01 MSP2 Black in Wood Box Specifications

Mic type: Small diaphragm condenser
Polar Pattern: Cardioid
Freq. Response: 20-20000Hz
Phantom voltage required: 48 +- 2V
Full impedance: module less than 300 ohms
Weighted SPL: (ref. DIN 45412) 18 dBA
Maximum SPL: in 250-8000Hz range, (less than 0.5% THD) 130 db
Free field sensitivity: at 1KHz: 10 mV/Pa
Free field sensitivity: roll off from 40Hz to 20KHz should not exceed +- 3 db
Weight: 70 gr
Length: mm 128
Max diameter/width:, mm 23
Accessories included: Mic holder
The difference in free field sensitivity between 0° and 90° should be as follows:
For cardioid capsule: in 250-8000 Hz range: no less than 4 db Average sensitivity difference between O° and 180° for cardioid capsule in 63-12500 Hz range: 16 db
