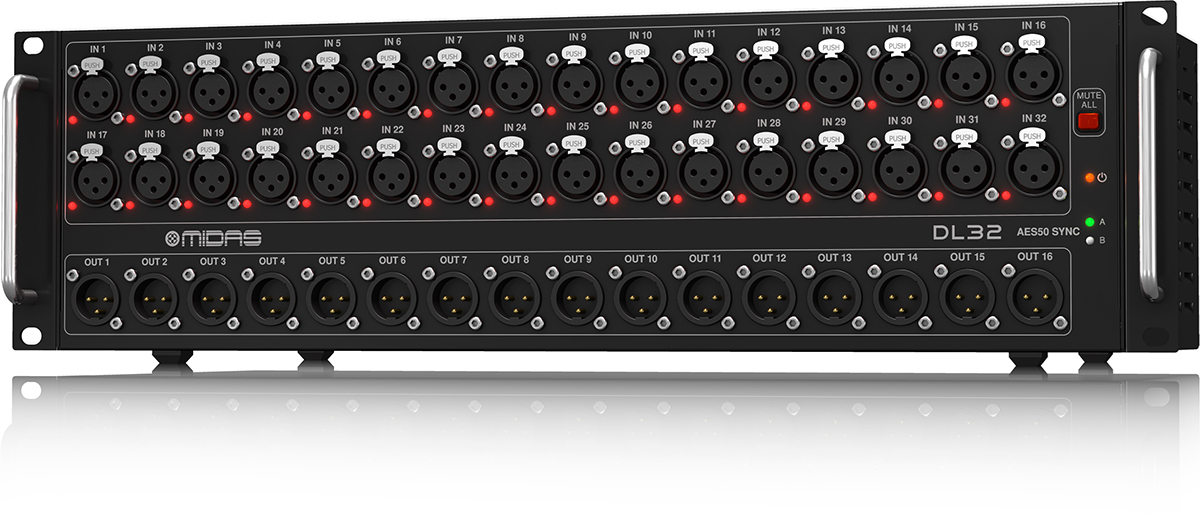

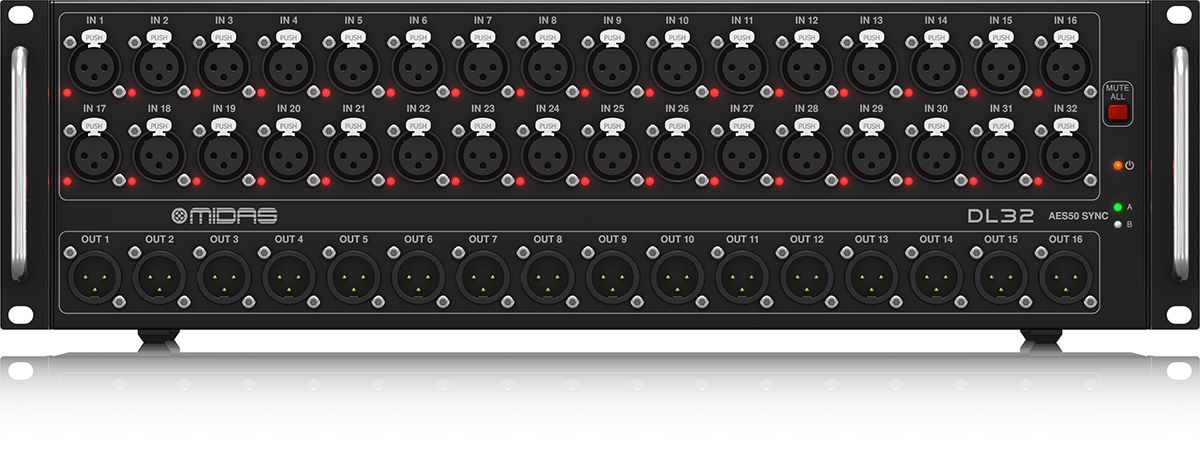

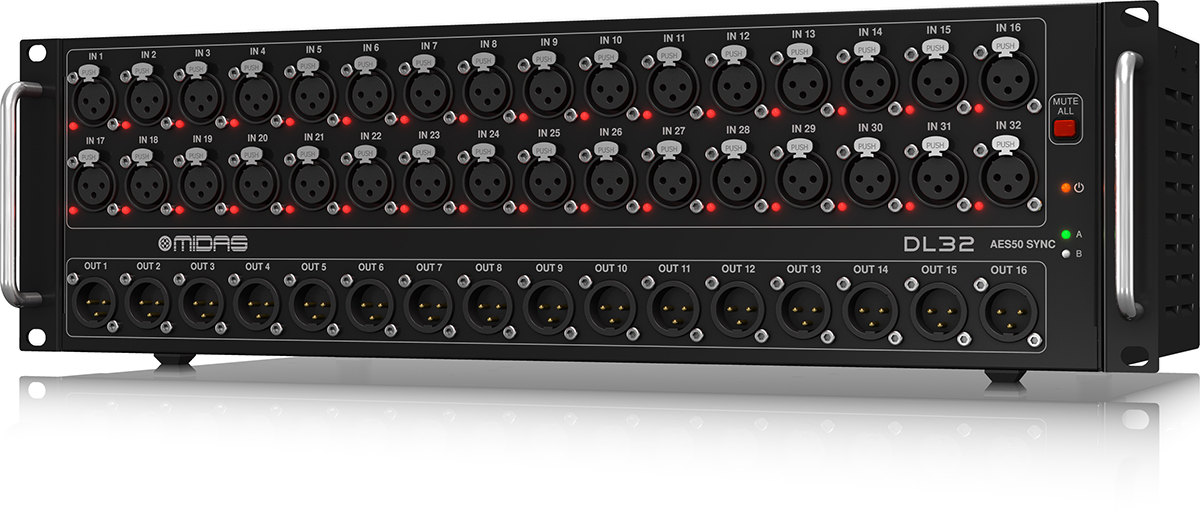

Midas DL32 modul/stagebox

32 Input, 16 Output Stage Box with 32 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32MIDAS PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

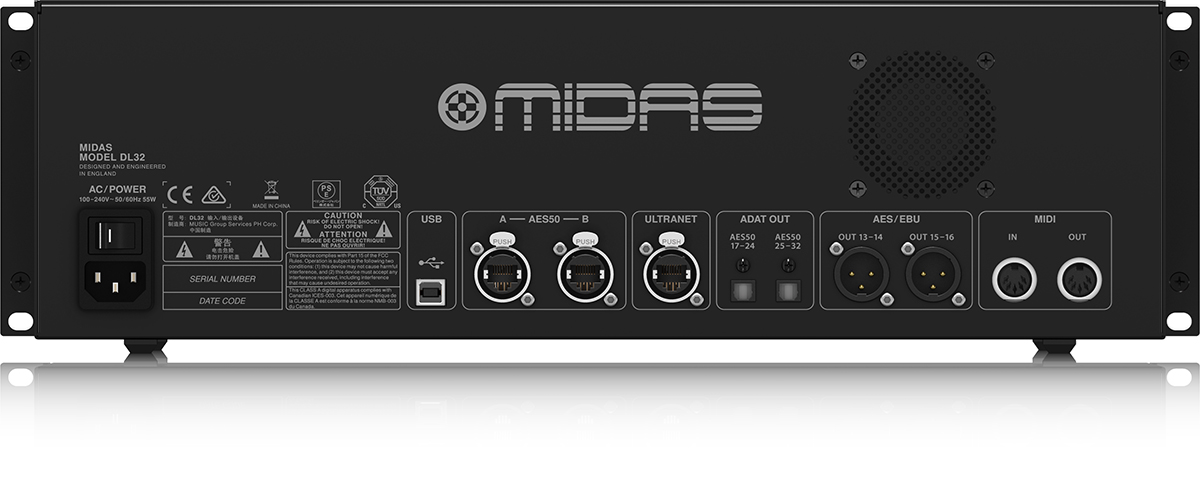

32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power 16 electronically balanced low impedance line level outputs ULTRANET personal monitoring system connectivity for in-ear applications Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required Automatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs Remote operation via shielded CAT5e cable up to 330 ft / 100 m length Mute All function for quietly patching any inputs on stage MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices Features Neutrik etherCON* AES50 and ULTRANET network ports Rugged 3U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply Designed and engineered in the U.K.
