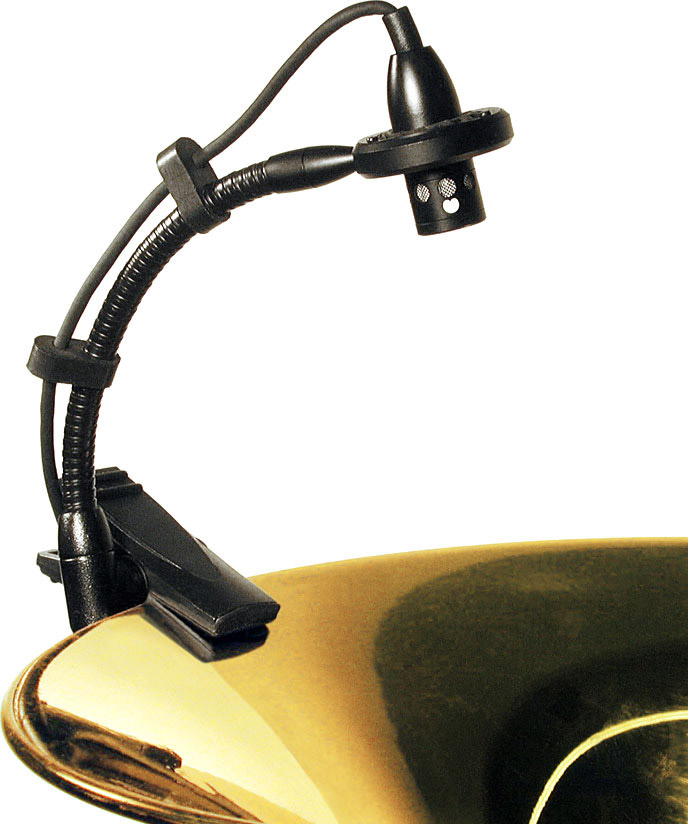

The ADX-20i is a pre-polarized condenser microphone designed to handle a wide variety of clip-on applications. The ADX20i is sonically superior as well as aesthetically pleasing and is ideally suited for saxophone, trombone, trumpet and other brass instruments. With a smooth uniform response over a frequency range of40 Hz – 20 kHz, the ADX-20i provides a rich, warm sound not typical of microphones this size. It is machined from solid brass and has a low reflective black e-coat finish. The ADX-20i operates on phantom power (9-52 volts) with the preamp module provided (APS-910). It may be used in battery mode with optional phantom power adapter (APS-911). The ADX-20i can be utilized with a wireless system. Depending on the brand of wireless and the connector configuration of the instrument body pack, the ADX-20i connector would need to be modified accordingly. Low noise electronic circuitry, and balanced low impedanceoutput allow for interference free performance even with long cable runs.Features:High tension spring clamp keeps mic in placeMulti-position gooseneckHighly accurate sound reproductionAvailable in hypercardeoid version (ADX-20i/hc)Specifications:
Transducer Type Condenser (pre-polarized)Frequency Response: 40 Hz - 20 kHzPolar Pattern: Cardeoid, Hypercardeoid (ADX20i-hc)Output Impedance: 250 Ohms balancedOpen Circuit Sensitivity: 5.2 mVEquivalent Noise Level: 29 dB (A weighted)Signal to Noise Ratio: 65 dB (ref 1k @ 1 Pascal)Power Requirements: 9 - 52v phantomMaximum SPL: 130 dBCable/Connector Shielded 6’ cable terminating to aminiature 3 pin XLR-fPhantom Adapter: mini XLR male - XLR malePolarity: Positive voltage on pin 2 relative to pin 3ofoutput XLR connectorHousing: Machined BrassGooseneck: Flexible steelWeight: 1.7 oz/4.7 grams (without cable)
