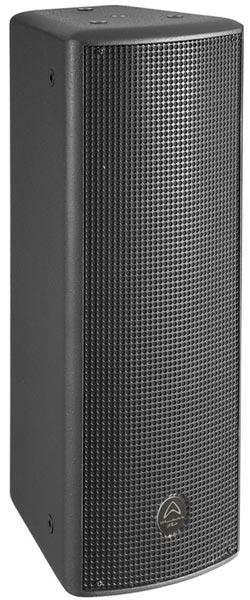

Wharfedale Pro Programme 205 Black instalacijski zvučnik
SLIČNI PROIZVODI
SPECIFIKACIJE:
2 x 5.0” 2-way passive
1.0” titanium done HF
M8 x 18
100 watts AES (RMS)
200 watts Programme
400 watts Peak
117 dB Max SPL @ 1 meter
GENERAL INFO
SYSTEM TYPE 5"x2 2-way with 100V/70V transformer (T models)
FREQUENCY RESPONSE +/- 3DB 70Hz-20KHz
SENSITIVITY (DB 1W@1M) 91dB
SYSTEM IMPEDANCE 8 ohm
MAXIMUM SPL PEAK DB 117dB
POWER HANDLING (WATTS)
CONTINUOUS RMS 100W
PROGRAM 200W
PEAK 400W, Transfomer Taps (100V) 20,40,80W(205T), Transformer taps (70V) 10,20,40,80W(205T)
LF DRIVER
LF DRIVER SIZE MM / INCHES 5"x2
HF SECTION
HF DIAPHRAGM MATERIAL titanium
HORN DISPERSION (H X V) 60x60
HF EXIT SIZE MM / INCHES 1"
CROSSOVER SECTION
CROSSOVER FREQUENCY / FILTER 2.3KHZ
HF DRIVER PROTECTION Pro-Tech(BULB)
PHYSICAL FEATURES
FINISH paint, black
CONSTRUCTION MATERIAL MDF board
SUSPENSION POINTS M8X18
GRILLE black full (steel)
STAND ADAPTER - BOTTOM n/a
CASTORS n/a
ENCLOSURE TYPE trapezoidal, with foam back and black bracket
IN / OUT PANEL (SPEAKER LEVEL)
INPUT CONNECTOR barrier strip
DIMENSIONS & WEIGHT
HEIGHT ( MM / INS ) 500
WIDTH FRONT / REAR / MM / INS 184
DEPTH ( MM / INS ) 205
NET WEIGHT ( KG / LBS ) 7.689Kg/8.09kg (T)
GROSS WEIGHT ( KG / LBS ) 9.45Kg/10.46kg (T)
