Studiomaster Core 151 razglasni sistem

SPECIFIKACIJE:

SUB SPECIFICATION:

Speaker – 1×15” low frequency driver
Rated power (SUB) – 700W (rms)
Amplifier power – 700W (LF) + 400W (MF/HF) (rms)
Max SPL – 128dB
Dimensions – 485mm x 725mm x 585mm
Net weight – 37.5kg

CURVE ARRAY SPECIFICATION:

Speaker MF – 3×8” Neodymium full range driver
Speaker HF – 12×1” dome tweeter
Rated power – 400W
Coverage – 100° (h) x 70° (v)
Dimensions – 255mm x 670mm x 285mm (450mm max)
Net weight – 11.5kg

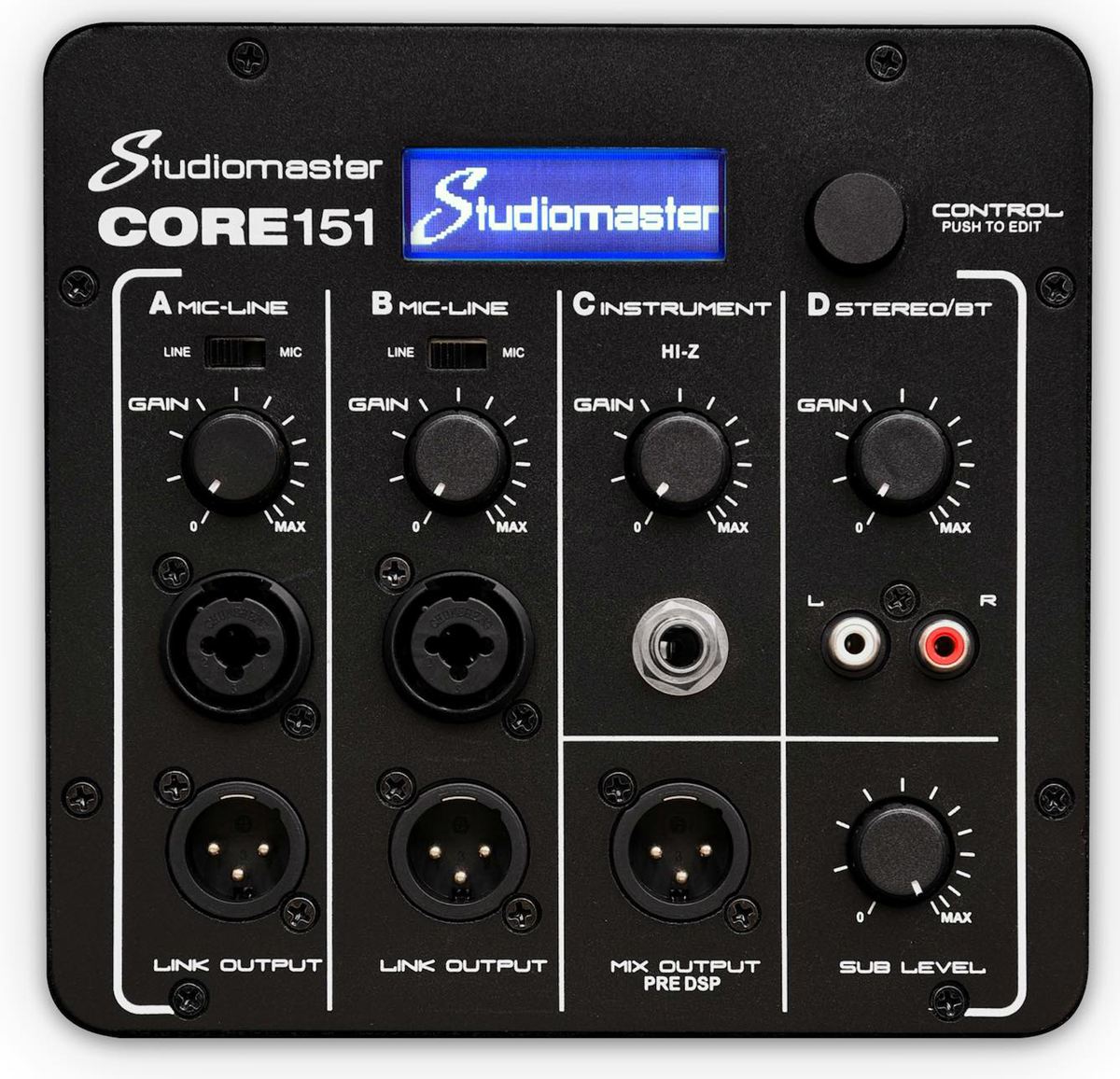

MIXER SPECIFICATION:

DSP – 24bit module with mode, EQ, limiter, delay and mix level control
Inputs – 2x mic (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth®
Outputs – 2x balanced line / link output (XLR), 1x balanced line / link MIX output (XLR)
