ICON live Console

Features

2 channel USB audio interface
Standalone operation with integrated battery and DSP
Innovative integrated DSP effects
14 sample slots importable via USB, triggerable via individual trigger buttons
8 different vocal and 4 different instrument presets
Pitch correction with 12 keys and scale selection
Pitch transposition with 12 individual buttons
4-digit display with two knobs for controlling DSP parameters
6 x 60 mm faders
Easy Bluetooth pairing for connection with your smartphone

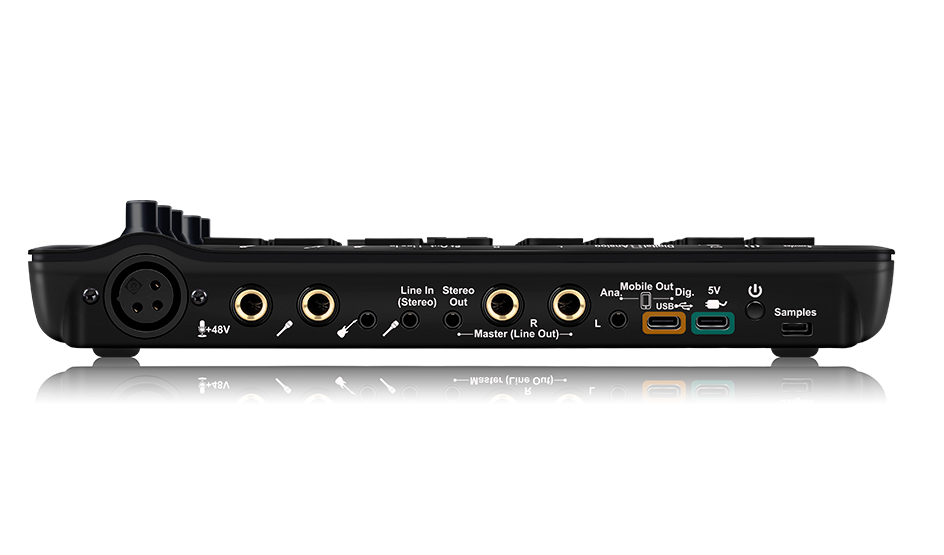

2 mic inputs (1x XLR 48V) and 1 mic/instrument input
2 analogue outputs with 1/4-inch TRS jacks
Equipped with a button for a "ducking function" (voice-over), so that the music is automatically faded out when the mic signal is present.
2 headphone outputs (3.5 mm stereo jack)
Digital (Type-C) and analogue (TRRS) connection sockets for e.g. smartphones or tablets
Compatible with MacOS and Windows
USB2.0 compatible and USB bus-powered.
Plug and Play, no driver installation necessary!

Technical Specifications

Mic Input:
Frequency Response
22Hz to 20kHz (+/-0.2dB)
Dynamic Range
90dB, A-weighted
Signal-to-Noise Ratio
-90dB, A-weighted
THD+N
Crosstalk
-85dB @ 1kHz
Input Impedance
Mic in: 1.8K Ohms, typical
Adjustable Gain
+39dB
Instrument Input
Frequency Response
22Hz to 20kHz (+/-0.2dB)
Dynamic Range
90dB, A-weighted
Signal-to-Noise Ratio
-90dB, A-weighted
THD+N
Crosstalk
-75dB @ 1kHz
Input Impedance: Inst in
500K Ohms, typical;
Total Gain Range
+38dB
Line Inputs ( Unbalanced)
Frequency Response
22Hz to 20kHz (+/-0.2dB)
Dynamic Range
90dB, A-weighted
Signal-to-Noise Ratio
-90dB, A-weighted
THD+N
Crosstalk
-90dB @ 1kHz
Input Impedance
10K Ohms, typical
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response
22Hz to 20kHz (+/-0.2dB)
Dynamic Range
100dB, A-weighted
Signal-to-Noise Ratio
-100dB, A-weighted
THD+N
Crosstalk
-90dB @ 1kHz
Nominal Output Level
Unbalanced: +2dBV, typical;
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
Frequency Response
22Hz to 20kHz (+/-0.2dB)
Power into Ohms
20 mW into 100 Ohms
THD+N
.06% (-66dB)
Signal-to-Noise Ratio
-100dB, A-weighted
Max Output Level into 100 Ohms
+2.0dBV, typical
Load Impedance
32 to 600 Ohms
