LD Systems PPA 2 phono pretpojačalo i ekvilajzer

The LD Systems PPA 2 is a very compact analogue phono preamplifier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect to devices without any phono input, such as mixers, PA power amplifiers or sound cards.

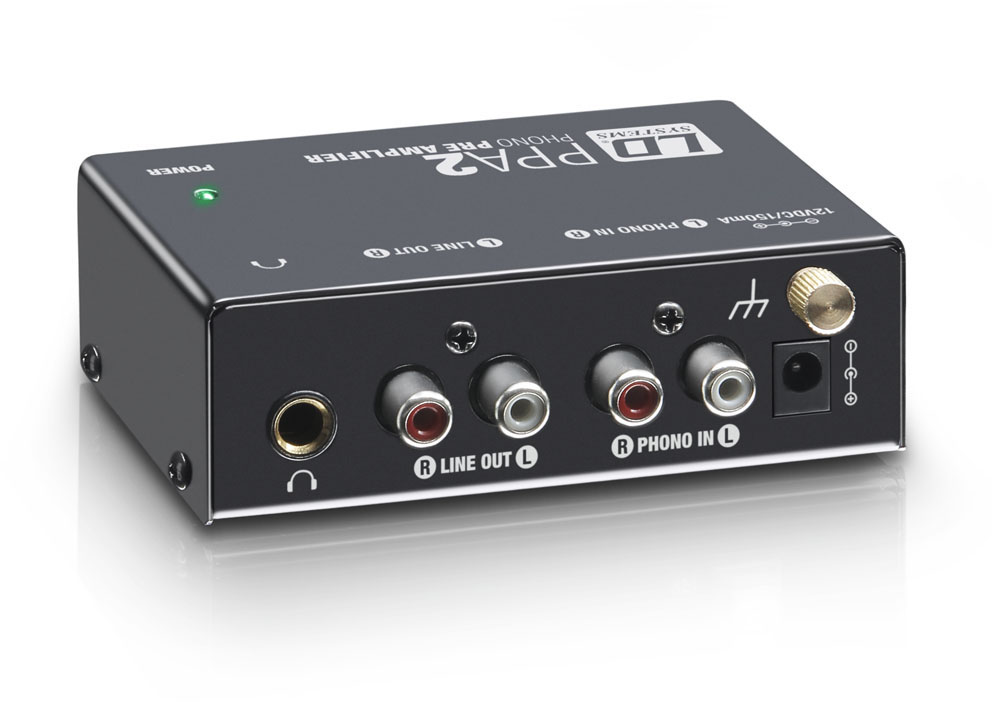

The phono inputs are designed as RCA jacks, just like the line outputs; the PPA 2 also has a screw terminal for the ground conductor of the turntable and a 6.3 mm stereo jack for connecting a headset. The THD factor of the preamplifier is below 0.05% and the channel separation is -75 dB.

The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.

Model Name: LDPPA2
Product Type: phono preamplifier
Type: analogue
Version: Stereo input / Stereo output
Frequency Response: RIAA Curve
S/N ratio: 70 dB
THD:
Channel Crosstalk: -75 dB
Max. Input Level: -23.5 dBV
Max Output Level: +10 dBV
Input Impedance: 47 kOhm
Output Impedance: 50 ohms
Indicators: Power LED
Inputs: 1 x phono stereo
Input Connections: 2 x RCA, 1 x earth terminal
Line Outputs: 1 x line stereo, 1 x phones
Line Output Connectors: 2 x RCA, 1 x stereo jack
Power Supply: external power supply
Operating Voltage: 12 V DC
Power Consumption: 150 mA
Width: 104 mm
Height: 36 mm
Depth: 67 mm
