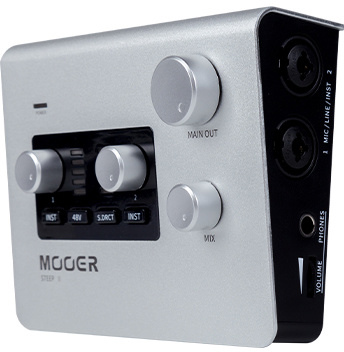

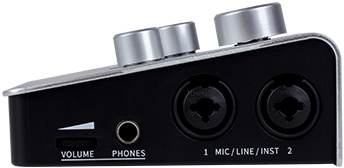

Mooer Steep II audio interfejs

SPECIFIKACIJE:

Multi-platform audio interface with dual inputs and outputs
Supports up to 24bit/192kHz high-resolution audio
Microphone, line-in, and high-impedance value instrument support
48V phantom power available for condenser microphone
Zero-latency direct monitor and DAW monitor can be adjusted individually or mixed
Switchable stereo/mono direct monitor provides more possibilities for input signal monitor
Individual adjustment of monitor volume level and headphone output volume level
MIDI IN/MIDI OUT (STEEP II only)
Can be powered by via USB port or USB power supply

Frequency Response

(20 Hz to 20kHz)

THD+N

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

Maximum Input Level(minimum gain level)

+11 dBu

+11 dBu

Gain Range

50dB

50dB

Input impedance

1.5M ohm

1.5M ohm

Line Outputs

Output Jack

1/4" TRS jack*2(support balanced signal)

1/4" TRS jack*2(support balanced signal)

Dynamic Range

>108dB(A-weighted)

>108dB(A-weighted)

Maximum Input Level(minimum gain level)

+5.746 dBu

+5.746 dBu

THD+N

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

Input impedance

430 ohm

430 ohm

Headphone Outputs

Output Jack

1/4" TRS jack*1

1/4" TRS jack*1

Dynamic Range

>104.9dB

>104.9dB

Maximum Input Level(minimum gain level)

+9.738 dBu

+9.738 dBu

THD+N

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

(minimum gain,-1 dBFS input with 22 Hz/22 kHz bandpass filter)

Output impedance
