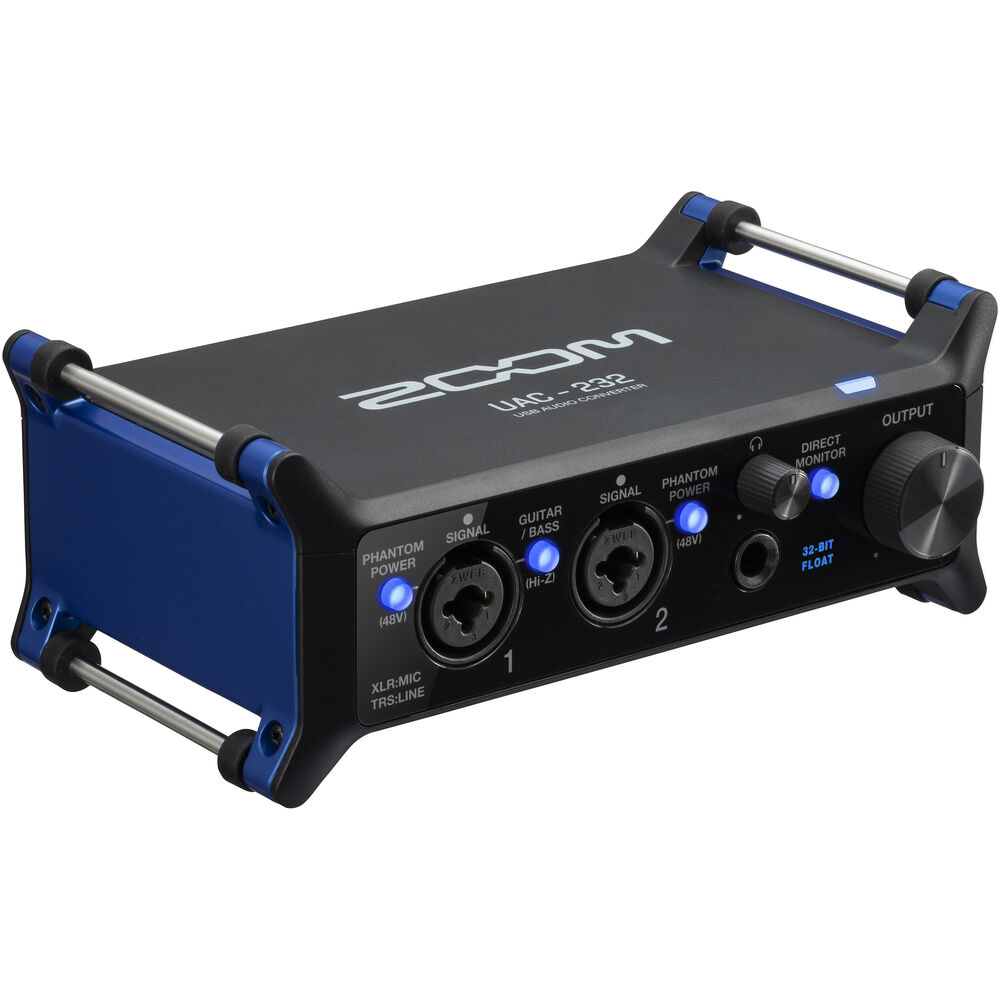

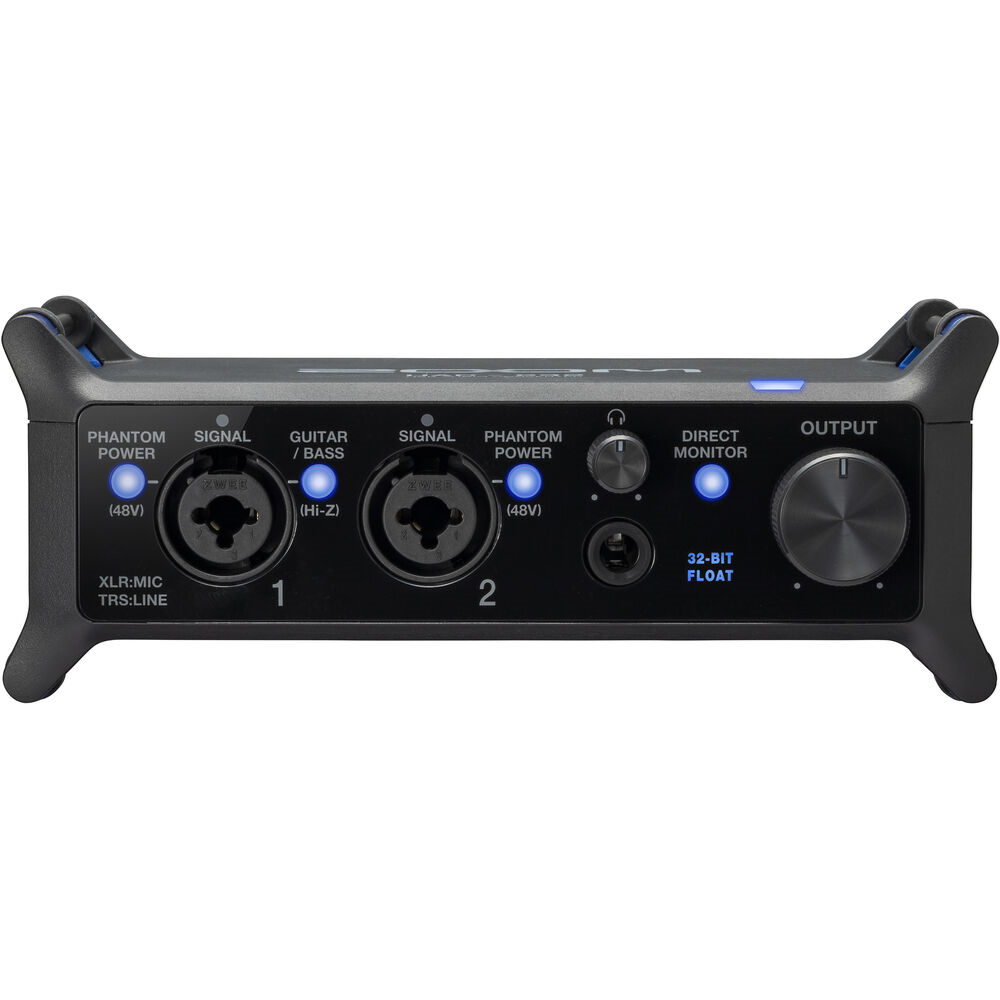

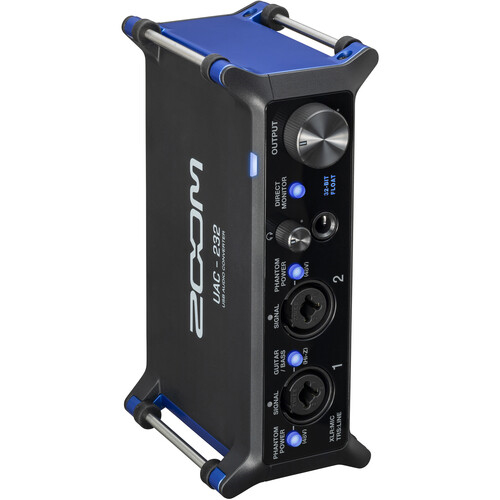

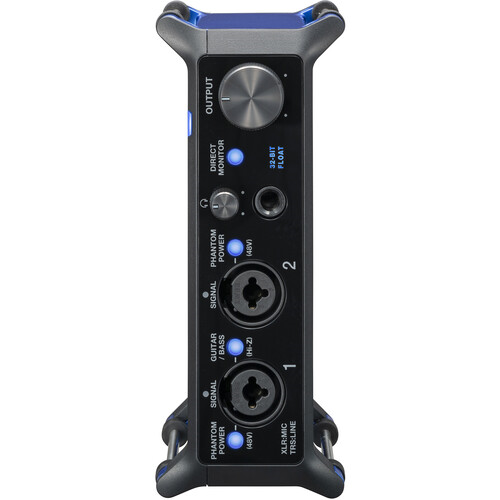

ZOOM UAC-232 - audio interfejs

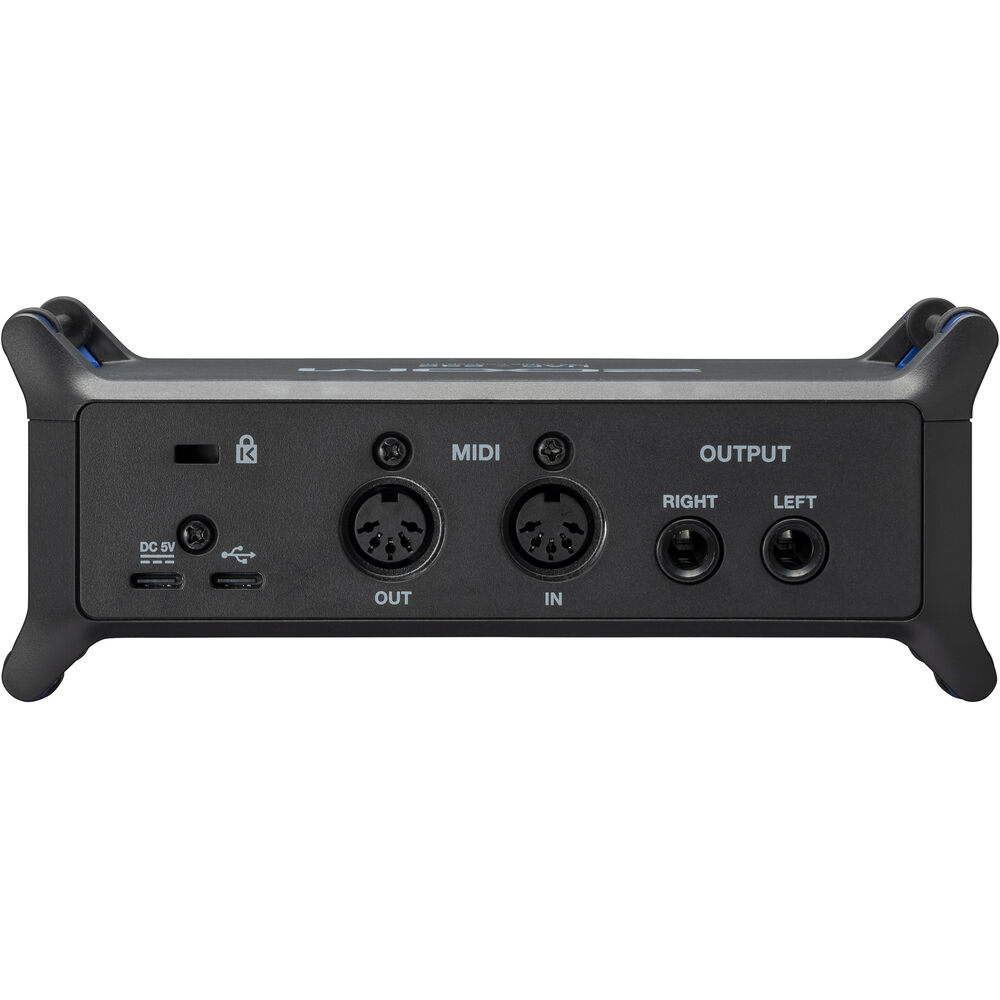

Input and Output Channels NUMBER OF INPUT CHANNELS Mono (MIC/LINE) 2 NUMBER OF OUTPUT CHANNELS Stereo (TRS) 1 Stereo (headphone) 1 Connectors INPUTS 1-2 Type XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input impedance XLR: 2.7 k? TRS: 4 k?/1 M? (when Hi-Z on) Maximum input level XLR: +6 dBu TRS: +24 dBu / +11.5 dBu (when Hi-Z on) Phantom power +48 V OUTPUTS Type TRS phone jacks (balanced) Maximum output level +18 dBu (at 0 dBFS) Output impedance 100 ? HEADPHONES Type Standard stereo phone jack 100 mW + 100 mW (63 ? load) Output impedance 12 ? MIDI IN/OUT (5-pin DIN connectors) USB USB Type-C (audio interface function) • Use a USB cable that supports data transfer. USB bus power is supported. DC 5V USB Type-C (for power supply) Frequency Response INPUTS 44.1 kHz: 20 Hz – 20 kHz, +0.1 dB / -0.2 dB 192 kHz: 20 Hz – 80 kHz, +0.1 dB / -0.2 dB OUTPUTS 44.1 kHz: 20 Hz – 20 kHz, +0.0 dB / -0.1 dB 192 kHz: 20 Hz – 80 kHz, +0.0 dB / -1.0 dB HEADPHONES 44.1 kHz: 20 Hz – 20 kHz, +0.0 dB / -0.5 dB 192 kHz: 20 Hz – 80 kHz, +0.0 dB / -1.0 dB Equivalent Input Noise –127 dBu or less (IHF-A) Audio Interface INPUT AND OUTPUT CHANNELS Recording: 2 channels Playback: 2 channels SAMPLING FREQUENCIES 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz BIT DEPTH 32-bit float / 24-bit INTERFACE USB 2.0 CLASS USB Audio Class 2.0 POWER AC adapter (ZOOM AD-17): DC 5 V/1 A • USB bus power is supported. RATED CURRENT USB / AC adapter (5 V): 293 mA POWER CONSUMPTION 5 W maximum DIMENSIONS 164 mm (W) × 105.5 mm (D) × 65 mm (H) WEIGHT (UNIT ONLY) 355 g Note: 0 dBu = 0.775 Vrms UAC-232 System Requirements WINDOWS OS: Windows® 10 / 11 (64bit) CPU: Intel® Core i3 or faster, or AMD Ryzen 3 or faster with Zen architecture* USB: USB 3.0 / 2.0** * Operation is not guaranteed with CPUs from Intel® Atom, Celeron or Pentium series or CPUs from AMD Athlon. ** Only USB host controllers with Intel/AMD Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards. MAC OS: macOS 11 ~ 13 CPU: Intel® Core i3 or faster, or Apple M1 USB: USB 3.0 / 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards. IPHONE / IPAD OS: iOS/iPadOS 14 ~ 16 * Apple Lightning to USB 3 Camera Adapter required.
