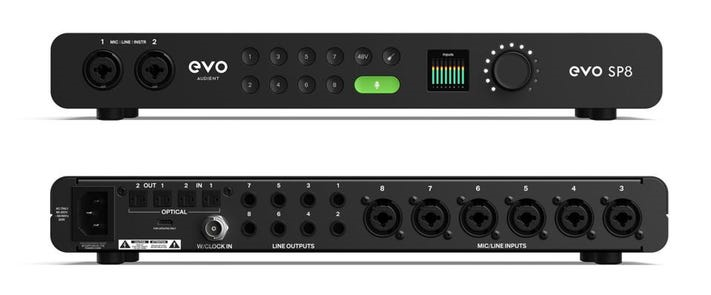

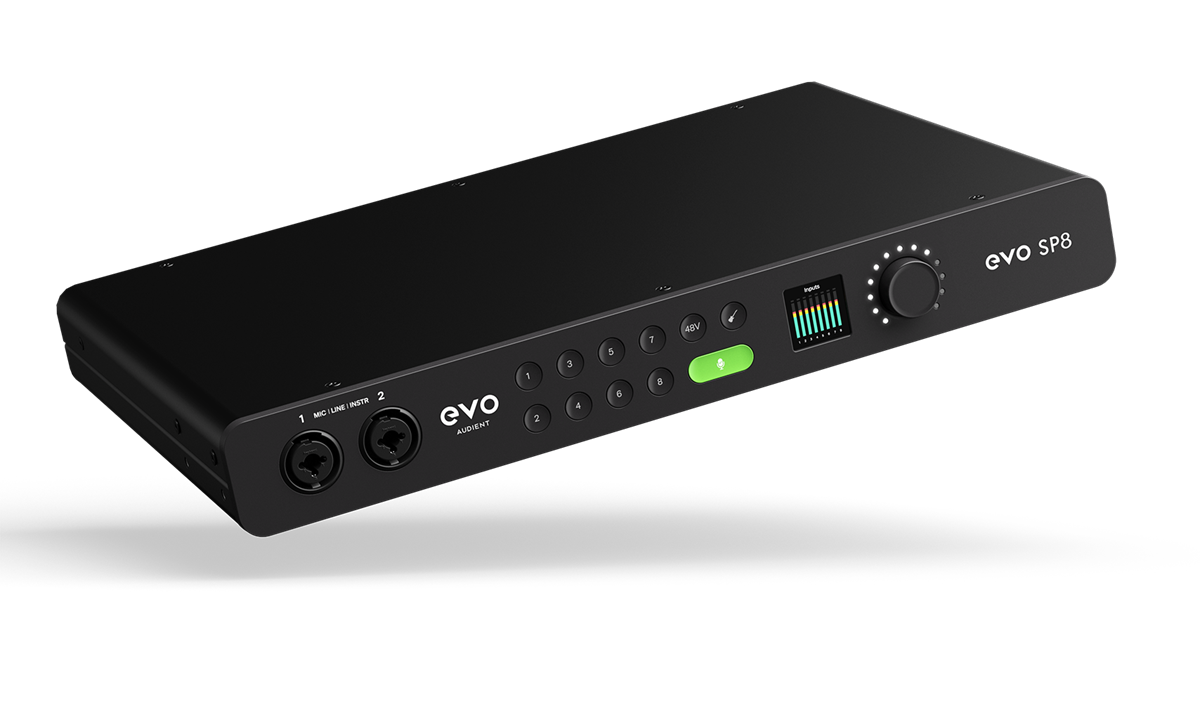

Audient Evo SP8 Smart Preamp | 8-in/8-out I/o Expander With 8 Preamps

SPECIFICATION Microphone Preamplifier Mic Gain Range: 58dB Line Gain Range: 58dB (-10dB pad) Phantom Power: 48v +/-4v @ 10mA/Channel Mic EIN: CMRR: >80dB @ 1kHz Maximum Input Level: +16dBu Input Impedance (Mic): >3k? Balanced Input Impedance (Line): >10k? Balanced Frequency Response: +/-0.5dB 10Hz to 40kHz Crosstalk: THD+N @ 0dBu (1kHz): SNR: 100dB XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield) D.I Inputs D.I Gain Range: 58 dB Maximum Input Level: +10dBu Input Impedance: 500k Frequency Response +/-0.5dB 10Hz to 20kHz THD+N @ 0dBu (1kHz): SNR: 100dB 1/4” Jack: TIP (Hot) & SLEEVE (Shield) ADC Digital Reference Level: 0dBFS = +10.5dBu Frequency Response: +/-0.5dB 10Hz to Fs/2 Crosstalk: -125dBu @ 1kHz & 10kHz THD+N @ -1dBFS (1kHz): Dynamic Range: 112.5dB A-Weighted Line Outputs Maximum Output Level: 12dBu Digital Reference Level: 0dBFS = +12dBu Output Impedance: Frequency Response: +/-0.5dB 10Hz to Fs/2 Crosstalk: THD+N @ -1dBFS (1kHz): Dynamic Range: >117dB A-weighted 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield) Dimensions Unit: 355mm (w) x 255mm (d) x 53mm (h)
