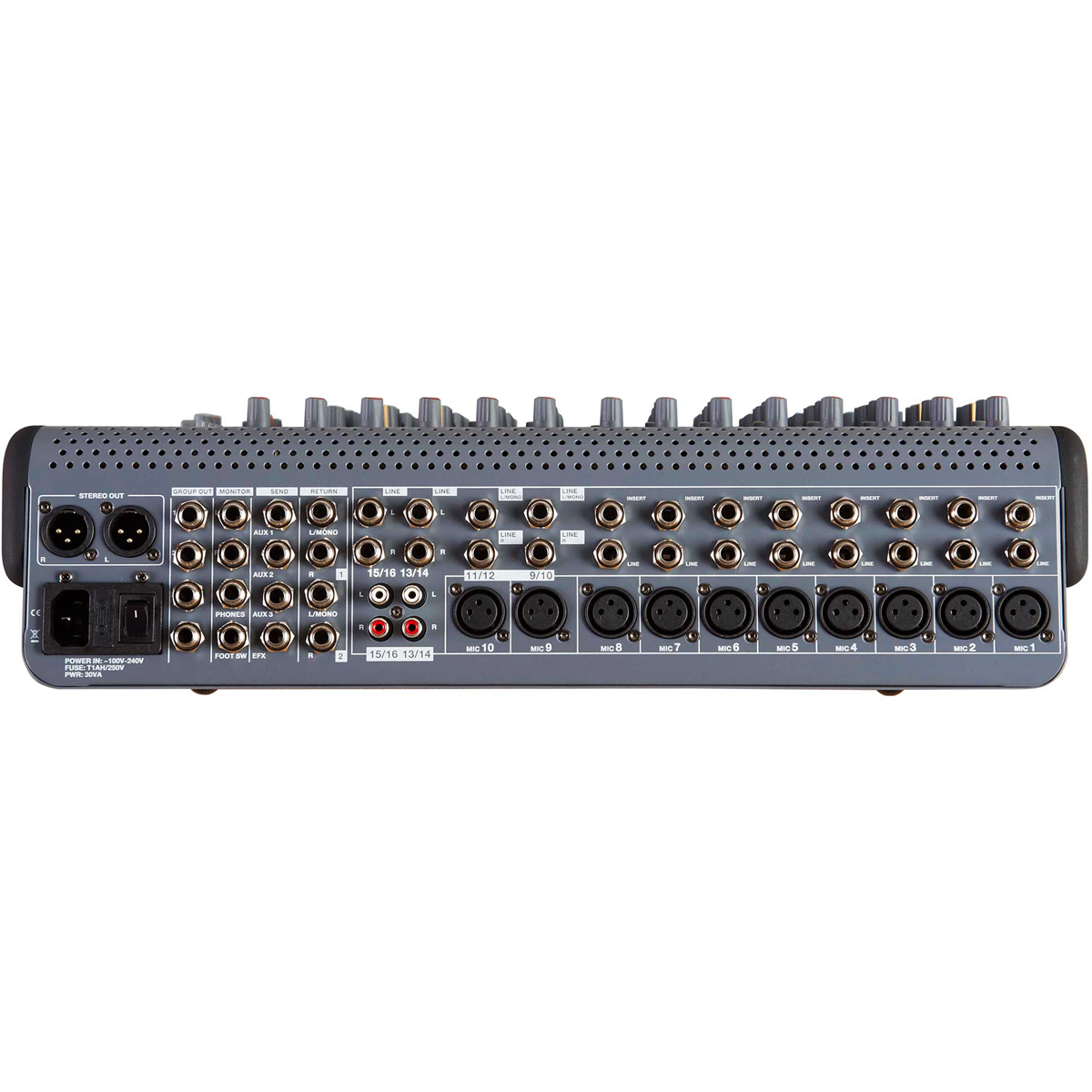

Studiomaster C6XS-16- Channel DSP/USB compact mixing console

12 and 16 input models
3 Band EQ on all channels
1 / 2 Stereo sub groups 2 / 4 auxiliaries (depending on model)
USB recording / playback on XS models
High quality DSP effects on XS models
Mic channels feature adjustable compressor facility
New to the range for 2015 are our CLUB XS range of compact,
and portable mixing consoles. Offering all the features and
specifications required from mixing consoles at this level, at a
great price point. With features such as 3 band EQ, built-in
channel compression, DSP effects and a hugely versatile
MP3/USB/SD card playback and recording system, with
Bluetooth playback facility included.
Available in 5, 6, 8, 10 or 12 input models. The 5 input with 1 mic
channel, the 6 input with 2 mic channels, the 8 has 4 mic channels, the
10 with 6 mic channels, and the 12 input model has 8. All feature 2
stereo input channels.

Specs >

Channels16
Mic Inputs10
Stereo Inputs4
GainMin - Max
Mic15dB - 60dB
EIN-128dB
Frequency response
Mic Channel20Hz - 20kHz +1/-3dB
THD Mic Channel
Output Levels Balanced+28dB Max
Output Levels Unbalanced+22dB Max
Channel EQ
Hi12kHz
Mid500Hz - 2.7kHz
Lo100Hz
Lo Cut100Hz
USB Audio (C6XS)2 channel record/playback
DSP Effects (C6XS)16 presets with adjustable parameter
Power requirements100-240V ~ 50/60Hz 35W max
Dimensions (wxhxd)585 x 590 x 250mm
