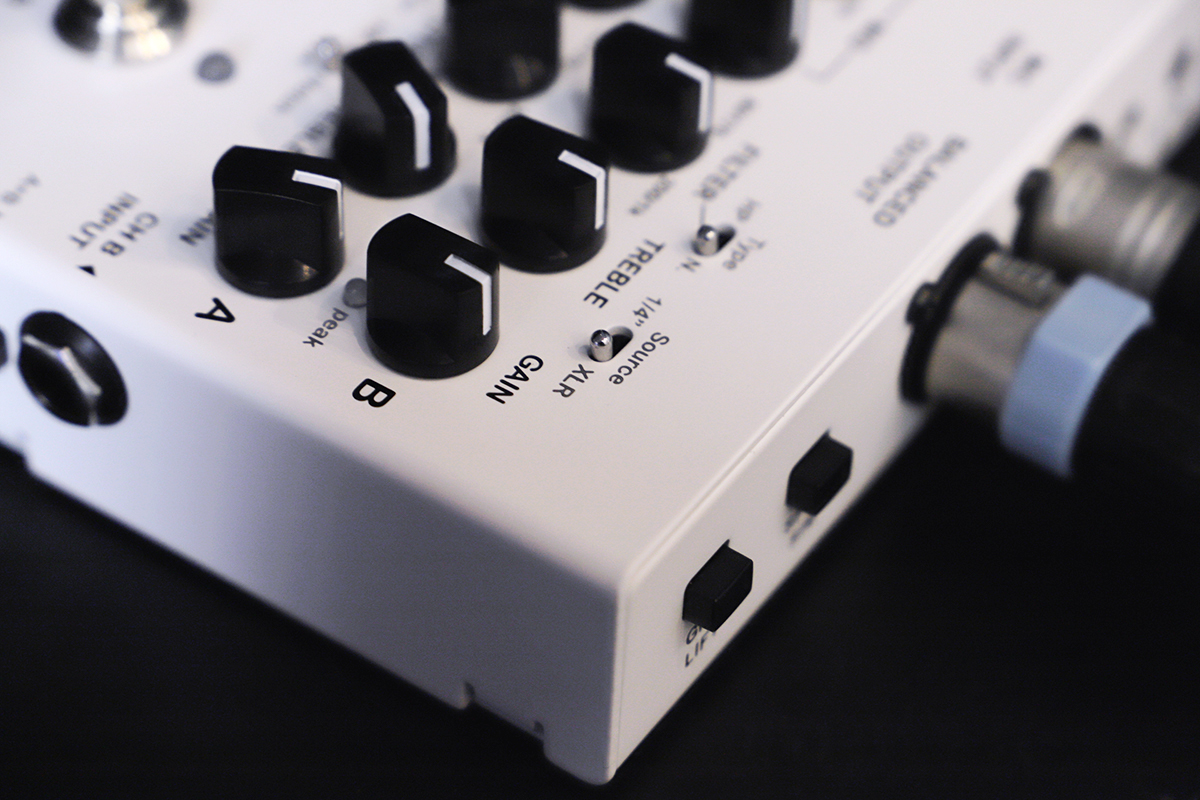

EBS Stanley Clarke Signature Acoustic Preamp pretpojačalo za akustični bas

SPECIFIKACIJE:

2-channel analog preamp (A/B or A+B)
Operates with Studio-grade signal quality
10 Mohm Impedance inputs (both channels)
Individual High Pass/Notch Filter for each channel
XLR microphone-input with Phantom Power (channel B)
Electret pickup support (channel A)
Tuner output
Effects Loop (serial/parallel)
Balanced Output (with Speaker Simulator and Ground Lift)
Aux Input and professional-grade headphones output.
Dedicated 9V DC Power Supply included.

Channel Specifications:

Input Impedance: 10 Mohms // 22 pF
Gain: Gain Range -oo/+30 dB Gain Peak LED (ch A = RED, B = yellow) +10 dBv Frequency Response +0/-3 dB 20-20.000 Hz
Bass Filter: Type Shelving Gain Range +/- 15 dB @ 40 Hz
Mid Filter: Type Bandpass Filter Gain Range +/- 13 dB Frequency Range 70 - 2500 Hz Q 0.8
Treble Filter: Type Shelving Gain Range +/- 15 dB @ 10 kHz
HP Filter: Type 12 dB/octave High Pass Frequency Range 20(off) - 450 Hz
Notch Filter: Type Bandpass Notch Frequency Range 70 - 2200 Hz Q 7 Attenuation 7 dB (typically)
Electret Power (Channel A): 5V, 2mA

Common Features:

Effects Loop: Loop Signal Level -10 dBv (nominal)
Gain Unity (1:1)
Output Impedance 2 kohms
Input Impedance 100 kohms
Modes Serial or Parallel
Phones Out: Recommended Imp. 32 - 200 ohms
Aux Input: Input Impedance 20 kohms
Nominal Level -10 dBv
Output: Output Impedance 1 kohms
Signal Level 0 dBv (nominal)
Balanced Output: Output Level -20dBv (nominal)
XLR Connections 1-GND, 2-Hot, 3-Cold Options
Gnd Lift, SPKR Sim
Balanced Input (Channel B): Input Level -30dBv (nominal)
XLR Connections 1-GND, 2-Hot, 3-Cold
48V Phantom Yes
Auxiliary Info: Power Requirements Idle 500mA @9V
max 800mA @9V (with headphones at max output level)
Dimensions (WxDxH): max 168 x 124 x 53 mm / 6.6” x 4.9” x 2.1”
Weight: 660 g (1.5 lbs.)
