LDHPA6 6-Channel Rackmount Headphone Amplifier The LD Systems HPA 6 is a highly flexible 1U 19“ rack format headphone amplifier with 6 fully independent channels and co...Pročitaj ceo opis
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .

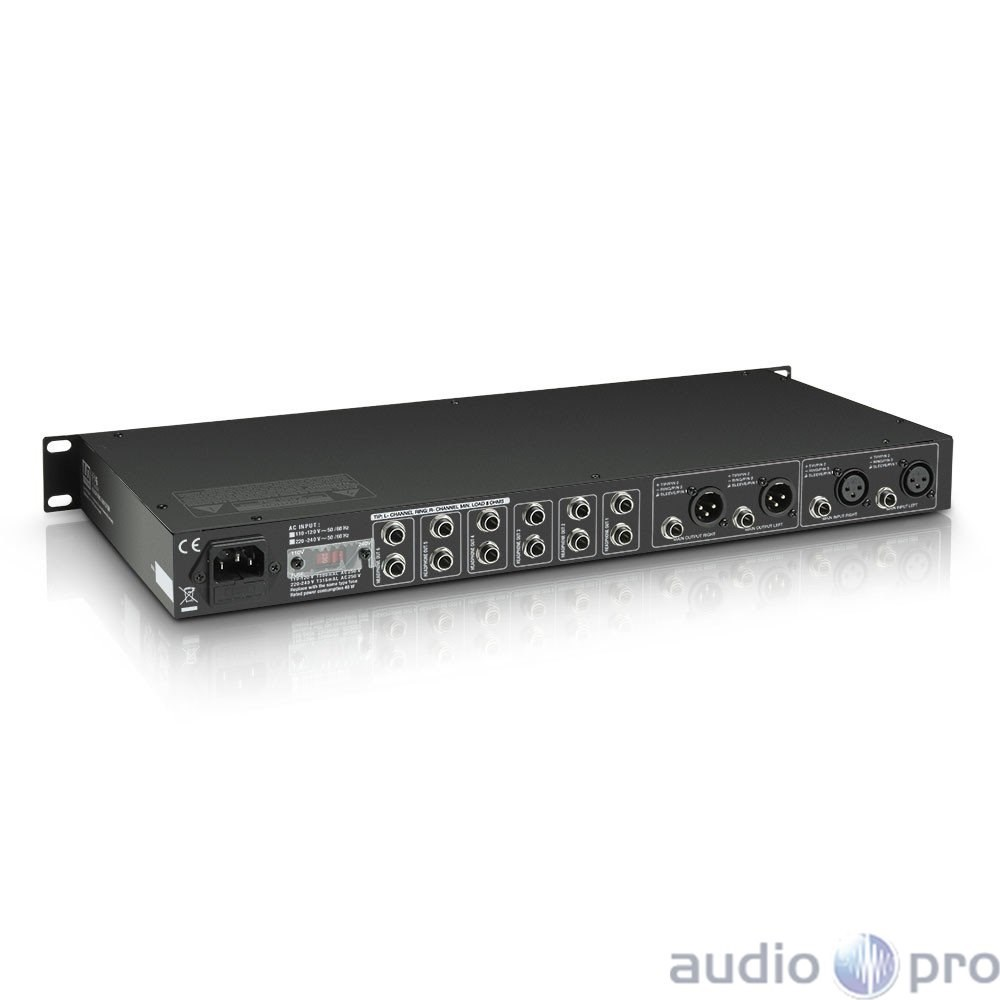

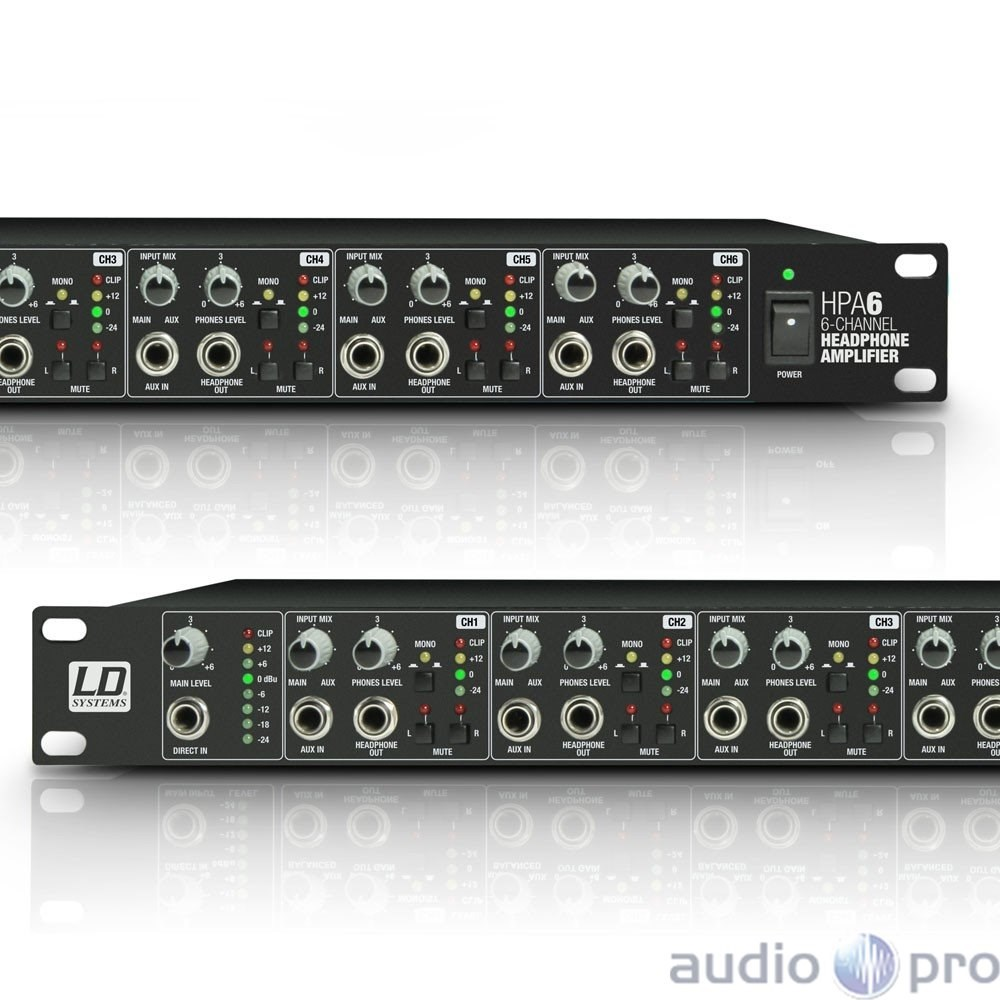

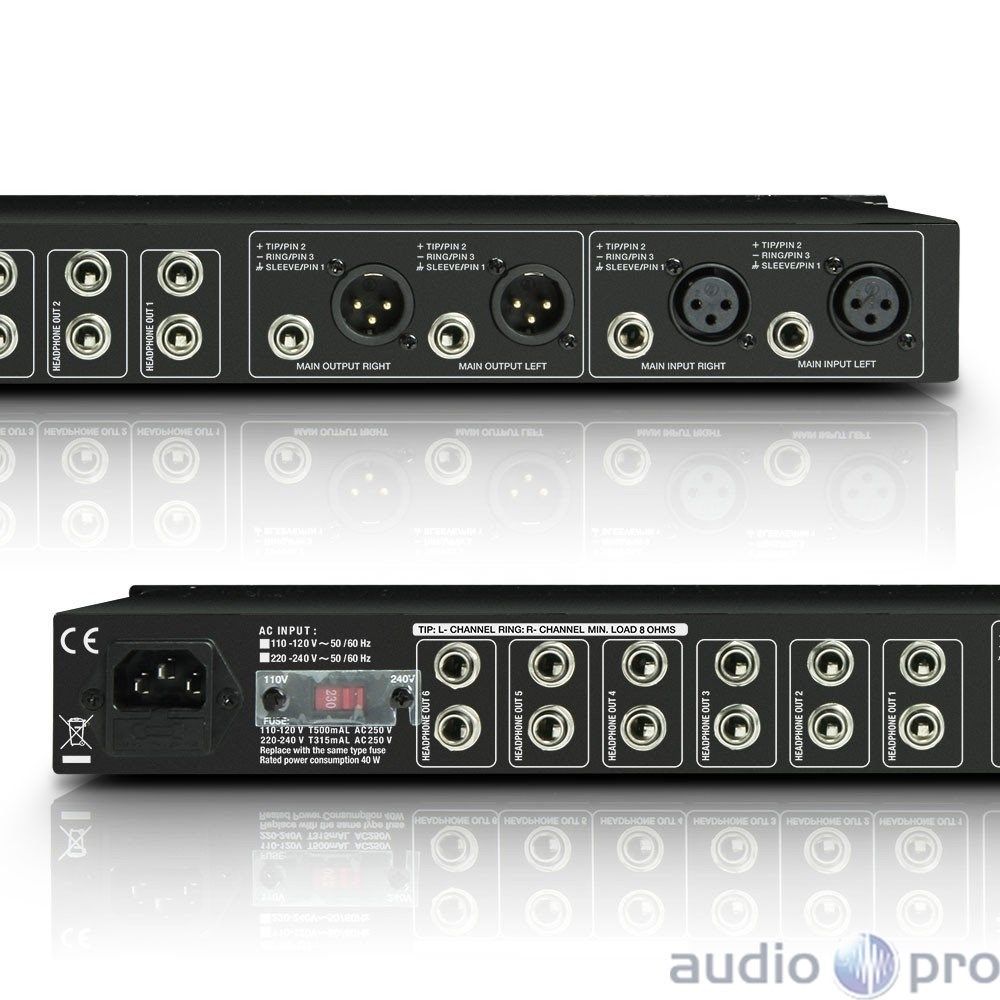

LDHPA6 6-Channel Rackmount Headphone Amplifier The LD Systems HPA 6 is a highly flexible 1U 19“ rack format headphone amplifier with 6 fully independent channels and comprehensive features for a wide range of professional audio monitoring applications. Each channel provides a 6.3 mm TRS headphone output on the front panel with level control, mono/stereo switching, discrete left/right muting and a 6.3 mm TRS Aux input with Main/Aux balance control for mixing in further signal sources. Four-segment LED meters permit visual output level monitoring, and two 6.3 mm TRS outputs per channel on the rear allow for connecting a total of 18 headphones. The HPA 6's main section features a master level control with eight-segment LED metering and 6.3 mm TRS input to mix in an additional source with all channels. The rear panel provides the main stereo inputs on balanced XLR and 6.3 mm TRS connectors and stereo outputs for daisy chaining multiple units. Specifications General Product typeHeadphone Amp: Inputs8 (1 Main Input (Stereo), 1 Direct In (Stereo), 6 Aux In (Stereo)) Input connectors6.3 mm TRS, XLR Input impedance13 k Ohm(s) Line OutputsMain Output (stereo, balanced) Line output connectors6.3 mm jack, XLR Headphones ouputs6 x 3 Headphones outputs6.3 mm TRS Power output6 x 125 mW Minimum connected impedance8 Ohm(s) Frequency response20 - 20000 Hz Controls6 x Headphone Level, 6 x Input Mix Main/Aux, 6 x Mono Switch, 6 x Mute L&R, Main Input Level, Power Indicators6 x channel level meter (4-segment LED chain), 6 x mono LED, 6 x Mute L&R LEDs, Main Input/Direct In Level Meter (8-segment LED chain), power LED Operating voltageIEC power connector Operating voltage110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable Cabinet materialMetal Cabinet surfacepainted Width483 mm Height44 mm Depth217 mm Weight3 kg Accessories (included)Power cord
