Furman CN-3600S E filter mrežnog napona

SPECIFIKACIJE:

AC Voltage Input Range 180-270VAC, 50/60Hz
Maximum AC Current Rating 16 amps (Thermal breaker)
AC Cord 1.5mm2x3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug

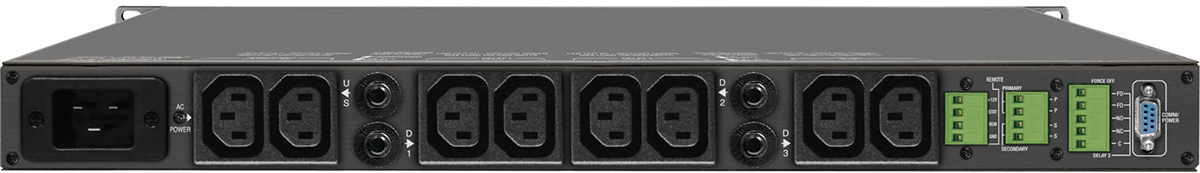

Rear Panel Outlets 1 IEC C13 pair (Unswitched), 3 IEC C13 pairs (Sequenced, each pair is controlled by separate relay)

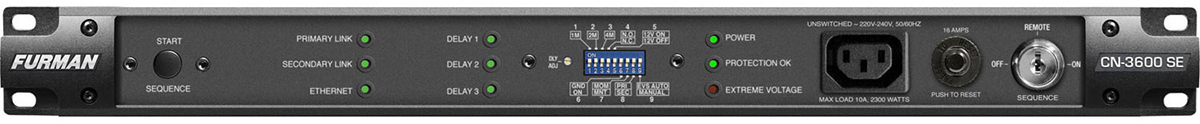

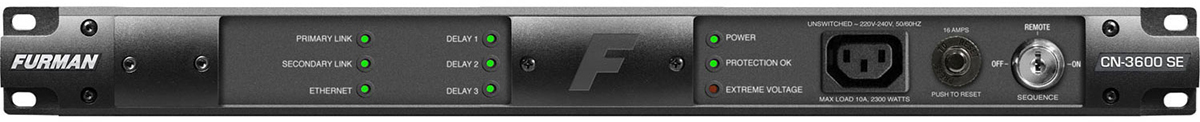

Front Panel 1 IEC C13 (Unswitched)
Surge/Under-Overvoltage Protection AC Surge Protection Series Multi-Stage Protection SMP
Spike Protection Mode Line to neutral, zero ground leakage
Spike Clamping Voltage 375V peak @ 6,000 volts/3,000 amps
Response Time 1 nanosecond
Maximum Surge Current 6,500 Amps
AC Undervoltage Protection EVS, 175VAC+/-3VAC
AC Overvoltage Protection EVS, 275VAC+/-5VAC
AC Overvoltage Reset Modes Manual and Auto-reset (configurable)
AC Filtering LiFT
Noise Attenuation Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating Temperature Range 5C (40F) to 40C (105F) degrees
Humidity Range
Keyswitch Front panel, 3-position keyswitch (On, Off, Remote)
Keys Included, 1 pair
Pushbutton Switch Front panel, hidden by security cover
Circuit Breaker Front panel, pushbutton, 20A Thermal Breaker
Front panel diagnostic indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
Front Panel DIP Switches Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer Front panel, hidden by security cover, fine tune delay adjust
Control/Status/Triggering (Rear Panel) Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
RS-232 Compatible Yes, DB-9 Connector
IP Addressability Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
Voltmeter Available with RS-232/Ethernet option, ± 2VAC accuracy
Ammeter Available with RS-232/Ethernet option, ±1A accuracy
Power Consumption (No Load) 10 Watts
Safety Agency NRTL-C, RoHS Compliant
