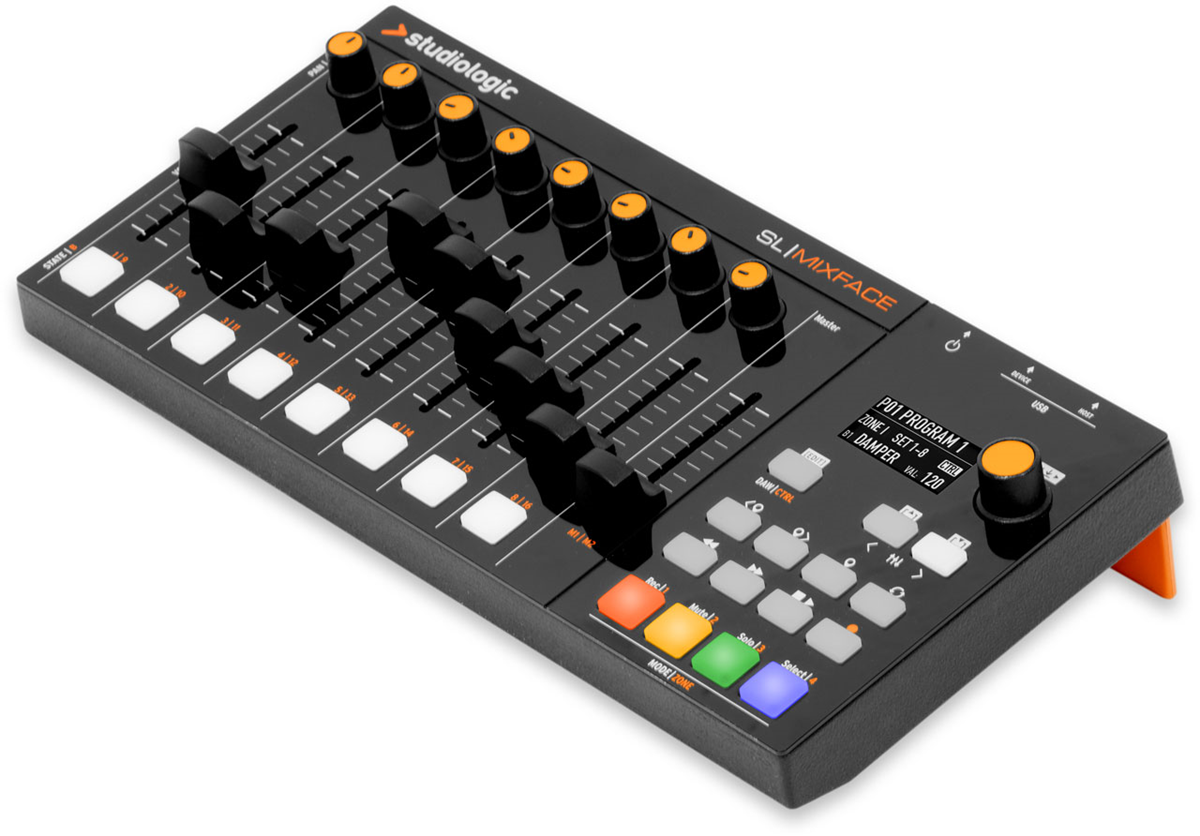

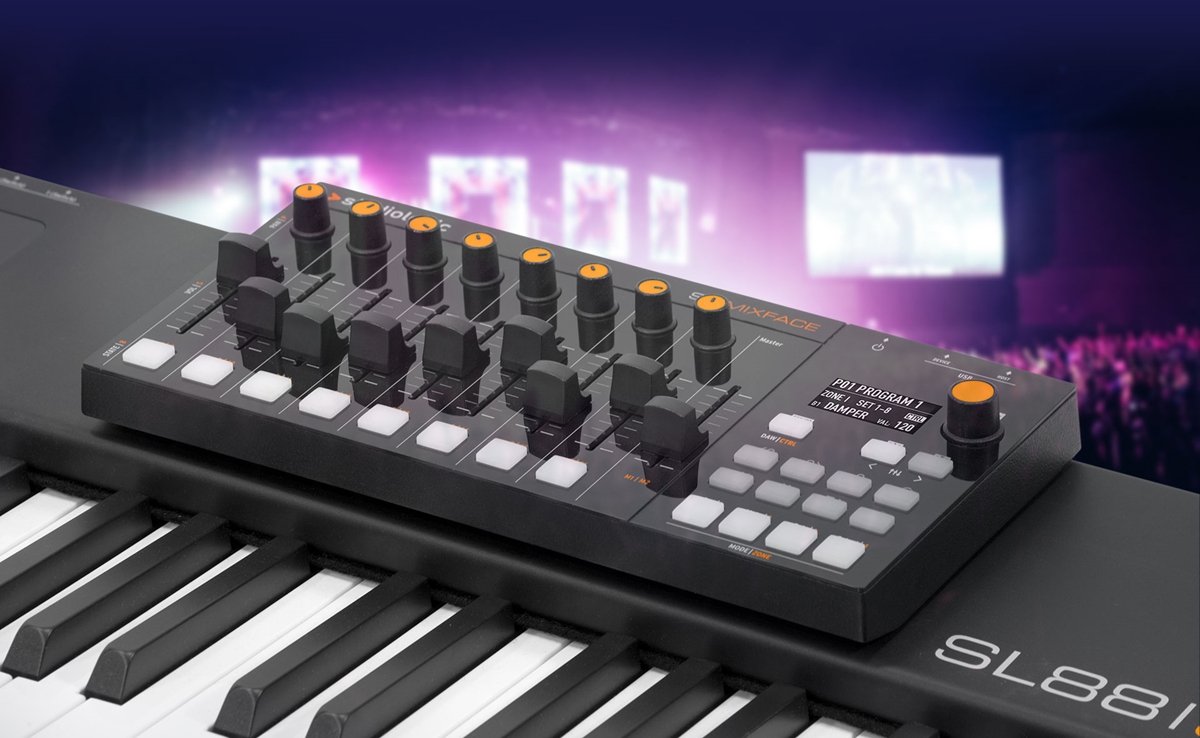

SL MIXFACE freedom to connect. total control. The SL MIXFACE is a complete controller device which combines style and simplicity with a powerful engine. Designed for mobility, you can bring it everywhere and use it in total freedom thanks to its hosting capability and auto-mapping of the main DAW apps. Through its connectivity and the integrated batteries it's a perfect portable device, which with a simple gesture becomes the best desk companion. Press a button and switch the control from the DAW environment to your favorite instrument and vice versa. All the Transport functions are always ready to go, while you can edit any sound parameter of the instrument or mix the tracks of your song. Connectivity The SL MIXFACE is able to host any compatible keyboards turning it into a full 4 layers MIDI controller via USB. Thanks to its connectivity ports it communicates with the computer as device by using Bluetooth and USB at the same time. Extended capability The SL MIXFACE perfectly matches the SL controller line expanding its control capability. Thanks to the magnetic system it sticks on it becoming a natural physical controls extention. Simply plug MIXFACE to an SL keyboard and it gets the control of the 4 layers on the fly. Specs:
General OLED display 128 x 64 dots
Navigation Encoder
8 Knobs, 9 Sliders, 8 Buttons
DAW Rec, Mute, Solo, Select
3 Controls for each Track (Knob, Slider, Button)
Master Slider
Transport Play/Stop, Record, Next track, Previous Track
Set marker, Next marker, Previous marker, Cycle
Supported DAWs1 Ableton Live
Apple GarageBand
Apple Logic Pro X 2
Avid Pro Tools
Cockos Reaper
Motu Digital Performer
Presonus Studio One
Propellerhead Reason
Steinberg Cubase
Steinberg Nuendo
Controller 12 User Presets
Integration with SL Controllers
4 Zones
Controls for Zone 16 Sets (Knob + Slider + Button)
2 Master Sliders
Connections USB Device (type micro B)
USB Host (type A)
Bluetooth 4.2 Low Energy
Power and battery USB powered (when connected via USB)
Three AAA batteries3 (when connected wirelessly)
Size and weight Width: 26,2 cm / 10,3"
Depth: 13 cm / 5,1"
Height: 3,6 cm / 1,4" - 5,6 cm / 2,2" raised
Weight: 570 g / 1,25 lbs without batteries
Package content SL Mixface
Micro-USB Cable
Anti-slip desktop pad
