AMS Neve 1073SPX mikrofonsko pretpojačalo i ekvalajzer

SPECIFIKACIJE:

Genuine Neve 1073 transformer-coupled microphone preamplifier / EQ circuit, in a single 1U 19” rack mount enclosure
Exclusive Neve Marinair™ transformers used on input and output stages

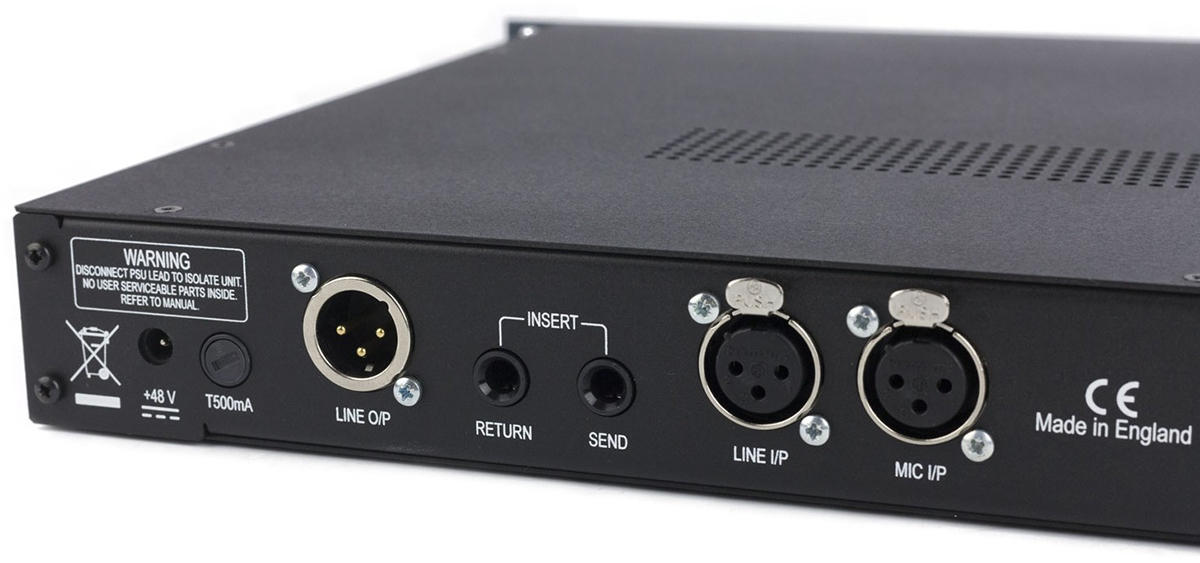

Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
Switchable +48v Phantom Power, Hi/Lo impedance, -20dB pad and DI ground lift on the input stage
Switchable Phase, and EQ in/out
Insert send and return loop feature allows external equipment to be connected easily to the 1073SPX audio chain, such as mono limiter/compressors;

Pre-EQ insert send/return – a line level send is available from the mic-preamp output stage and a return just before the EQ stage
Post-EQ insert send/return – a line level send is available from the post-EQ stage and a return just before the main output stage
