SUPER CENA Warm Audio WA-84 Nickel
Kretanje cena
LOKACIJE PRODAVNICA
Sound Like A Legend The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilize...
Pročitaj ceo opis
44.280,00 DIN
Proizvođač
Cuin
Idealno.rs Unique Identification Number
CX009E364D
Prijavi grešku
SLIČNI PROIZVODI
A Look Inside The WA-84
The Capsule The WA-84 utilizes a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84’s capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone. The Circuit The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The Transformer The WA-84 utilizes an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone. The Capacitors The WA-84 proudly utilizes Wima, polystyrene and tantalum through-hole capacitors throughout.Technical Specification
UTILIZES A CINEMAG USA TRANSFORMER
DIRECTIONAL PATTERN: CARDIOID
FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
VINTAGE CAPSULE REPRODUCTION

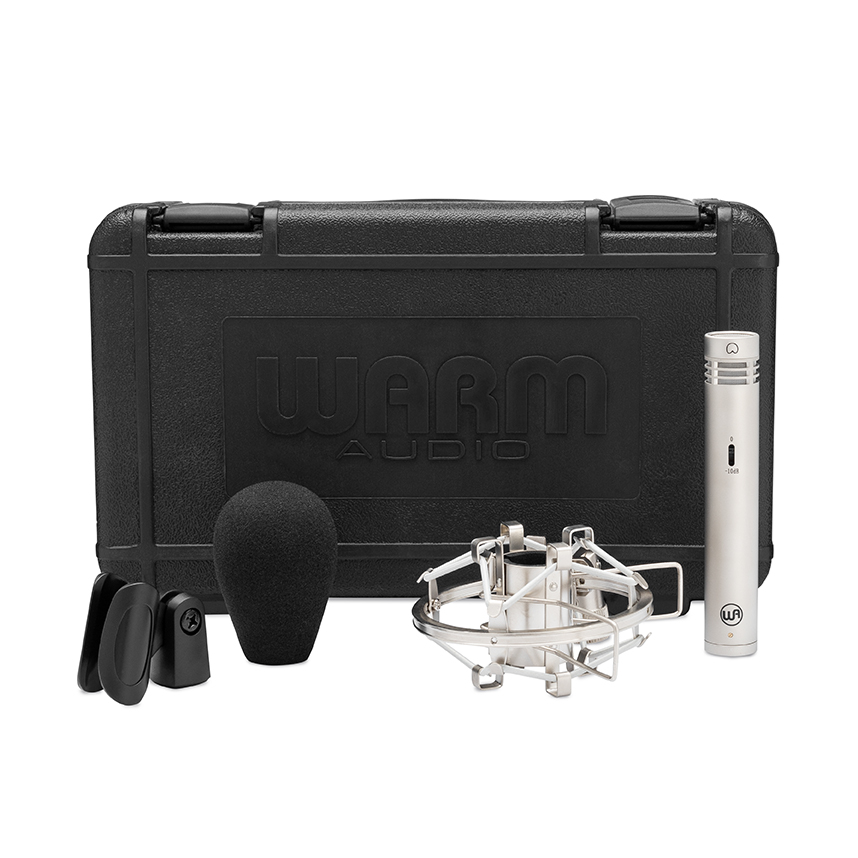

PACKAGE INCLUDES: MICROPHONE, CARDIOID CAPSULE, SHOCK-MOUNT, MIC CLIP, WINDSCREEN AND CARRYING CASE
48V PHANTOM POWERED
FREQUENCY RANGE: 20HZ - 20KHZ
SENSITIVITY: -39DB OR 11MV/PA @ 1KHZ
OUTPUT IMPEDANCE: 200?
RATED LOAD IMPEDANCE: ?1K?
PAD: 0DB OR -10DB
MAXIMUM SPL: 123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
S/N RATIO: 78DBA (IEC651)
EQUIVALENT NOISE: 16DBA (IEC651)
DYNAMIC RANGE: 107DBA (IEC651)
CONNECTOR: 3-PIN GOLD-PLATED XLR
WEIGHT: 122G EACH
FINISH: BLACK & NICKEL
