Black Lion Audio Revolution 2×2 audio interfejs

USB 2 Channel Portable Recording Interface – Modded Out Of The Box!

Black Lion Audio have been revered as the “king of audio mods” for years, and have modded countless recording interfaces over the years. But since the very beginning, we’ve been asked when we would create our own interface. So, we planned, engineered, and worked — all in secret, for years. It took an impressive amount of design to revolutionize bus-powered, studio-grade interfaces. Now we are responding with Revolution 2×2: the ultimate in portable recording interfaces. Revolution isn’t another run-of-the-mill interface from big brother — it’s the interface the world has always asked for. Don’t just settle for “the cheap and portable” – get an interface that can do more than just start a demo, but actually finish a top-level record from start to finish.

• 24bit, 192KHz USB C interface
• Bus Powered
• Macro MMC clocking

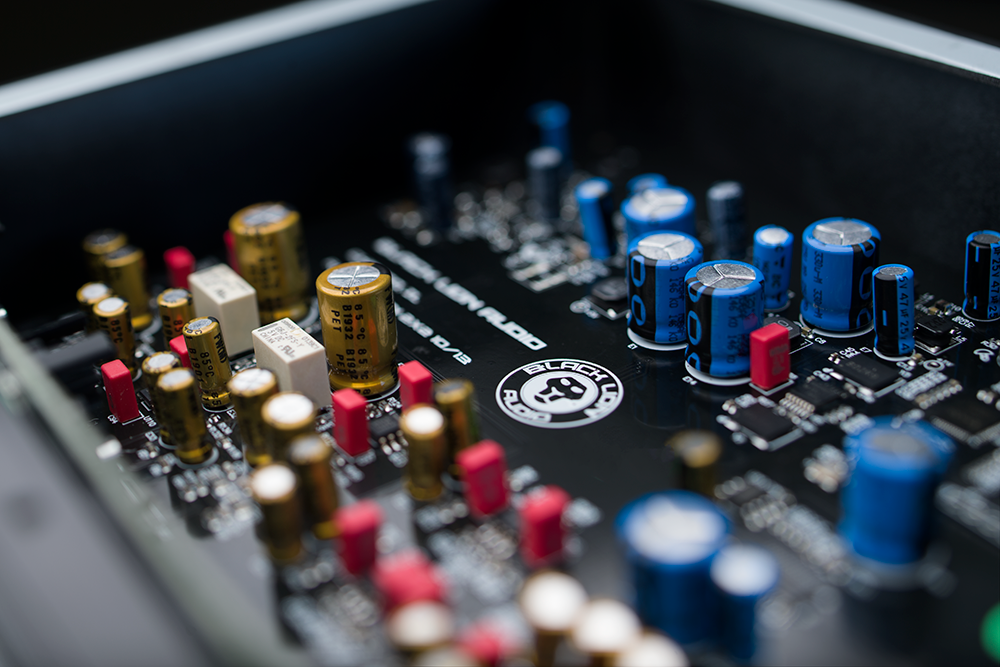

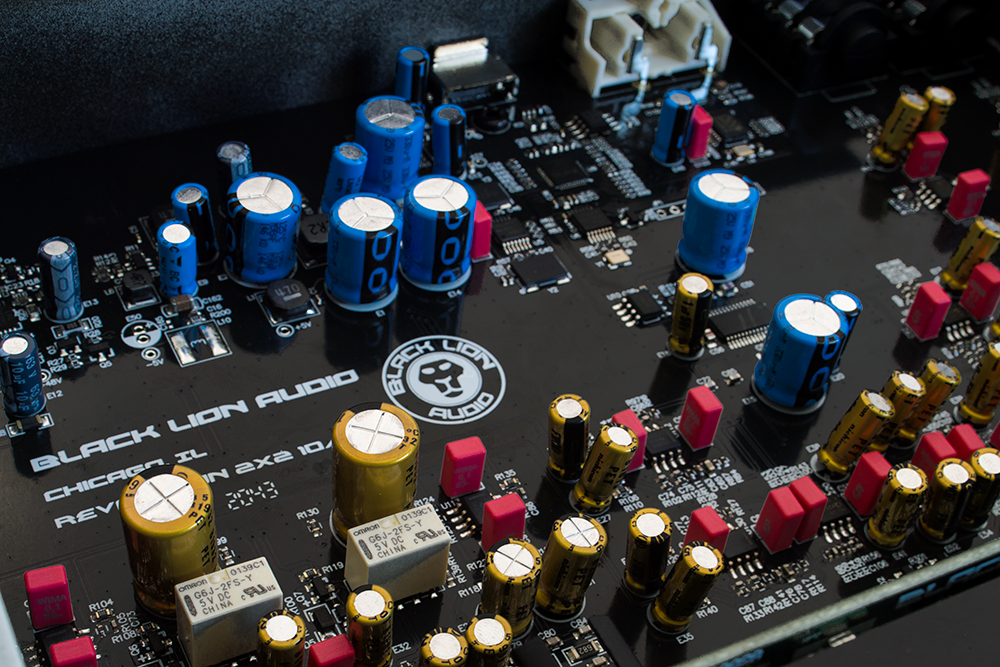

• Analog circuit design utilizing Nichicon, Vishay and Wima capacitors
• PG-i power filtering technology
• USB Class Compliant
• Revolution Software Suite

Revolution Software Suite
• Studio One Artist
• Izotope Elements Suite including Nectar, Neutron, Ozone and RX
• BrainWorx BX Digital
• Lindell 6X500

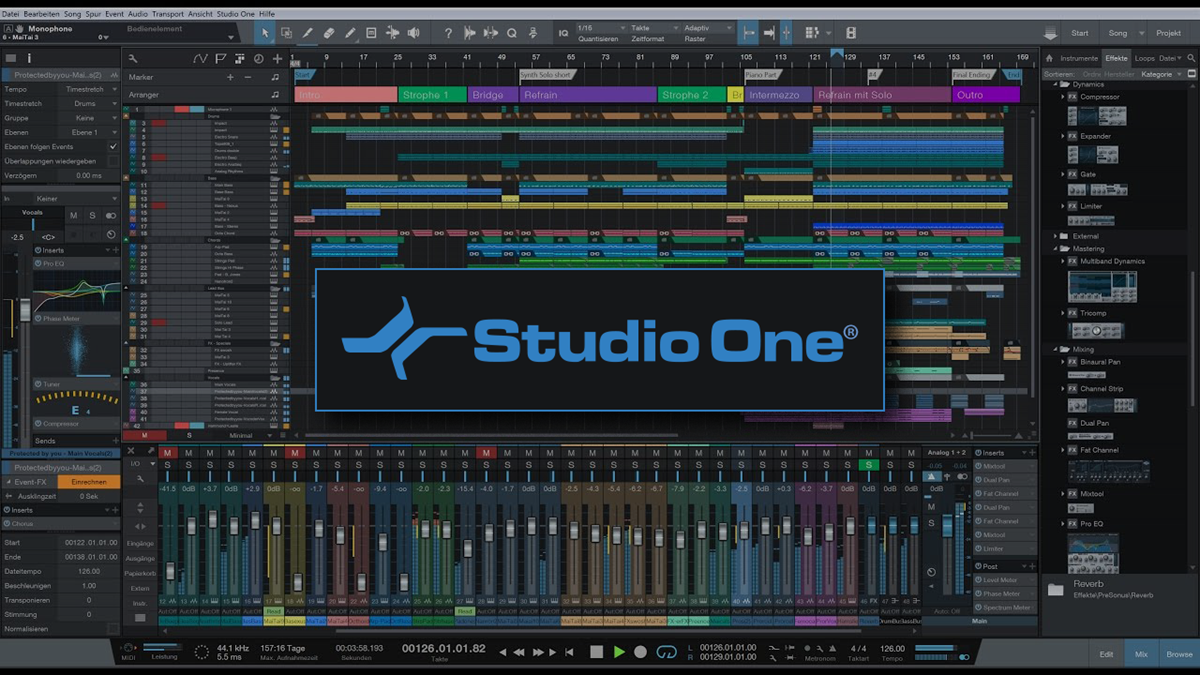

Studio One Artist
• Mac and PC compatible
• Unlimited tracks
• Multilingual
• 3rd party plugin support

Specs:

Input Impedance = 14K? (balanced)
Maximum Input = 20dBu
Gain Range = 55dB
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD + N = .0022% (Min Gain)
Dynamic Range = 126dB (A-Weighted)
Crosstalk =

Output Impedance = 95? (balanced)
Max Output Level = 12dBu
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD+N = .002% (@ +10dBu)
Dynamic Range = 106dB**

Input Impedance = 1M? (unbalanced)
Gain Range = 55dB
Frequency Response = 20Hz – 20KHz +/- 0.25dB
THD + N = .00114% (@ 0dBu)
Dynamic Range = 103dB (A-Weighted)
Crosstalk =

Output Impedance = 2.5?
Maximum Signal Output = 9.3dBu
Frequency Response = 20Hz – 20KHz +/- 0.5dB
