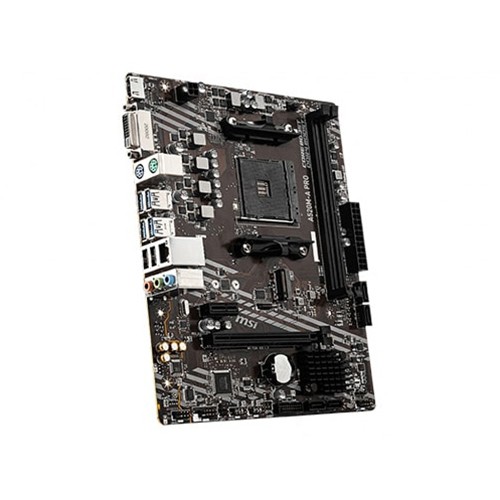

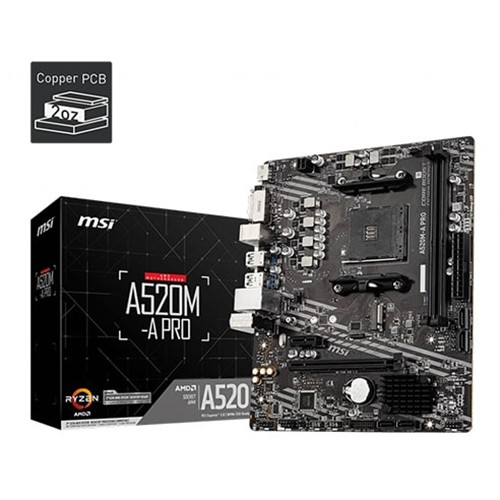

MSI A520M-A PRO
Kretanje cena
LOKACIJE PRODAVNICA
AM4 AMD A520, 2x DDR4 4600+(OC)MHz, PCIe x16 3.0, 4x SATA III, M.2, HDMI, DVI, USB 3.2 Gen 1, GLAN, 8ch audio, MicroATX Model MSI A520M-A PRO Matična ploča Ryzen AM...
Pročitaj ceo opis
6.100,00 DIN
Proizvođač
Podnožje
Za procesore
Cuin
Idealno.rs Unique Identification Number
CX00956381
Prijavi grešku
SLIČNI PROIZVODI
AM4 AMD A520, 2x DDR4 4600+(OC)MHz, PCIe x16 3.0, 4x SATA III, M.2, HDMI, DVI, USB 3.2 Gen 1, GLAN, 8ch audio, MicroATX
Model MSI A520M-A PRO Matična ploča Ryzen AM4 MicroATX Procesorsko podnožje (Socket) AMD Socket AM4 Skup čipova (Chipset) AMD A520 Podrška za procesore Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Tip memorije (RAM) DDR4 Broj memorijskih slotova 2x 288-Pin DDR4 Podrška za memorije 2x DDR4 memory slots, support up to 64GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory Podrška za grafiku - portovi 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
Maximum shared memory of 16 GB Slotovi za proširenja 1x PCIe 3.0 x1 slot
1x PCIe x16 slot M.2 portovi 1x M.2 Socket 3 Čuvanje podataka - portovi AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices U.2 portovi nema SATA Express portovi nema SATA portovi 4x SATA 6Gb/s LAN 1x Realtek® RTL8111H Gigabit LAN controller Zvuk (Audio) Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio USB portovi AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor

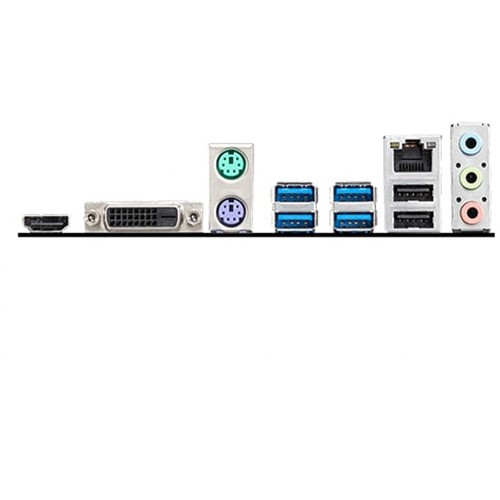

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Konektori na zadnjoj strani LAN port
HDMI
DVI-D
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A x 4
USB 2.0 Ports x 2
Audio Connectors Unutrašnji konektori 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper Operativni sistem Windows 10 Format Micro ATX Link ka proizvodjacu https://www.msi.com/Motherboard/A520M-A-PRO/Overview
