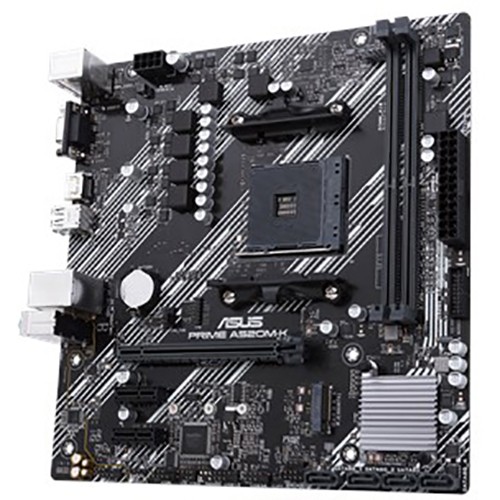

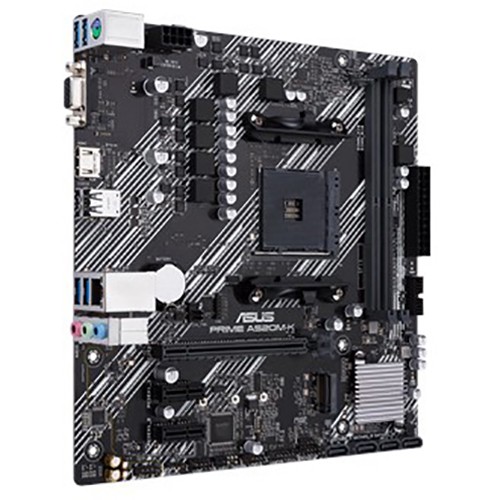

Asus PRIME A520M-K
Kretanje cena
LOKACIJE PRODAVNICA
AM4 AMD A520 (Ryzen) micro ATX motherboard M.2, 1Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A Model Asus PRIME A520M-K Matična ploča AM4 Micro ATX ...
Pročitaj ceo opis
6.700,00 DIN
Proizvođač
Čipset
Podnožje
Za procesore
Cuin
Idealno.rs Unique Identification Number
CX00955BA8
Prijavi grešku
SLIČNI PROIZVODI
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU. Podrška za grafiku - portovi 1 x D-Sub
1 x HDMI 2.1(4K@60HZ) Slotovi za proširenja 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 M.2 portovi 1x M.2 Socket 3 Čuvanje podataka - portovi Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 U.2 portovi nema SATA Express portovi nema SATA portovi 4x SATA 6Gb/s LAN Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard Zvuk (Audio) Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers USB portovi Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

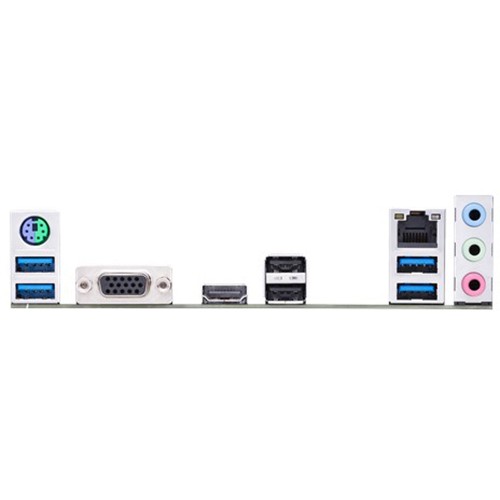

4 x USB 2.0 port(s)(4 x Type-A) Konektori na zadnjoj strani 1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s) Unutrašnji konektori 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector Posebne mogućnosti ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution

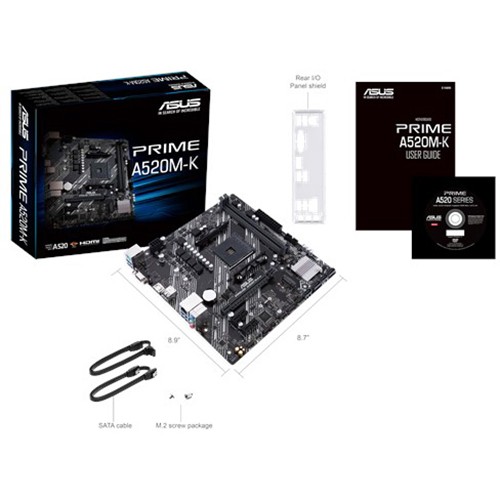

- Aluminum heatsink design Operativni sistem Windows 10 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Format Micro ATX Dodatna oprema User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s) Link ka proizvodjacu https://www.asus.com/Motherboards/PRIME-A520M-K/
