Detaljan opis proizvoda LGA1851, B860 AORUS ELITE WIFI7 ICE motherboard, Intel B860, 4×DDR5, PCIe 5.0, 4xSATA 6Gb/s, 3×M.2, USB 3.2 Gen 2, Wi-Fi 7, Bluetooth, 2.5Gb LAN, ...Pročitaj ceo opis
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .

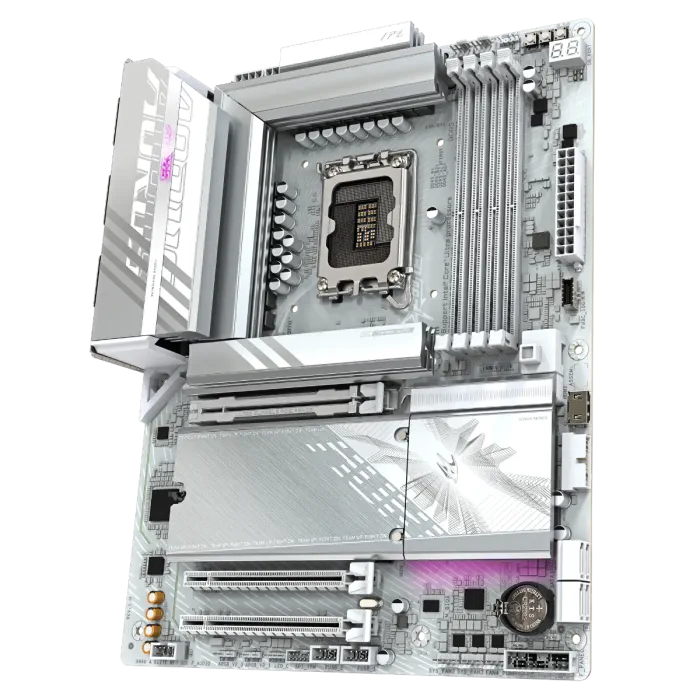

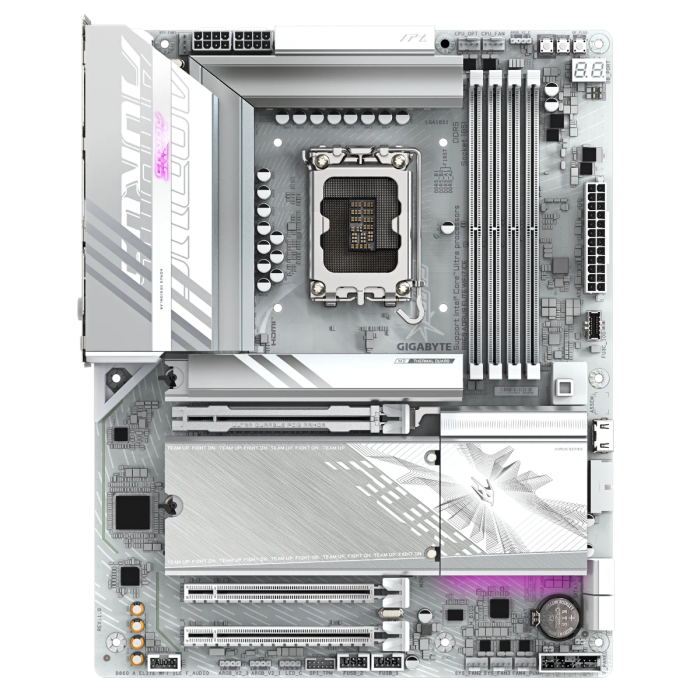

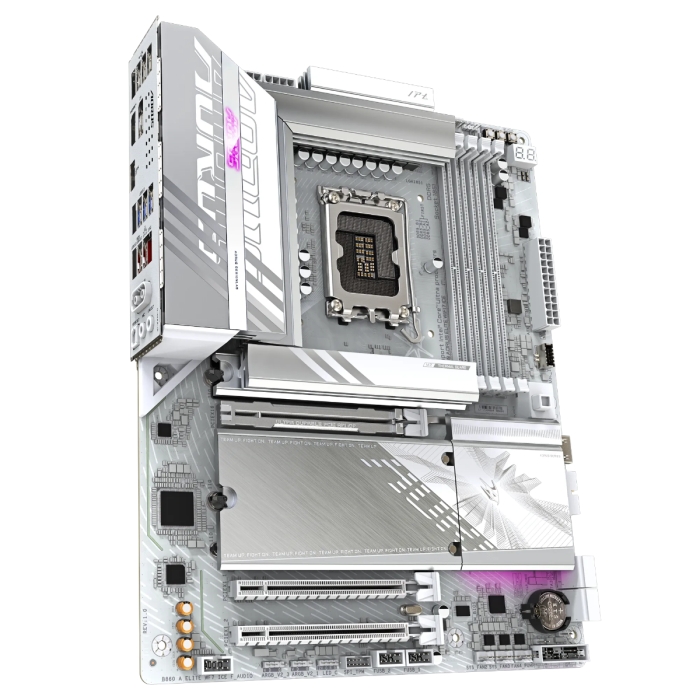

Detaljan opis proizvoda LGA1851, B860 AORUS ELITE WIFI7 ICE motherboard, Intel B860, 4×DDR5, PCIe 5.0, 4xSATA 6Gb/s, 3×M.2, USB 3.2 Gen 2, Wi-Fi 7, Bluetooth, 2.5Gb LAN, DisplayPort, USB4, HDMI, front HDMI, 7.1 Audio, ATX Model Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 DDR5 ATX Matična ploča Socket Intel Socket 1851 (LGA1851) Skup čipova (Chipset) Intel B860 Podrška za procesore Intel Core Ultra Processors Tip memorije - RAM DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Opis za memorije Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Opis za proširenja CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) Ukupno M.2 slotova 3x M.2 slot SATA portovi 4x SATA 6Gb/s Brzina LAN porta Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wi-Fi standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standardMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard Bluetooth verzija 5.4 Zvuk / Audio Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out Ukupan broj USB portova CPU:- 1 x USB4 USB Type-C port on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB headerChipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panelChipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Konektori na zadnjoj strani 1 x USB4® USB Type-C port (DisplayPort (Note))2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x DisplayPort (Note)1 x HDMI port (Note)2 x antenna connectors (2T2R)1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks Unutrašnji konektori 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x power button1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Posebne mogućnosti Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Format ATX Link ka proizvodjacu https://www.gigabyte.com/
