Parametri proizvoda

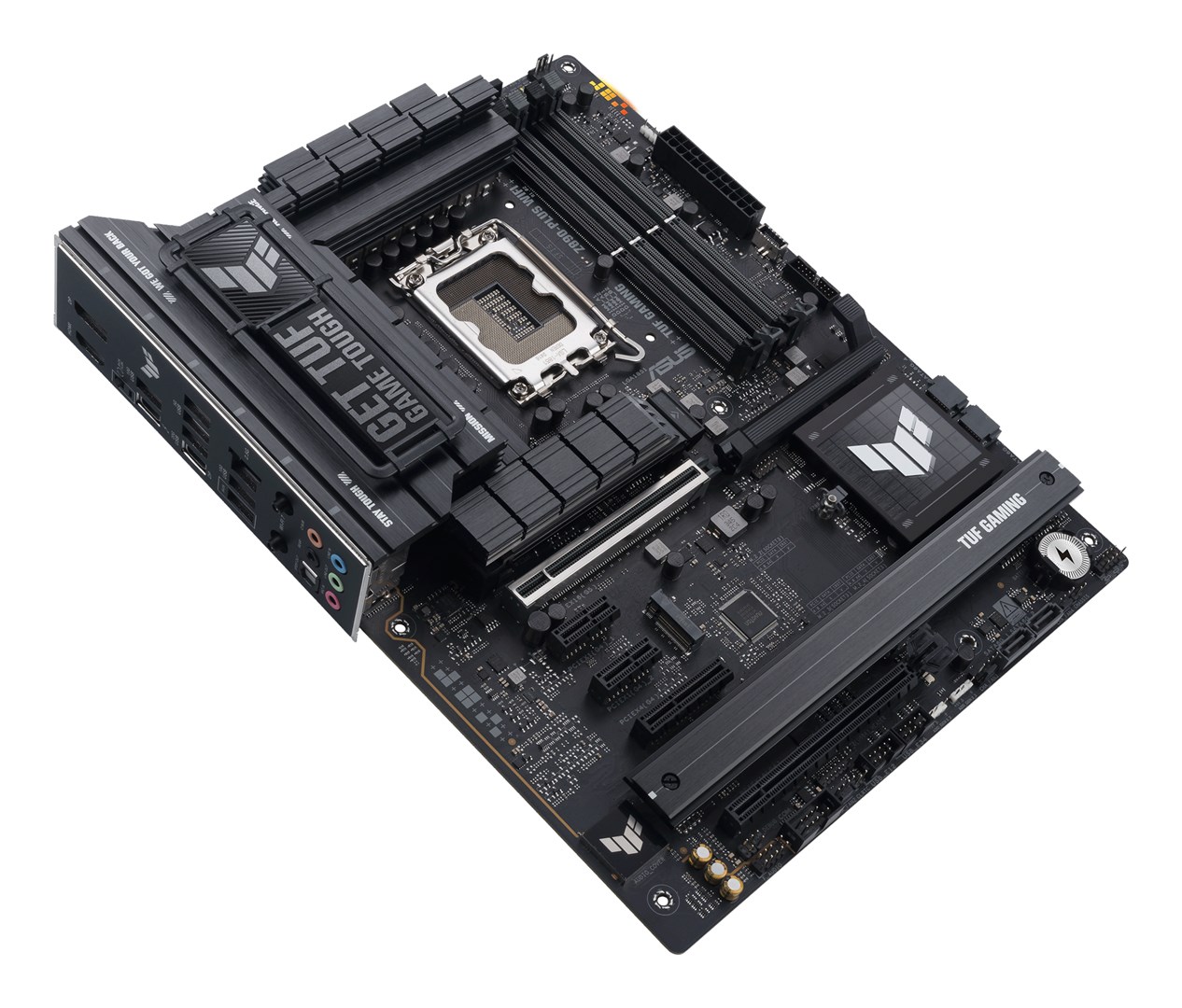

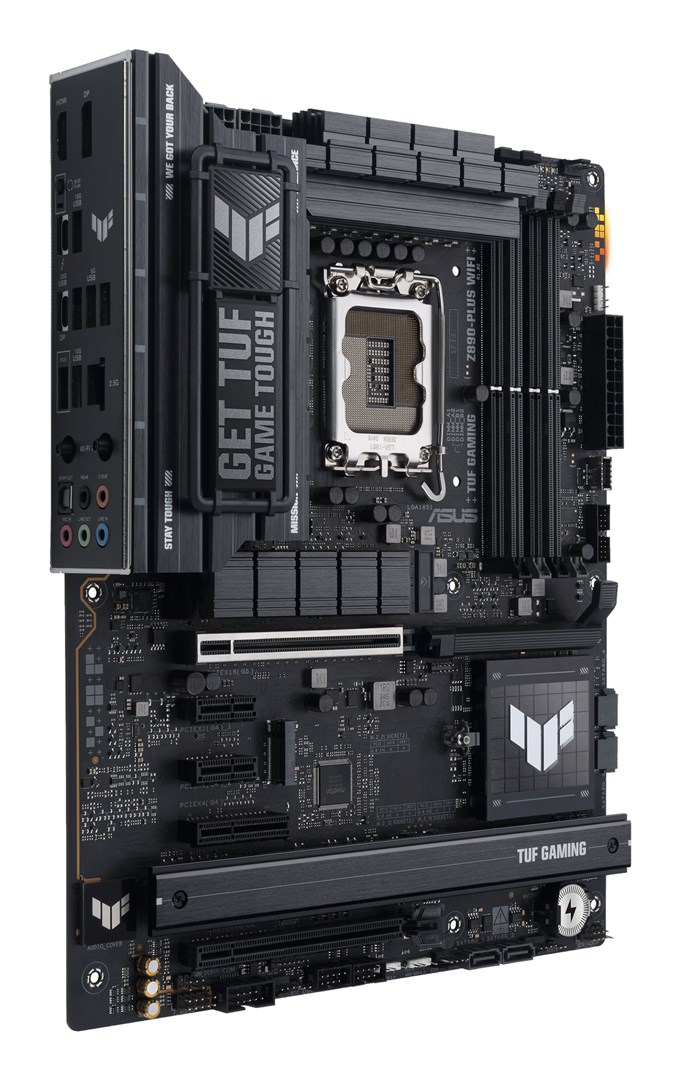

Asus TUF GAMING Z890-PLUS WIFI DDR5 LGA1851 ATX Matična ploča
Glavni parametri
Važna informacija
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .
Detaljan opis proizvoda LGA1851, TUF GAMING Z890-PLUS WIFI motherboard, Intel Z890, 4×DDR5, PCIe 5.0, 4×M.2 slots, 4×SATA 6Gb/s, USB 20Gbps, USB-C, RJ-45 (LAN) 2.5GbE, Wi-Fi 7, Bluetooth, HDMI, DisplayPort, Thunderbolt 4, 7.1 Audio, ATX Model Asus TUF GAMING Z890-PLUS WIFI DDR5 LGA1851 ATX Matična ploča Socket Intel Socket 1851 (LGA1851) Skup čipova (Chipset) Intel Z890 Podrška za procesore Intel Core Ultra Processors (Series 2) Tip memorije - RAM DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Opis za memorije 4xDIMM slots, max. 192GB, DDR5Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII) Opis za proširenja Intel Core Ultra Processors (Series 2)1 x PCIe 5.0 x16 slotIntel Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot2 x PCIe 4.0 x1 slots Ukupno M.2 slotova 4x M.2 slot SATA portovi 4x SATA 6Gb/s Brzina LAN porta 1 x Intel 2.5Gb EthernetTUF LANGuard Wi-Fi standard Wi-Fi 72x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details Bluetooth verzija 5.4 Zvuk / Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playbackAudio Features- Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuitDue to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Ukupan broj USB portova Rear USB (Total 8 ports)1 x Thunderbolt 4 port (1 x USB Type-C)1 x USB 20Gbps port (1 x USB Type-C)3 x USB 10Gbps ports (3 x Type-A)3 x USB 5Gbps ports (3 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsUSB Type-C power delivery output: max. 5V/3A Konektori na zadnjoj strani 1 x Thunderbolt 4 USB Type-C port1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)3 x USB 10Gbps ports (3 x Type-A)3 x USB 5Gbps ports (3 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button Unutrašnji konektori Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thunderbolt (USB4) header Posebne mogućnosti ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAura Sync- Addressable Gen 2 headers BIOS 256 Mb Flash ROM, UEFI AMI BIOS Format ATX Dodatna oprema Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 Q-Slide package2 x M.2 rubber packages1 x Screw package for M.2 SSD1 x TUF GAMING sticker1 x TUF GAMING removable nameplateDocumentation1 x Quick start guide Link ka proizvodjacu https://www.asus.com/
