Gigabyte B840M DS3H WIFI6 AM5 DDR5 Micro ATX Matična ploča
Kretanje cena
Ne odgovara vam cena? Čekirajte funkciju i obavestićemo vas kad cena padne.
LOKACIJE PRODAVNICA
Detaljan opis proizvoda AM5, B840M DS3H WIFI6 motherboard, AMD B840, 4×DDR5, PCIe 4.0, 4xSATA 6Gb/s, 2×M.2, USB 3.2 Gen 1 Type-A, USB Type-C, 2.5GbE LAN, Wi-Fi 6, Bluetoo...
Pročitaj ceo opis
Idealno.rs ti olakšava kupovinu na internetu i pomaže pri izboru najbolje ponude. Shopper's Mind Srbija dodelom oznake CERTIFIED SHOP® potvrđuje da je Premium prodavac pouzdan i da je internet prodavnica u skladu sa standardima EU.
Proverite troškove dostave u prodavnici
Dostupnost
Proveri dostupnost u prodavnici.
Cena je ažurirana danas od 00.03.
U svakom slučaju na stranicama prodavnice proveri da li je trenutna cena ista kao cena navedena na toj stranici.
Prikazujemo informativnu cenu prodavnice kako bismo unapredili tvoje kupovno iskustvo.
17.790,00 din
Prikazujemo informativnu cenu prodavnice kako bismo unapredili tvoje kupovno iskustvo.
18.288,00 din
Prikazujemo informativnu cenu prodavnice kako bismo unapredili tvoje kupovno iskustvo.
Parametri proizvoda

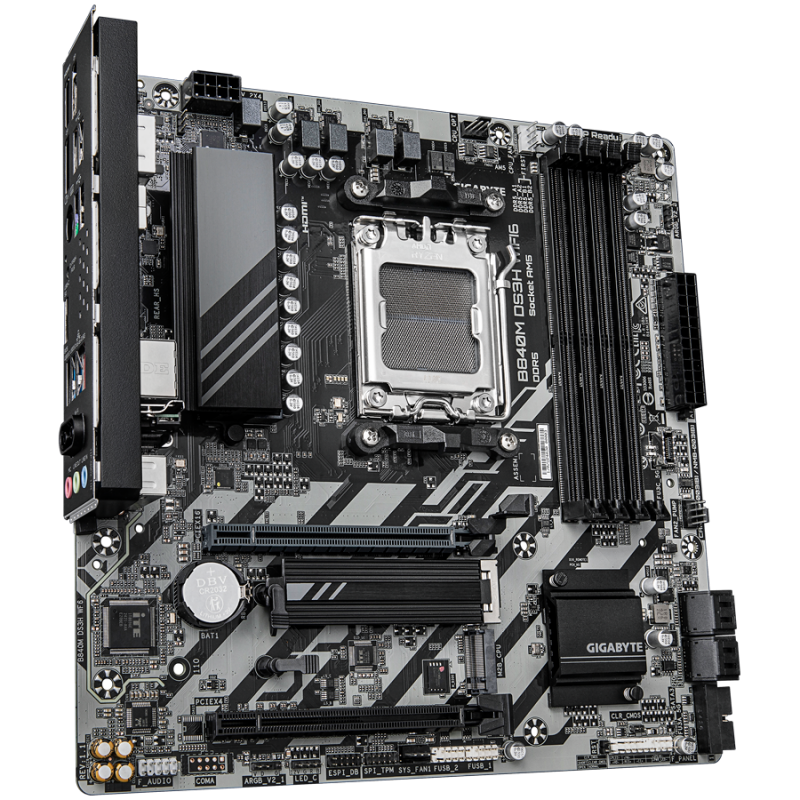

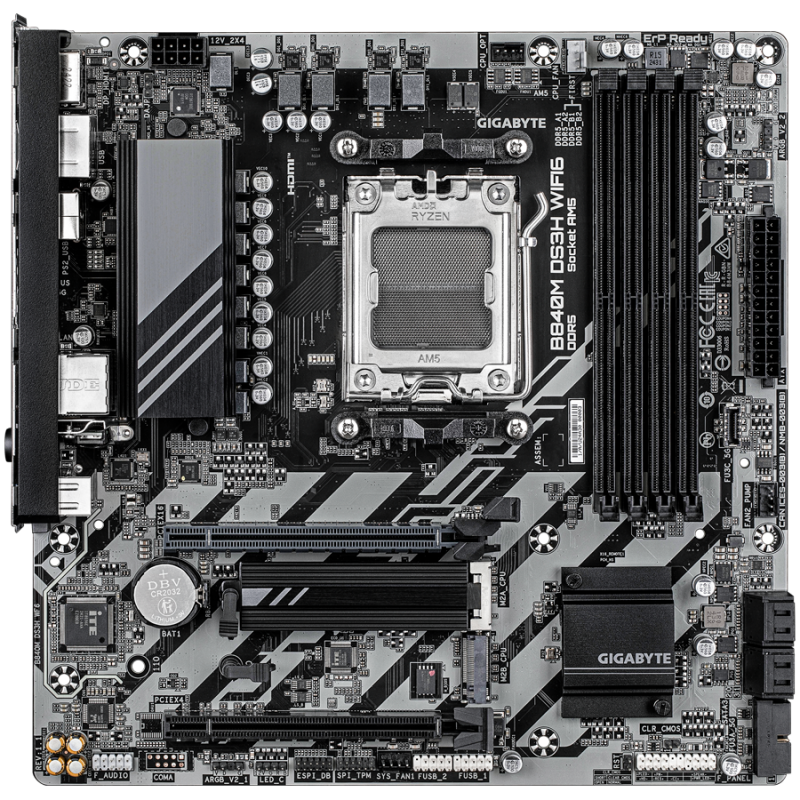

Gigabyte B840M DS3H WIFI6 AM5 DDR5 Micro ATX Matična ploča
Glavni parametri
Važna informacija
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .
Detaljan opis proizvoda AM5, B840M DS3H WIFI6 motherboard, AMD B840, 4×DDR5, PCIe 4.0, 4xSATA 6Gb/s, 2×M.2, USB 3.2 Gen 1 Type-A, USB Type-C, 2.5GbE LAN, Wi-Fi 6, Bluetooth, HDMI, DisplayPorts, 7.1 Audio, Micro ATX Model Gigabyte B840M DS3H WIFI6 AM5 DDR5 Micro ATX Matična ploča Socket AMD Socket AM5 Skup čipova (Chipset) AMD B840M Podrška za procesore AMD Ryzen 9000 Series ProcessorsAMD Ryzen 8000 Series ProcessorsAMD Ryzen 7000 Series Processors Tip memorije - RAM DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Opis za memorije Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules Opis za proširenja 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeThe PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) Ukupno M.2 slotova 2x M.2 slot SATA portovi 4x SATA 6Gb/s Brzina LAN porta Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wi-Fi standard Realtek Wi-Fi 6 RTL8851BE- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands Bluetooth verzija 5.3 Zvuk / Audio Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel Ukupan broj USB portova CPU:- 1 x USB Type-C port, with USB 3.2 Gen 1 support on the back panel- 1 x USB 3.2 Gen 1 port on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)- 4 x USB 2.0/1.1 ports available through the internal USB headers Konektori na zadnjoj strani 1 x HDMI port2 x DisplayPorts1 x Q-Flash Plus button1 x PS/2 keyboard/mouse port1 x USB Type-C port, with USB 3.2 Gen 1 support2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x antenna connectors (1T1R)1 x RJ-45 port3 x audio jacks Unutrašnji konektori 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x reset jumper1 x Clear CMOS jumper Posebne mogućnosti Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Format Micro ATX Link ka proizvodjacu https://www.gigabyte.com/
