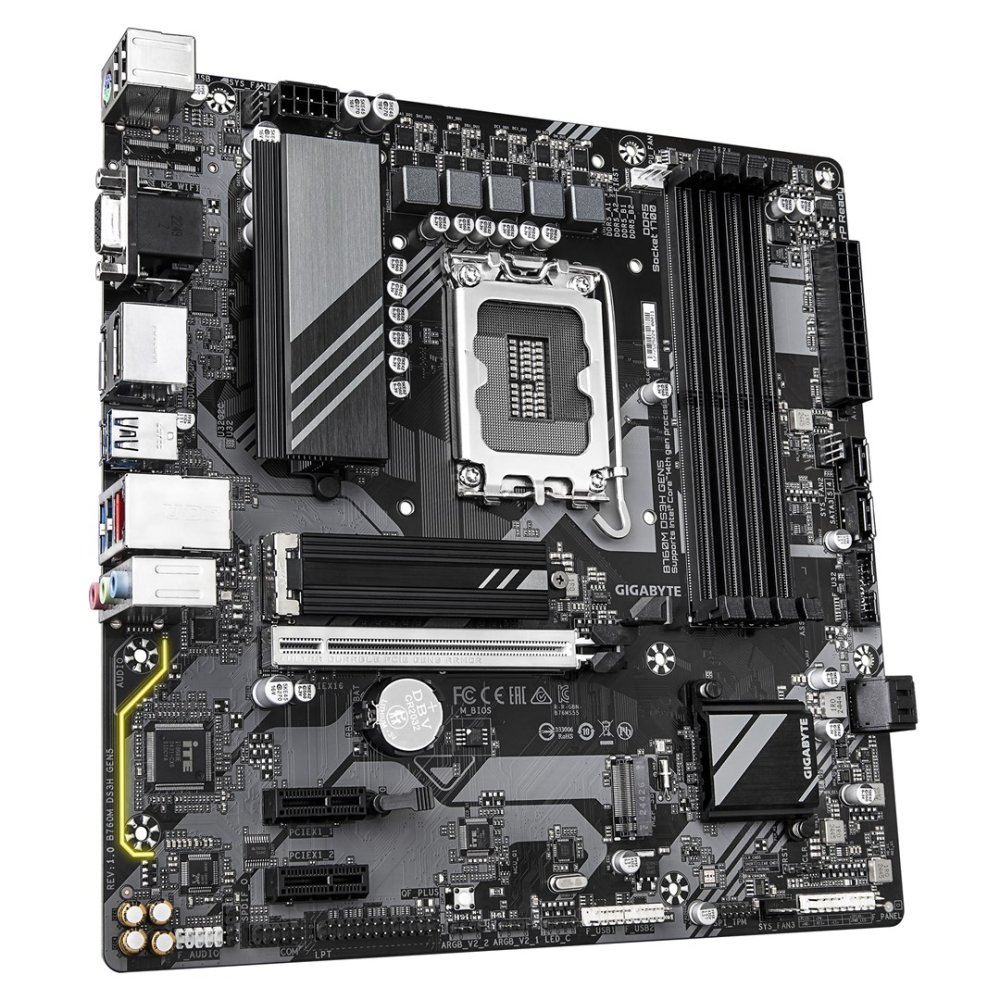

Gigabyte B760M DS3H GEN5 DDR5 Micro ATX LGA1700 Matična ploča
Kretanje cena
LOKACIJE PRODAVNICA
Detaljan opis proizvoda LGA1700, B760M DS3H GEN5 motherboard, Intel B760, 4×DDR5, PCIe 5.0, 4xSATA 6Gb/s, 2×M.2, USB 3.2 Gen 2, USB-C, RJ-45 2.5GbE LAN, D-sub, HDMI, Disp...Pročitaj ceo opis
Gigabyte B760M DS3H GEN5 DDR5 Micro ATX LGA1700 Matična ploča
Glavni parametri
Važna informacija
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .
Detaljan opis proizvoda LGA1700, B760M DS3H GEN5 motherboard, Intel B760, 4×DDR5, PCIe 5.0, 4xSATA 6Gb/s, 2×M.2, USB 3.2 Gen 2, USB-C, RJ-45 2.5GbE LAN, D-sub, HDMI, DisplayPort, 7.1 Audio, Micro ATX Model Gigabyte B760M DS3H GEN5 DDR5 Micro ATX LGA1700 Matična ploča Socket Intel Socket 1700 (LGA1700) Skup čipova (Chipset) Intel B760 Podrška za procesore LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors Tip memorije (RAM) DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Podrška za memorije 14th and 13th Generation Intel Core i9/i7 Processors:Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:Support for DDR5 4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Podrška za grafiku - portovi Integrated Graphics Processor-Intel HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200 60Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version and HDCP 2.3.Support for native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60HzSupport for DisplayPort 1.2 version and HDCP 2.3- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60Hz Slotovi za proširenja CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 M.2 portovi 2x M.2 Socket 3 Čuvanje podataka - portovi CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices SATA portovi 4x SATA 6Gb/s LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Zvuk (Audio) Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out USB portovi Chipset:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers Konektori na zadnjoj strani 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port (Note)1 x HDMI port (Note)2 x DisplayPorts (Note)3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks Unutrašnji konektori 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Posebne mogućnosti Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Operativni sistem Windows 10; Windows 11 BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Format Micro ATX Link ka proizvodjacu https://www.gigabyte.com/
