Detaljan opis proizvoda AM5, X870 AORUS ELITE X3D ICE motherboard, AMD X870, 4×DDR5, PCIe 5.0 x16, 2xSATA 6Gb/s, 4×M.2, USB 3.2 Gen 2x2, USB Type-C, LAN 5GbE, Wi-Fi 7, Bl...Pročitaj ceo opis
Ove informacije se prikupljaju sa zvaničnih stranica proizvoda. Proverite detalje pre nego što pređete na konačnu kupovinu. Ako primetite problem, možete ga prijaviti ovde .

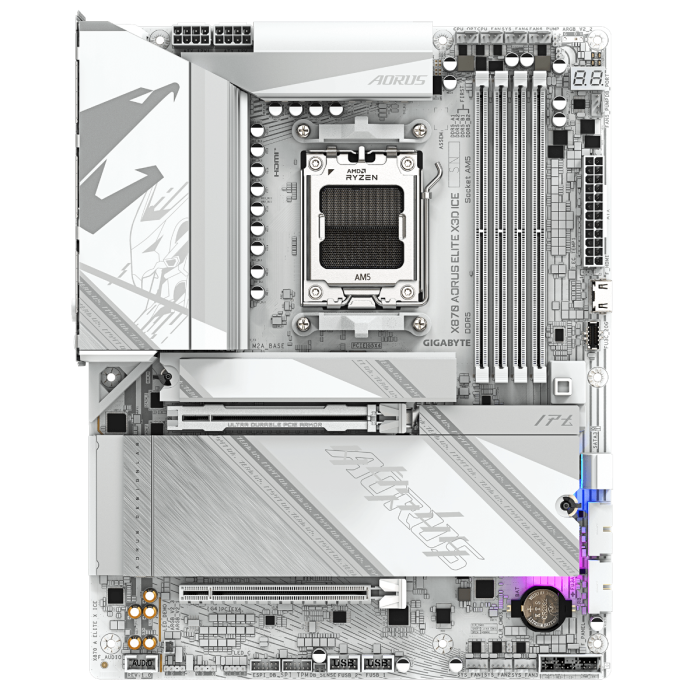

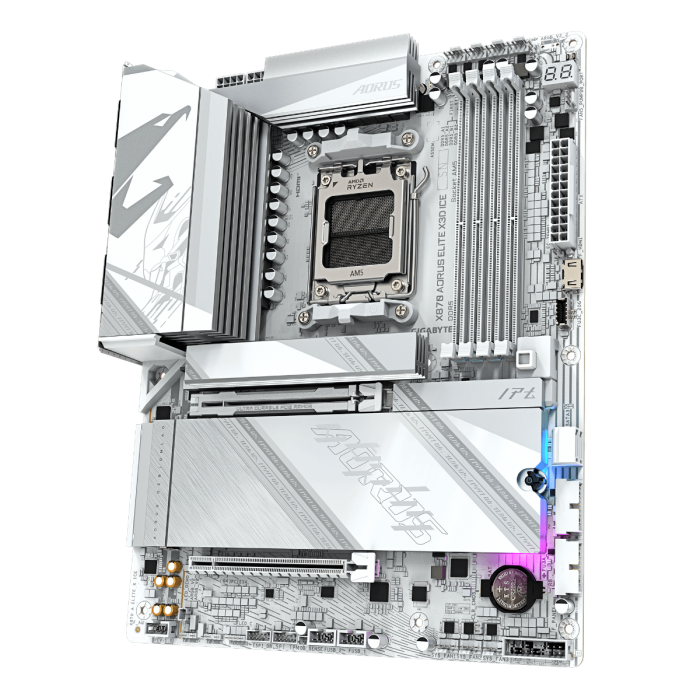

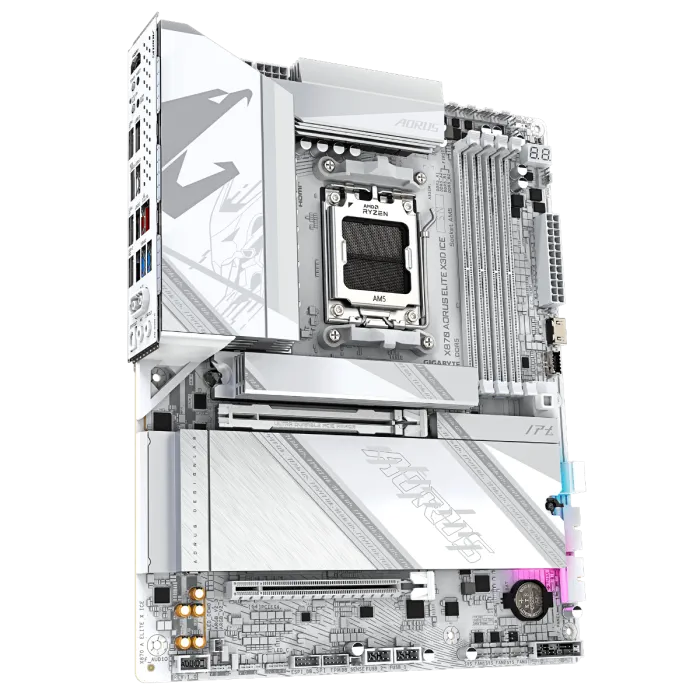

Detaljan opis proizvoda AM5, X870 AORUS ELITE X3D ICE motherboard, AMD X870, 4×DDR5, PCIe 5.0 x16, 2xSATA 6Gb/s, 4×M.2, USB 3.2 Gen 2x2, USB Type-C, LAN 5GbE, Wi-Fi 7, Bluetooth, USB4, HDMI, ALC1220 7.1 Audio, ATX Model Gigabyte X870 AORUS ELITE X3D ICE AM5 DDR5 ATX Matična ploča Socket AMD Socket AM5 Skup čipova (Chipset) AMD X870 Podrška za procesore AMD Ryzen 9000 Series ProcessorsAMD Ryzen 8000 Series ProcessorsAMD Ryzen 7000 Series Processors Tip memorije (RAM) DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Podrška za memorije Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules Podrška za grafiku - portovi Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240HzSupport for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version, HDCP 2.3, and HDR.Support for native HDMI 2.1 TMDS compatible ports.- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30HzSupport for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.) Slotovi za proširenja 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeThe PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. M.2 portovi 4x M.2 Socket 3 Čuvanje podataka - portovi 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsThe M2B_CPU connector shares bandwidth with the ASMedia USB4 controller.When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0 and RAID 1 support for SATA storage devices SATA portovi 2x SATA 6Gb/s LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Bežična mreža Qualcomm Wi-Fi 7 QCNCM865- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.4 Zvuk (Audio) Realtek ALC1220 CODECThe back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out USB portovi CPU+ASMedia USB4 controller:- 2 x USB4 USB Type-C ports on the back panelCPU:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support- 1 x USB 2.0/1.1 port on the back paneChipset:- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 4 x USB 2.0/1.1 ports on the back panelChipset+2 USB 3.2 Gen 1 Hubs:- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Konektori na zadnjoj strani 1 x HDMI port (Note)1 x power button1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button2 x USB4 USB Type-C ports (DisplayPort (Note))1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports1 x USB 2.0/1.1 port1 x RJ-45 port2 x antenna connectors (2T2R)1 x optical S/PDIF Out connector2 x audio jacks Unutrašnji konektori 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headers1 x noise detection header Posebne mogućnosti Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlNoise detection Operativni sistem Windows 11 BIOS 1 x 512 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Format ATX Link ka proizvodjacu https://www.gigabyte.com/
