MSI Napajanje MAG A850GL PCIE5, 850W

MSI Napajanje MAG A850GL PCIE5, 850W

Osnovne karakteristike:
• Oblik (Form factor): ATX (PS2)
• Izlazna snaga: 850 W
• Standard: ATX v3.0
• Sertifikat: 80 Plus Gold
• Efikasnost: do 90%
• PFC (Power Factor Correction): Active PFC

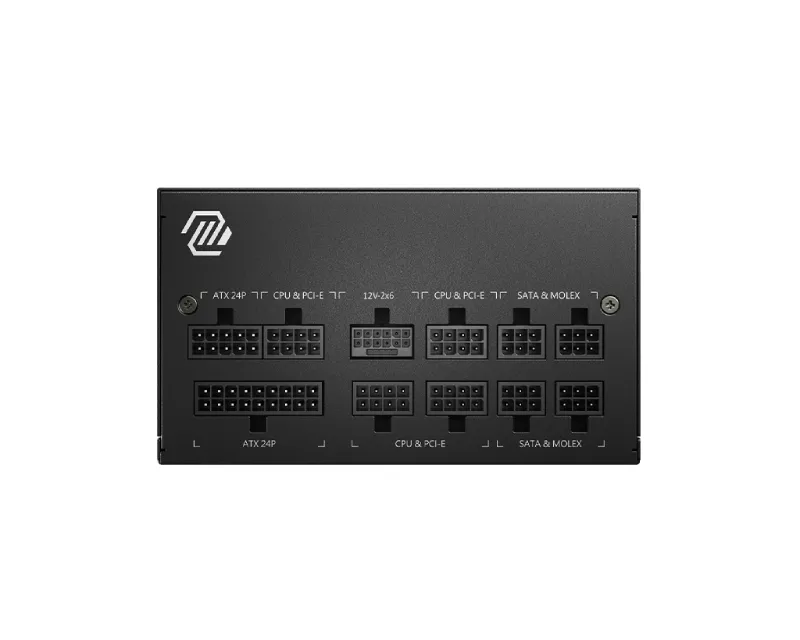

Priključci:
• 20+4 pin ATX: 1x
• 8(4+4) pin EPS 12V: 2x
• PCI-e 6+2 pin: 4x
• PCI-e 16 (12+4) pin: 1x
• SATA: 8x
• Molex 4 pin: 4x

Naponske grane:
• +3.3V: 20 A
• +5V: 20 A
• +12V: 0.3 A
• +12V1: 70.5 A
• +5Vsb: 2.5 A

Zaštite:
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OPP (Over Power Protection)
• OTP (Over Temperature Protection)
• SCP (Short-Circuit Protection)
• OCP (Over Current Protection)

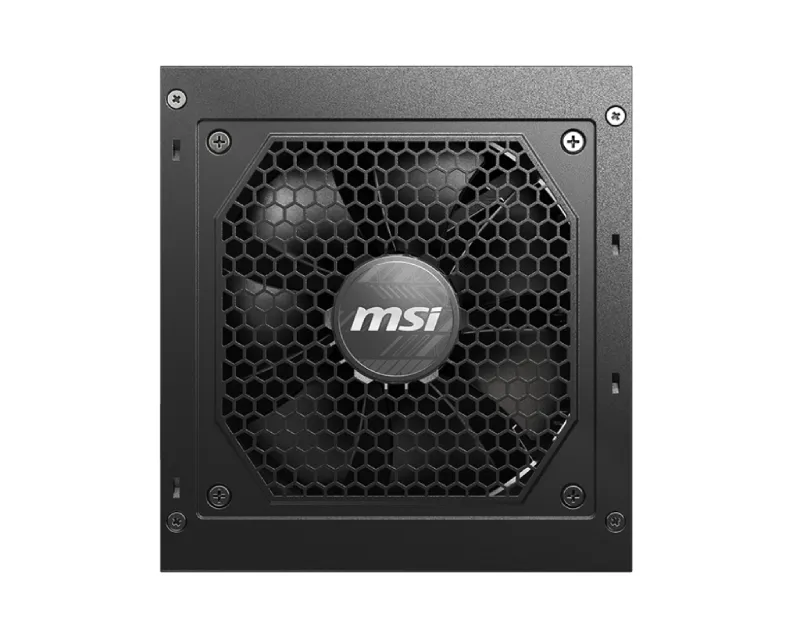

Hlađenje:
• Aktivno, ventilator prečnika 120 mm

Dimenzije:
• 140 x 150 x 86 mm
