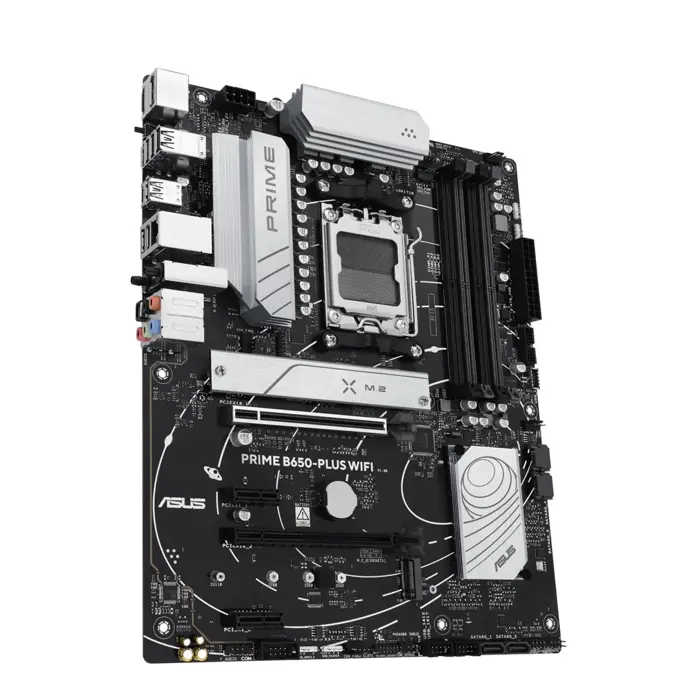

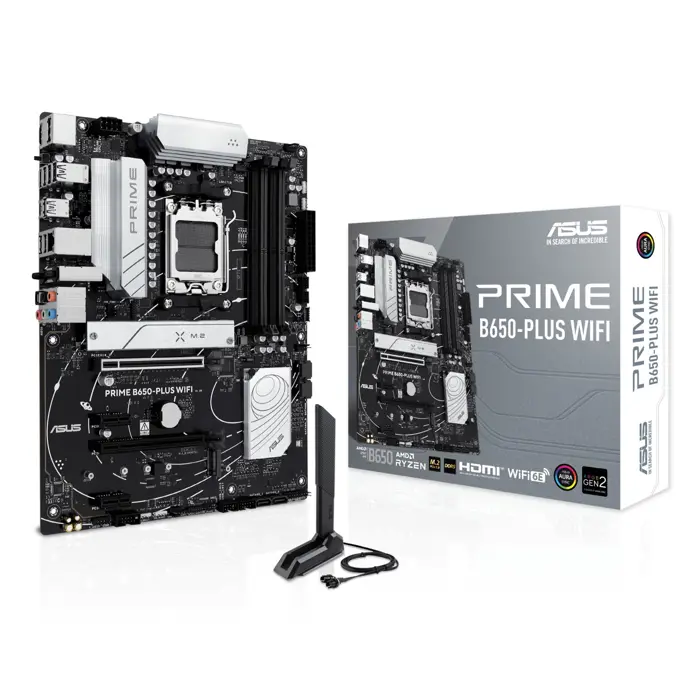

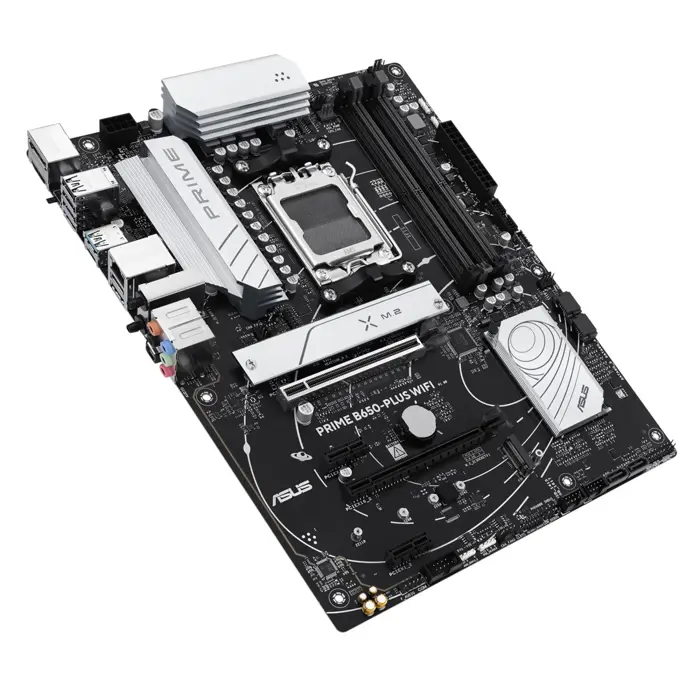

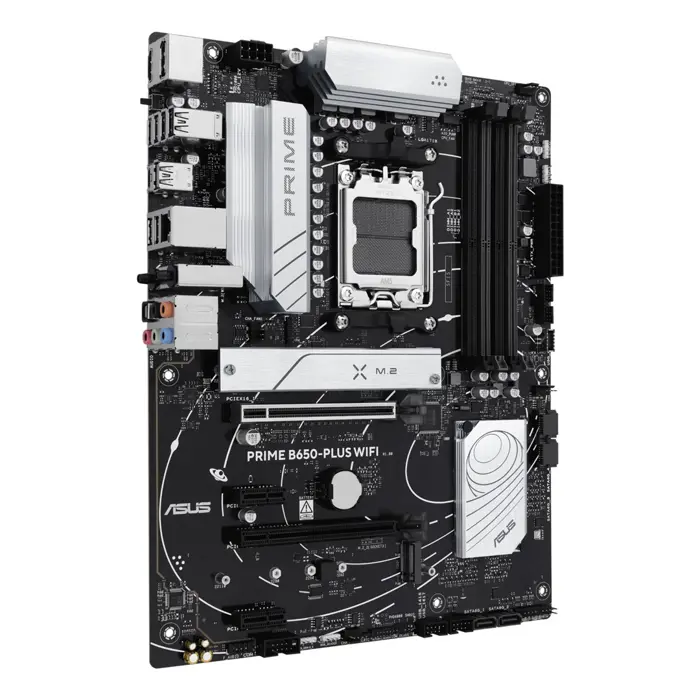

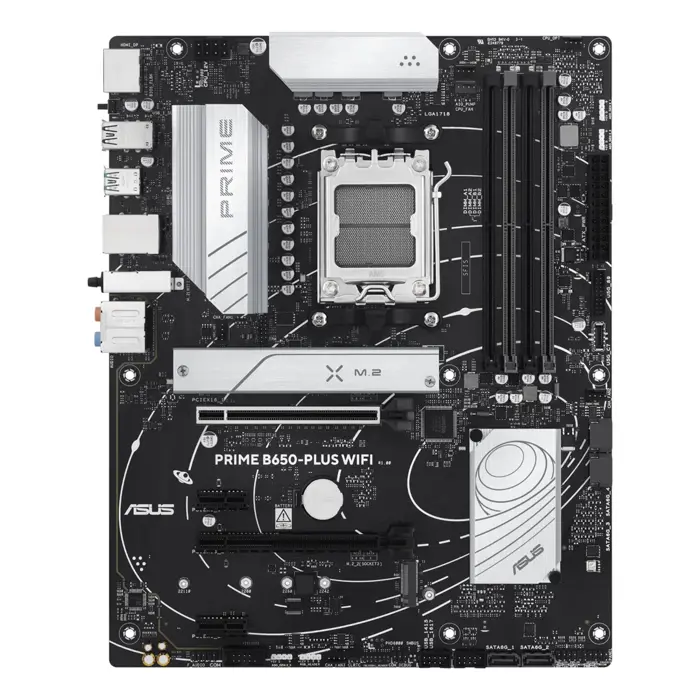

AM5, PRIME B650-PLUS WIFI Matična ploča, AMD B650, 4xDDR5, PCIe 4.0, SATž, 1xM.2 PCIe 5.0, 1xM.2 PCIe 4.0, Wi-Fi 6E, Bluetooth. 2.5Gb, USB 3.2 Gen 2, DisplayPort, HDMI, ATX Model Asus PRIME B650-PLUS WIFI AM5 DDR5 ATX Matična ploča Procesorsko podnožje (Socket) AMD Socket AM5 Skup čipova (Chipset) AMD B650 Podrška za procesore AMD Ryzen 9000 & 8000 & 7000 Tip memorije (RAM) DDR5 Broj memorijskih slotova 4x 288-Pin DDR5 Podrška za memorije 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO)OptiMem IISupported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Podrška za grafiku - portovi 1 x DisplayPort1 x HDMI portGraphics specifications may vary between CPU types.Supports max. 8K 60Hz as specified in DisplayPort 1.4.Supports 4K 60Hz as specified in HDMI 2.1. Slotovi za proširenja AMD Ryzen 9000 & 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD B650 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x1 slots M.2 portovi 2x M.2 Socket 3 Čuvanje podataka - portovi Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)AMD B650 Chipset4 x SATA 6Gb/s portsAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.Specifications vary by CPU types. SATA portovi 4x SATA 6Gb/s LAN 1 x Realtek 2.5Gb Ethernet Bežična mreža Wi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band Bluetooth Bluetooth v5.3 Zvuk (Audio) Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers USB portovi Rear USB (Total 8 ports)4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C)2 x USB 5Gbps ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Konektori na zadnjoj strani 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C)2 x USB 5Gbps ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 xWi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button Unutrašnji konektori Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt (USB4) header Posebne mogućnosti ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headersASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode Operativni sistem Windows 10; Windows 11 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Format ATX Dodatna oprema Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Wi-Fi moving antenna1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x User guide Link ka proizvodjacu https://www.asus.com/
