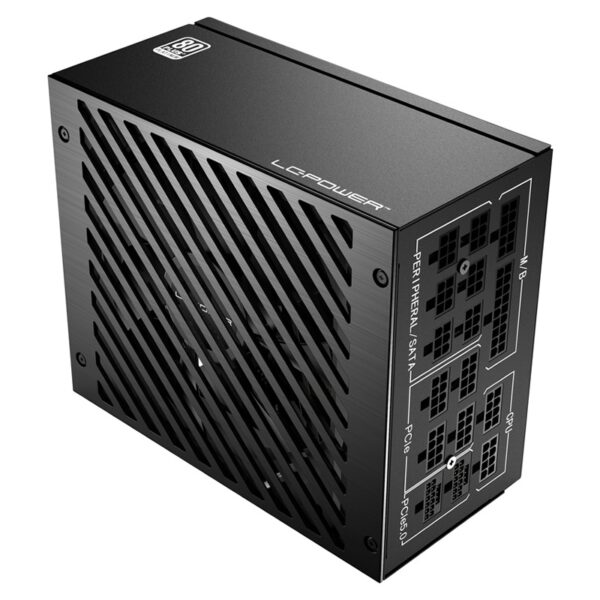

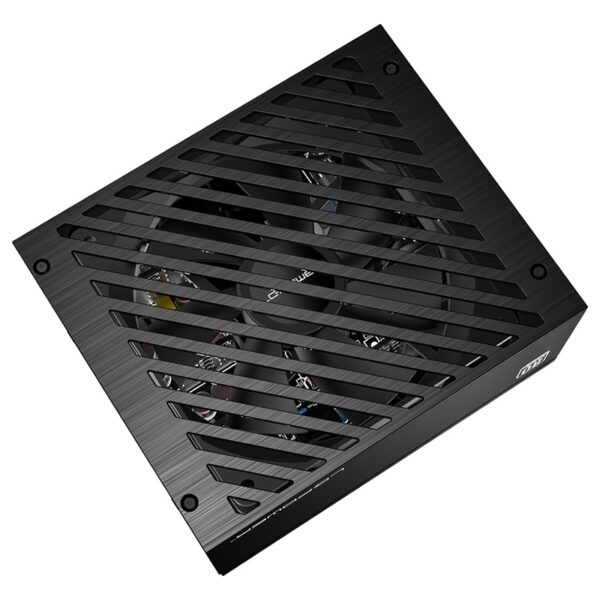

LC Power LC850P V3.0 80 PLUS Platinum PCIe 5.0

ATX standard ATX V3.0
Connectors
20+4 pin mainboard 1x 650 mm
4+4 pin mainboard 12 V (8 pin EPS) 2x 650 mm
4 pin mainboard 12 V 1x 800 mm
PCI-Express 5.0 12+4 pin 1x 600 mm
IMPORTANT: Please connect only one graphics card up to 600 W to the power supply.
PCI-Express 6+2 pin 6x overall: (2x 675 mm / 2x 750 mm)
SATA 10x overall: (3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)
PATA 5x overall:(1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm)
FDD –
Fan 135 mm
PFC active
Dimension PSU: 86 x 180 x 150 mm
Weight (product / overall) 2.92 / 3.25 kg
Power rating: 850 W
+3,3 V 20 A
+5 V 20 A
max. combined 100 W
+12 V 70.8 A
max. combined 850 W
Certified 80 PLUS® PLATINUM
Efficiency up to 92 %
