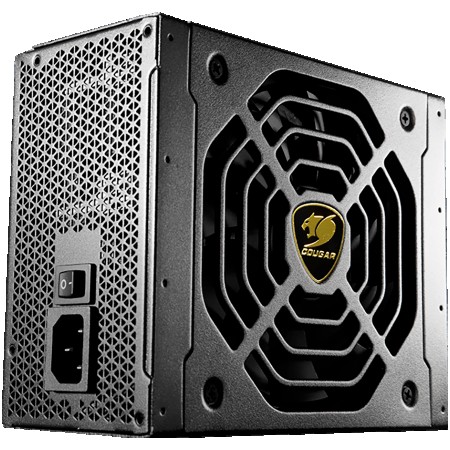

COUGAR GEX 1050W 31GE105003P01 80plus Gold Fully modular GEX1050

Power Device Type
Power Supply
Power Device Location
Plug-in-module
Form Factor
ATX
Input Voltage
AC 100-240 V
Input Frequency
4763 Hz
Rated Input Current
13 A
Maximum Output Power
1050 W
Circuit Protection
Over Voltage
Undervoltage
Over Temperature
Short Circuit Protection
Over Power
Overcharge
Modular Power Supply
Yes
Power Adapter and Power Supply Features
Active PFC
Low noise
80 Plus Certification
80 Plus Gold
Efficiency
92%
+3.3V
20 A (60 W)
+5V
20 A (60 W)
+12V
87.5 A (1050 W)
-12V
0.3 A (3.6 W)
+5VSB
3 A (15 W)
20+4-pin Main Connector
1
48-pin +12V Power Connector
1
8-pin +12V Power Connector
1
4-pin Peripheral Power Connector
4
S-ATA Connector
12
68-pin PCI Express Connector
8
Maximum Fans Supported Quantity
1
Fan Diameter
135 mm
External Color
Silver
Depth (mm)
180 mm
Height (mm)
86 mm
Width (mm)
150 mm
Warranty Products Returnable
Yes
Warranty Term (month)
60 month(s)
Warranty validation Criteria
Serial Number
Pack Length (mm)
331 mm
Pack Width (mm)
229 mm
Pack Height (mm)
107 mm
Pack Weight Brutto (kg)
3.59 kg
Pack Weight Netto (kg)
2.09 kg
Pieces in pack
1
Box Length (mm)
567 mm
Box Width (mm)
346 mm
Box Height (mm)
255 mm
Box Weight Brutto (kg)
18.5 kg
Packs in Box
5
Package Type
Box
EAN Code
4710483772207
