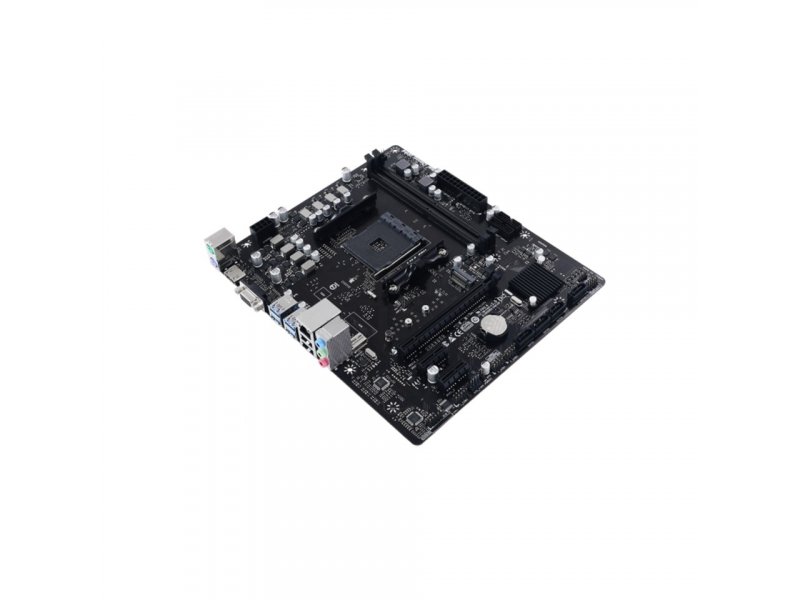

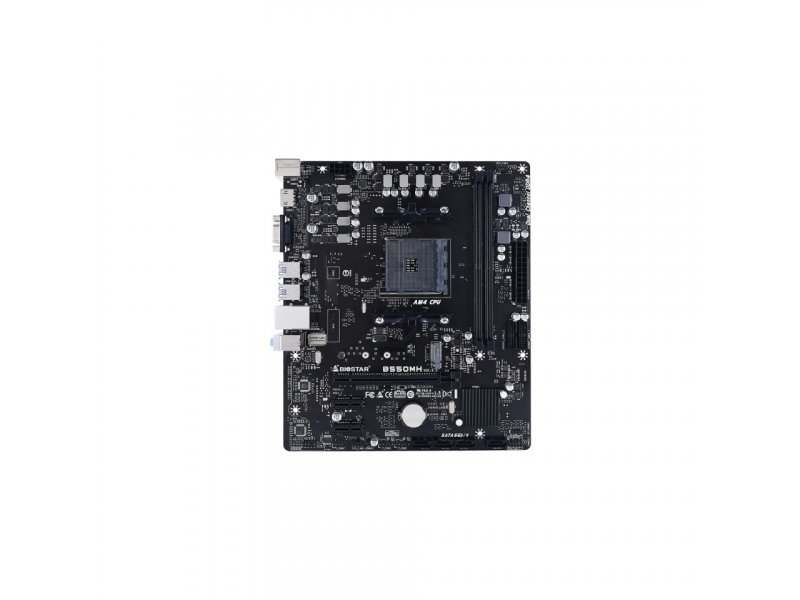

MB AM4 Biostar B550MH 2xDDR4/M.2/HDMI/VGA
Kretanje cena
LOKACIJE PRODAVNICA
ChipsetAMD B550CPU SUPPORTSocket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processorsSupport for future AMD Ryzen processor...
Pročitaj ceo opis
10.999,00 DIN
Proizvođač
Čipset
Format
Podnožje
Za procesore
Cuin
Idealno.rs Unique Identification Number
CX00ADA7CF
Prijavi grešku
SLIČNI PROIZVODI
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.MEMORY4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.INTEGRATED VIDEOBy CPU model
Supports DX12
Supports HDCPSTORAGE4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIe-SATA1):
The bandwidth is depended on CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.LANRealtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge ProtectionAUDIO CODECALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)USB8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)EXPANSION SLOT1 x PCIe 4.0/ 3.0 x 16 Slot:
Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only)
Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only)
2 x PCIe 3.0 x 1 Slot

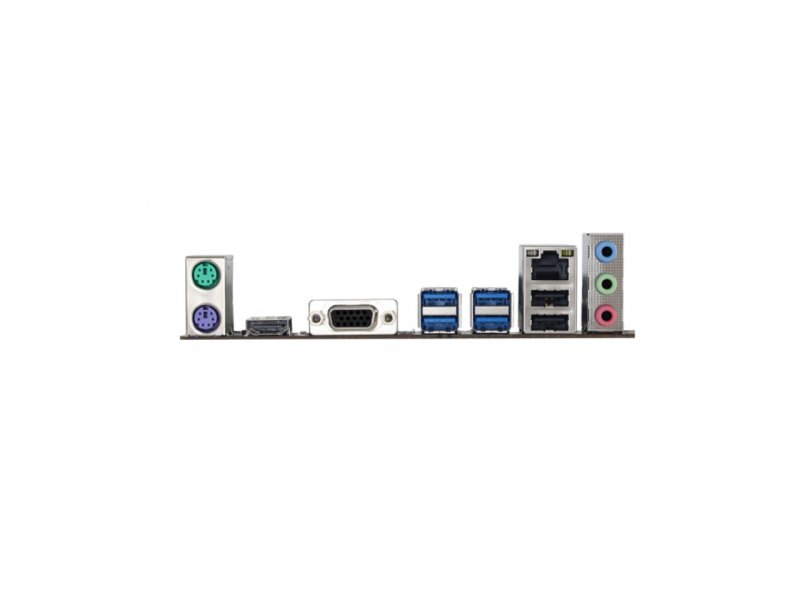

* According to different CPUs will have different speeds.REAR I/O1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio JackINTERNAL I/O4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port HeaderH/W MONITORINGCPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage MonitoringDIMENSIONMicro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )OS SUPPORTSupports Windows 10(64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without noticeBUNDLE SOFTWARE
BullGuardACCESSORIES2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick GuideFEATURESSupports 100% Solid capacitor
A.I FAN
PCIe M.2 4.0
